Buick
>>
2011
>>
Lucerne V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compressor/Pump, Suspension Control
Compressor/Pump, Suspension Control

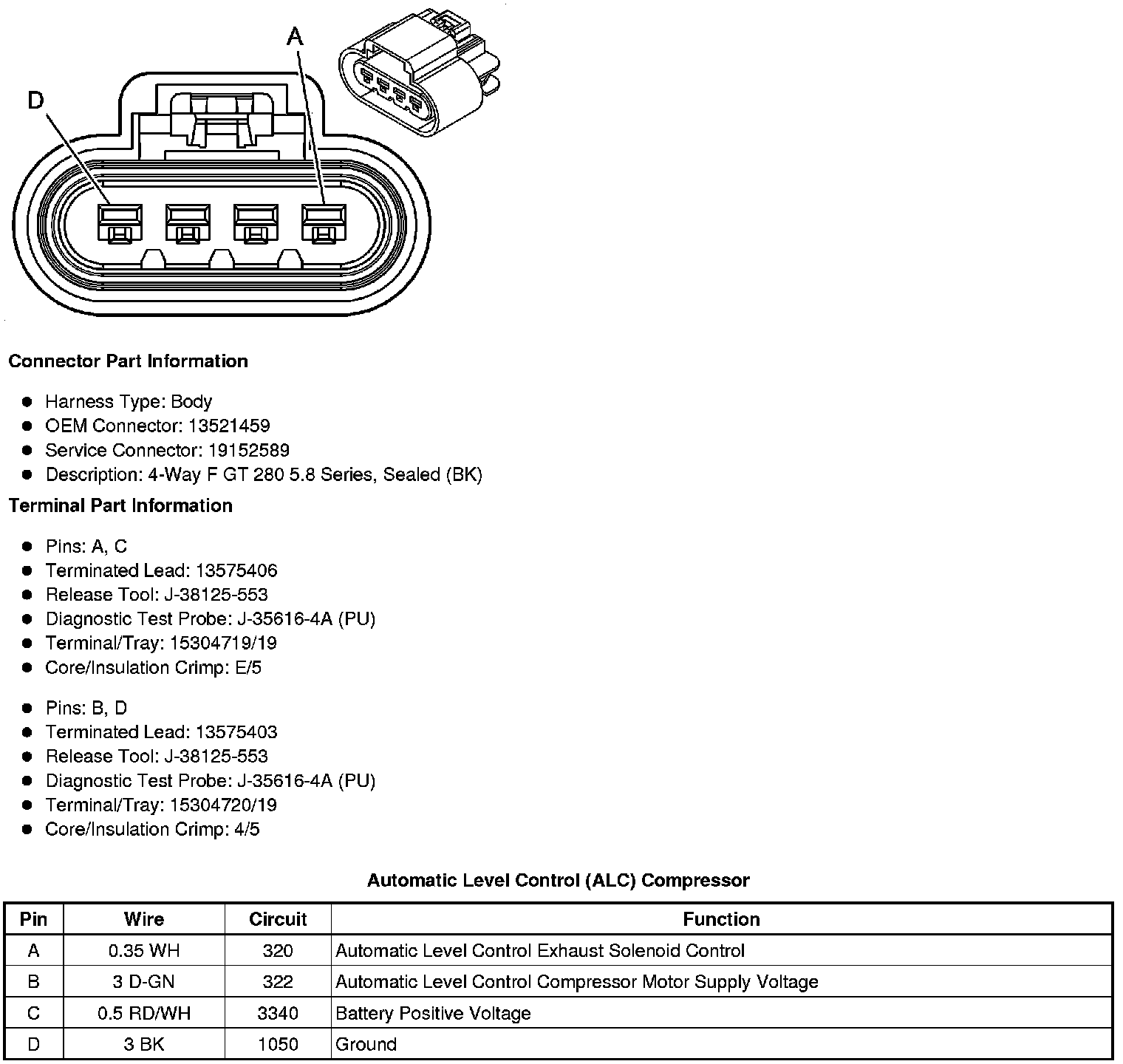

Component Connector End Views
Automatic Level Control (ALC) Compressor
