Home >> Buick >> 2011 >> LaCrosse FWD L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Diagrams

Air Flow Meter/Sensor: Diagrams

Component Connector End Views

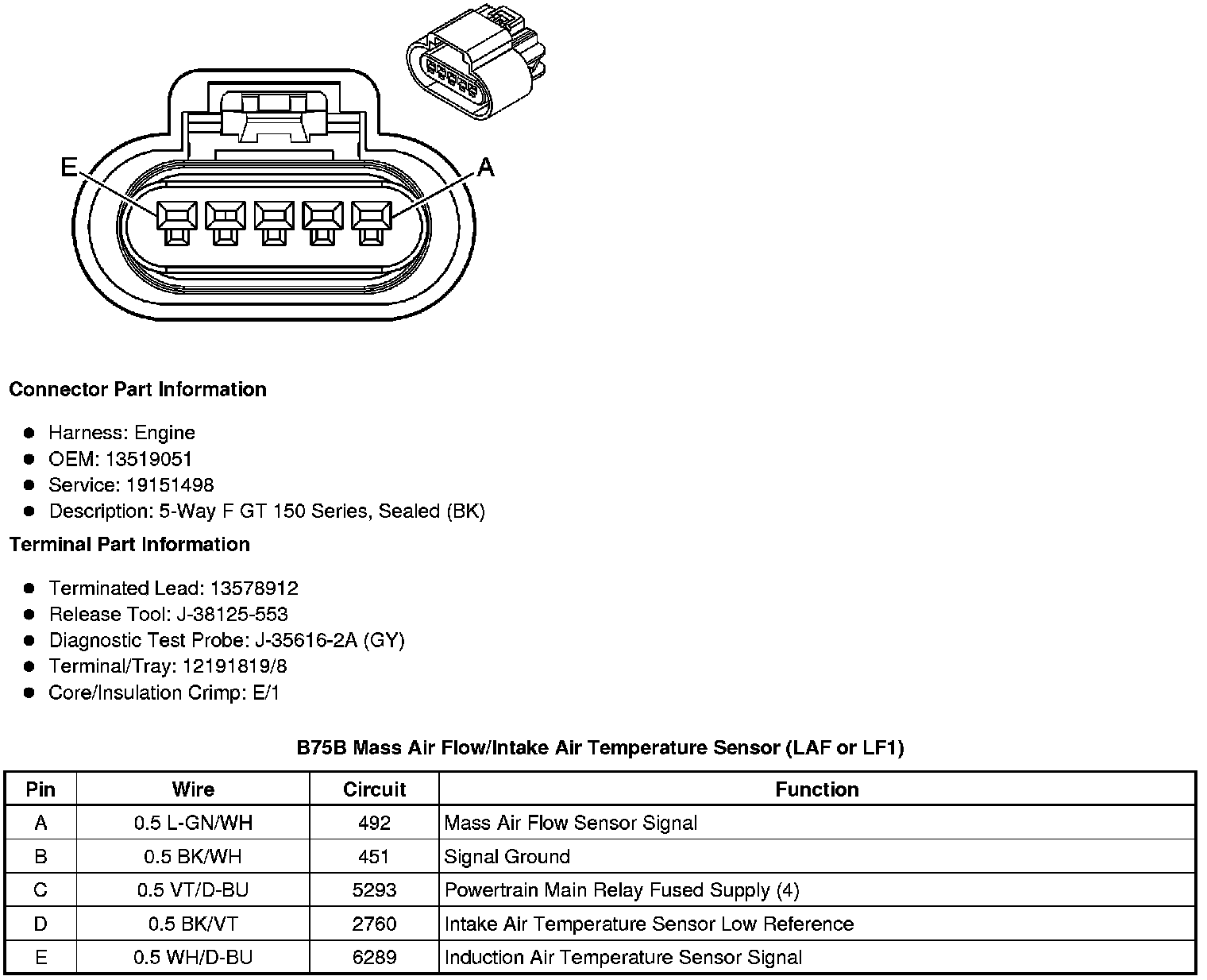

B75B Mass Air Flow/Intake Air Temperature Sensor (LAF or LF1)

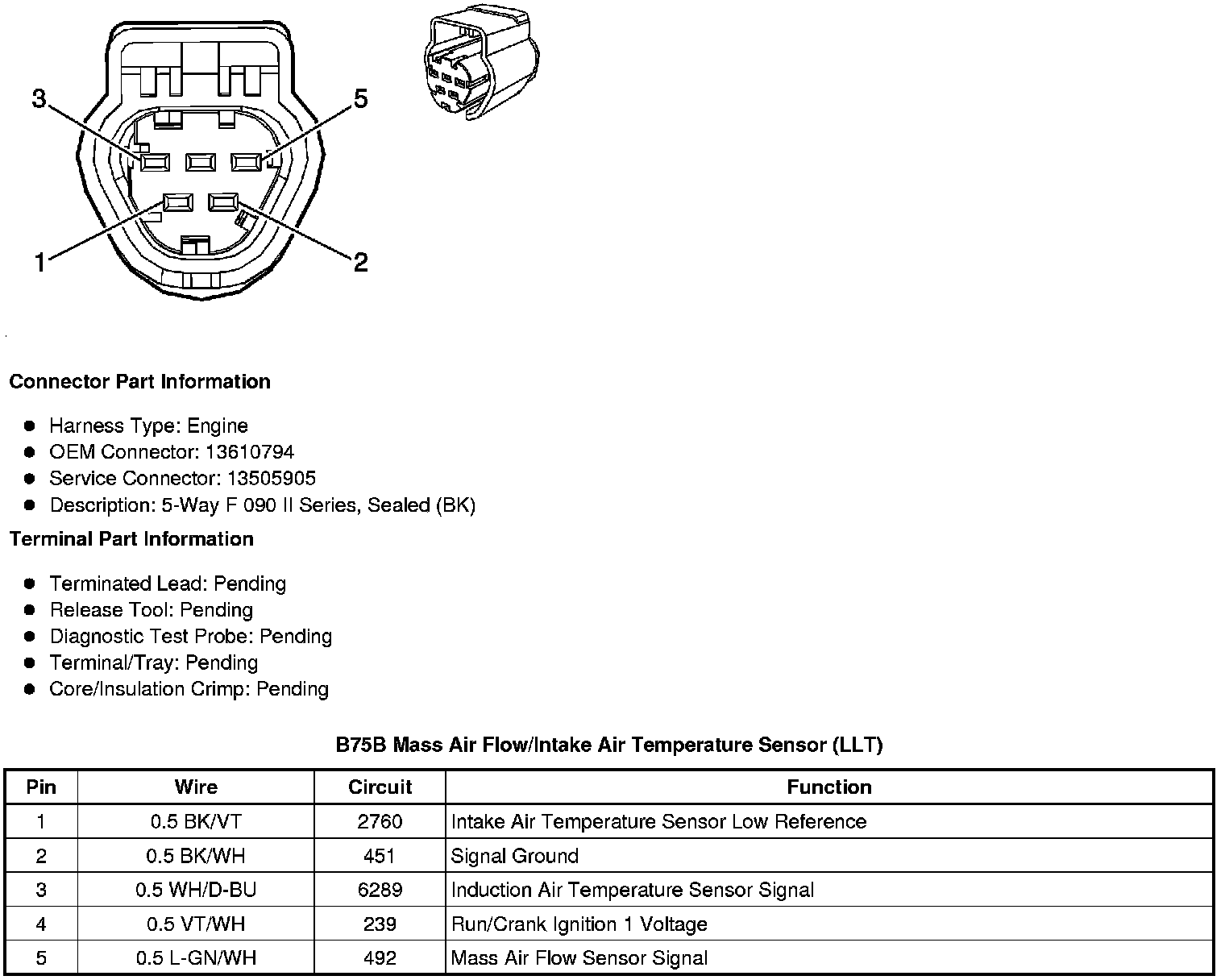

B75B Mass Air Flow/Intake Air Temperature Sensor (LLT)
