Home >> Buick >> 2011 >> LaCrosse FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Control Module

Parking Assist Control Module




Component Connector End Views

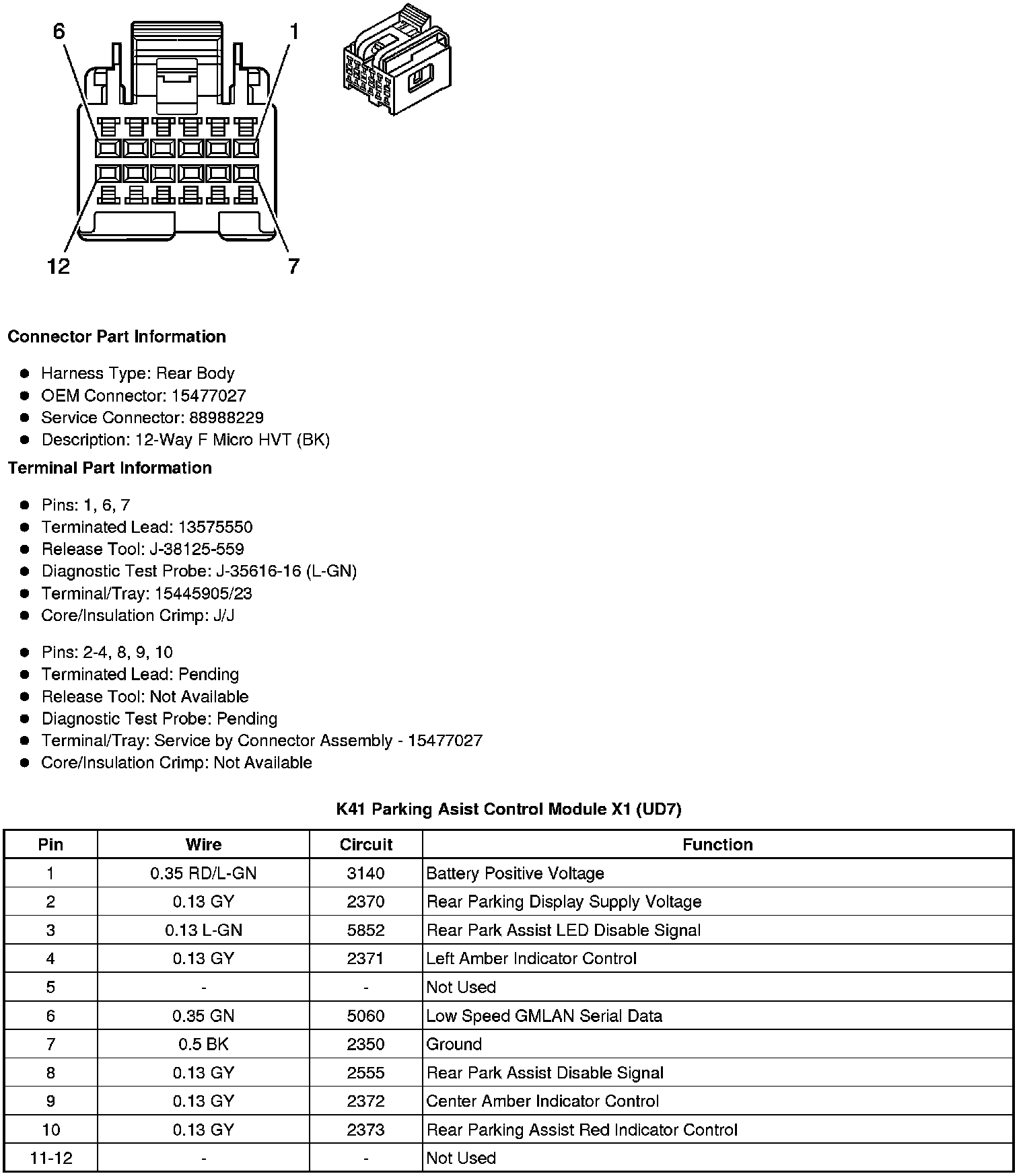

K41 Parking Asist Control Module X1 (UD7)

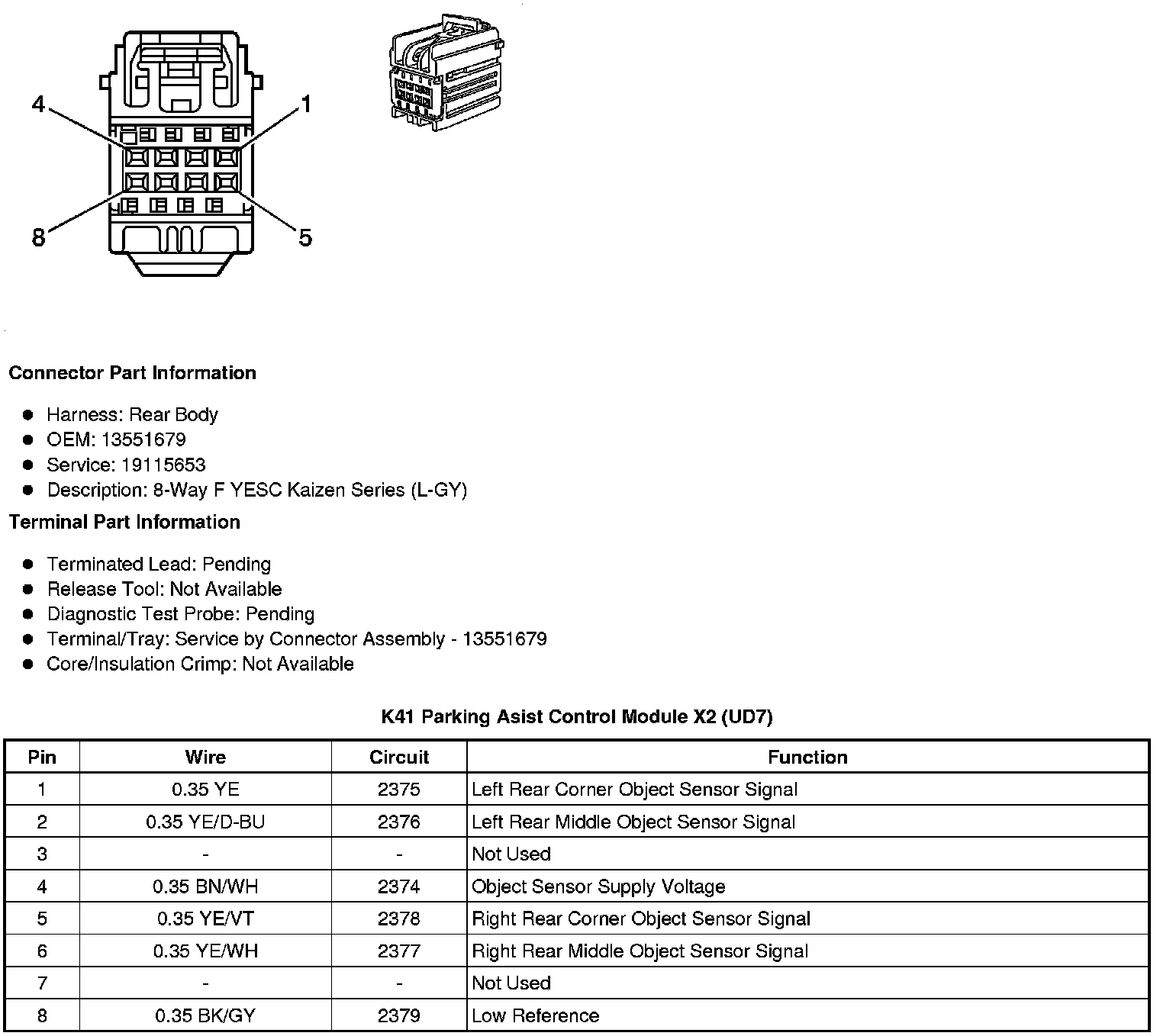

K41 Parking Asist Control Module X2 (UD7)
