Memory Positioning Switch
Memory Positioning Switch
Component Connector End Views

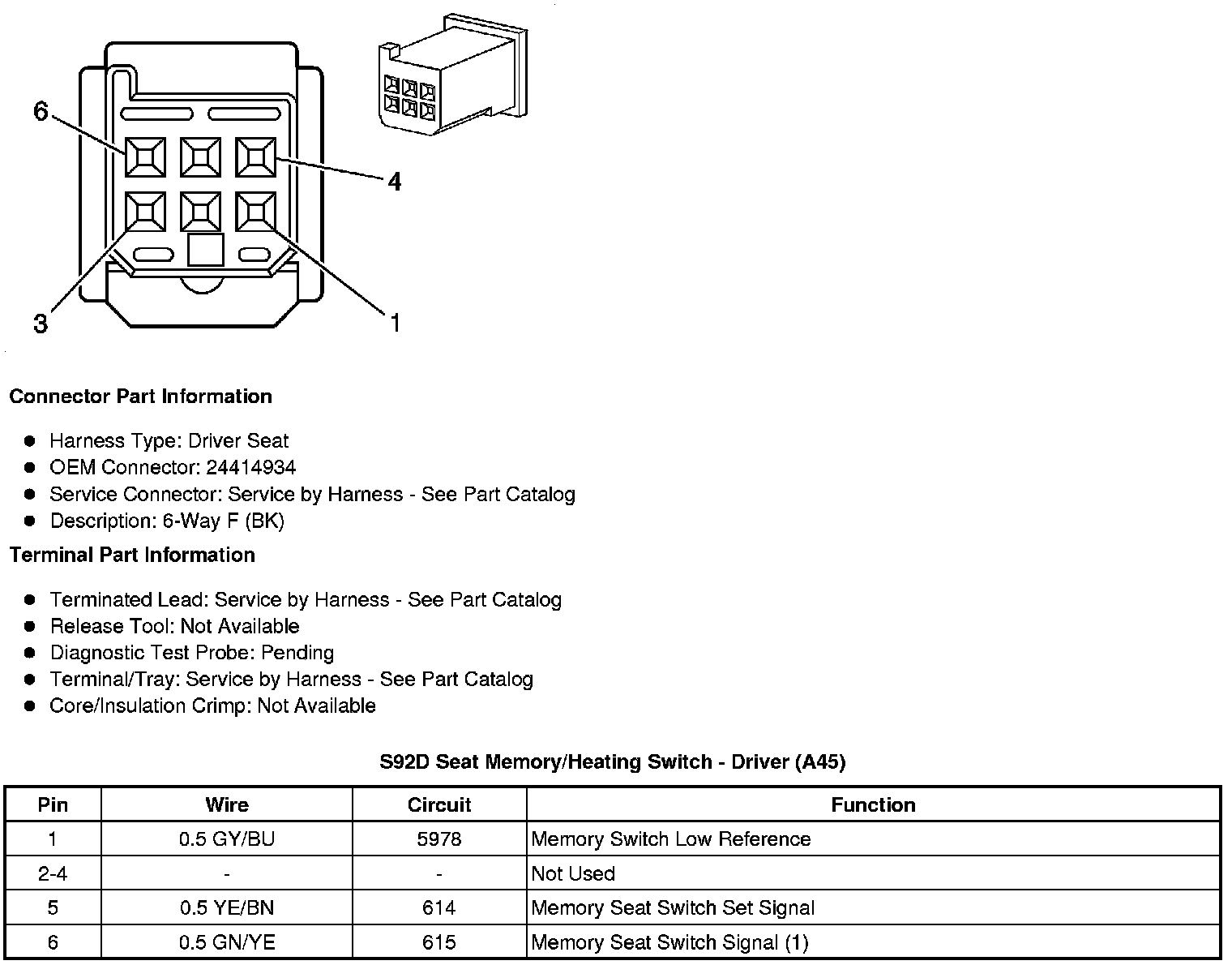

S92D Seat Memory/Heating Switch - Driver (A45)
