Home >> Buick >> 2011 >> LaCrosse FWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> Headlamp Alignment Control Module

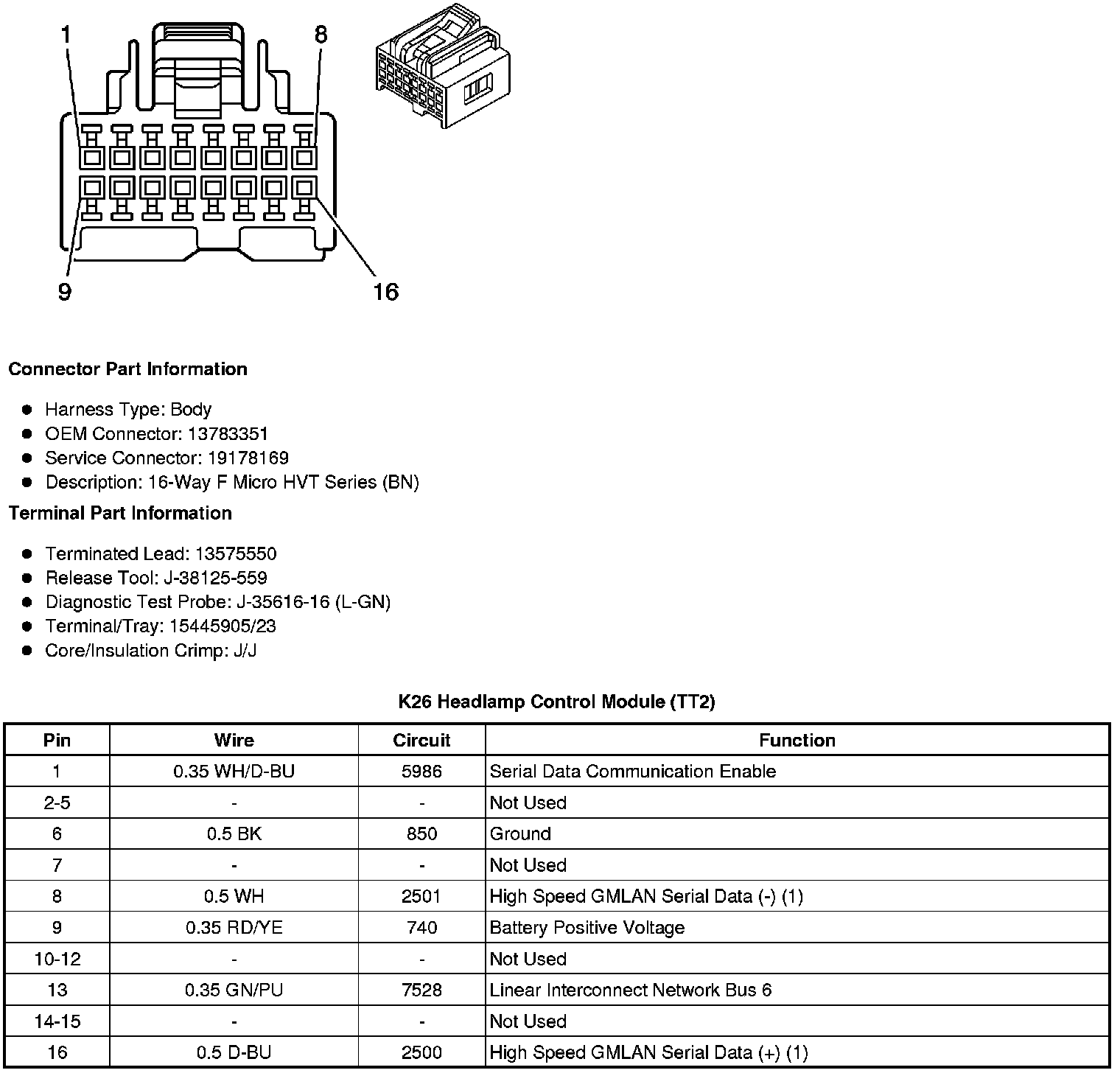

Headlamp Alignment Control Module




Component Connector End Views

K26 Headlamp Control Module (TT2)





K26 Headlamp Control Module (TT2)
