Air Bag Control Module
Component Connector End Views

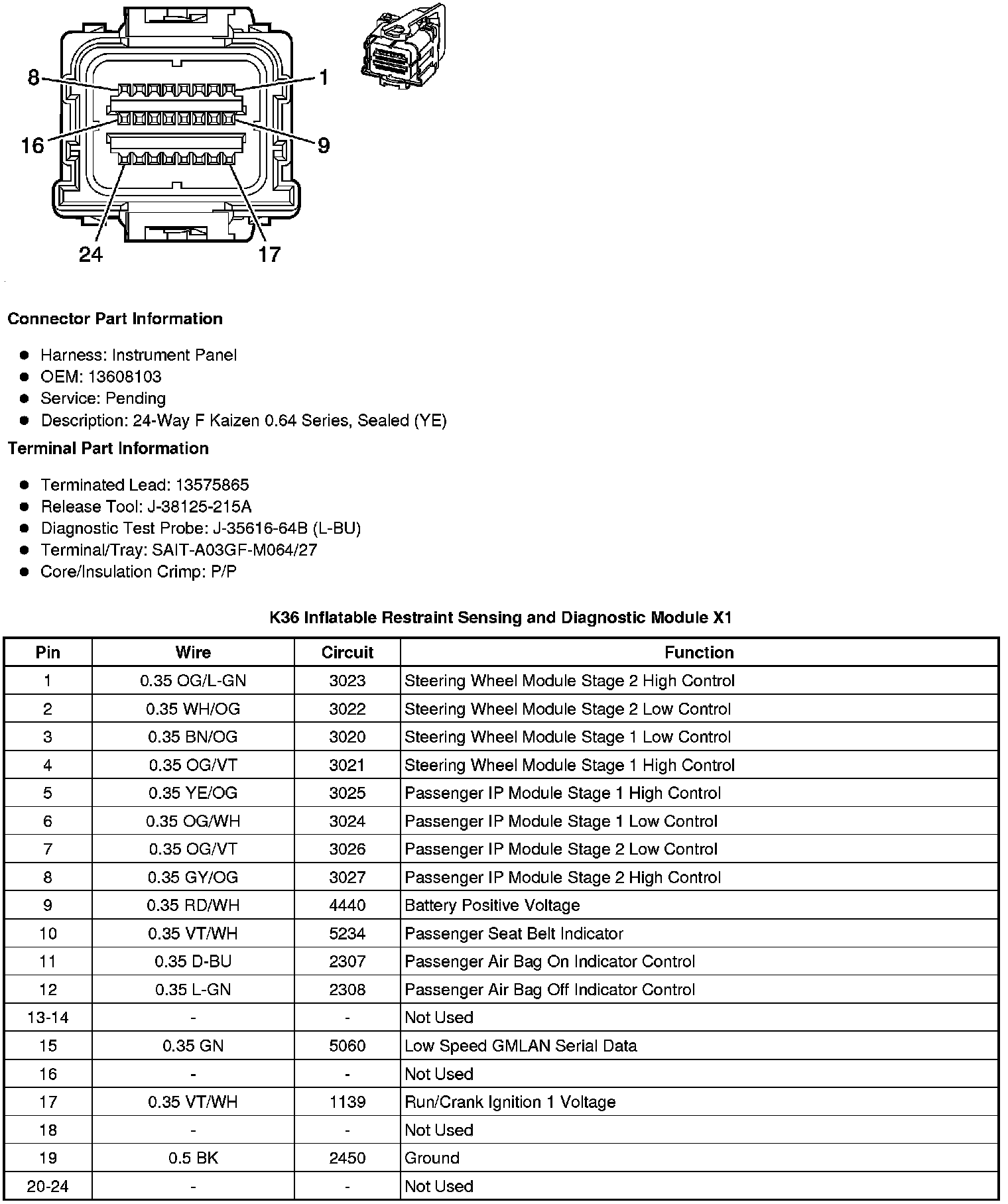

K36 Inflatable Restraint Sensing and Diagnostic Module X1

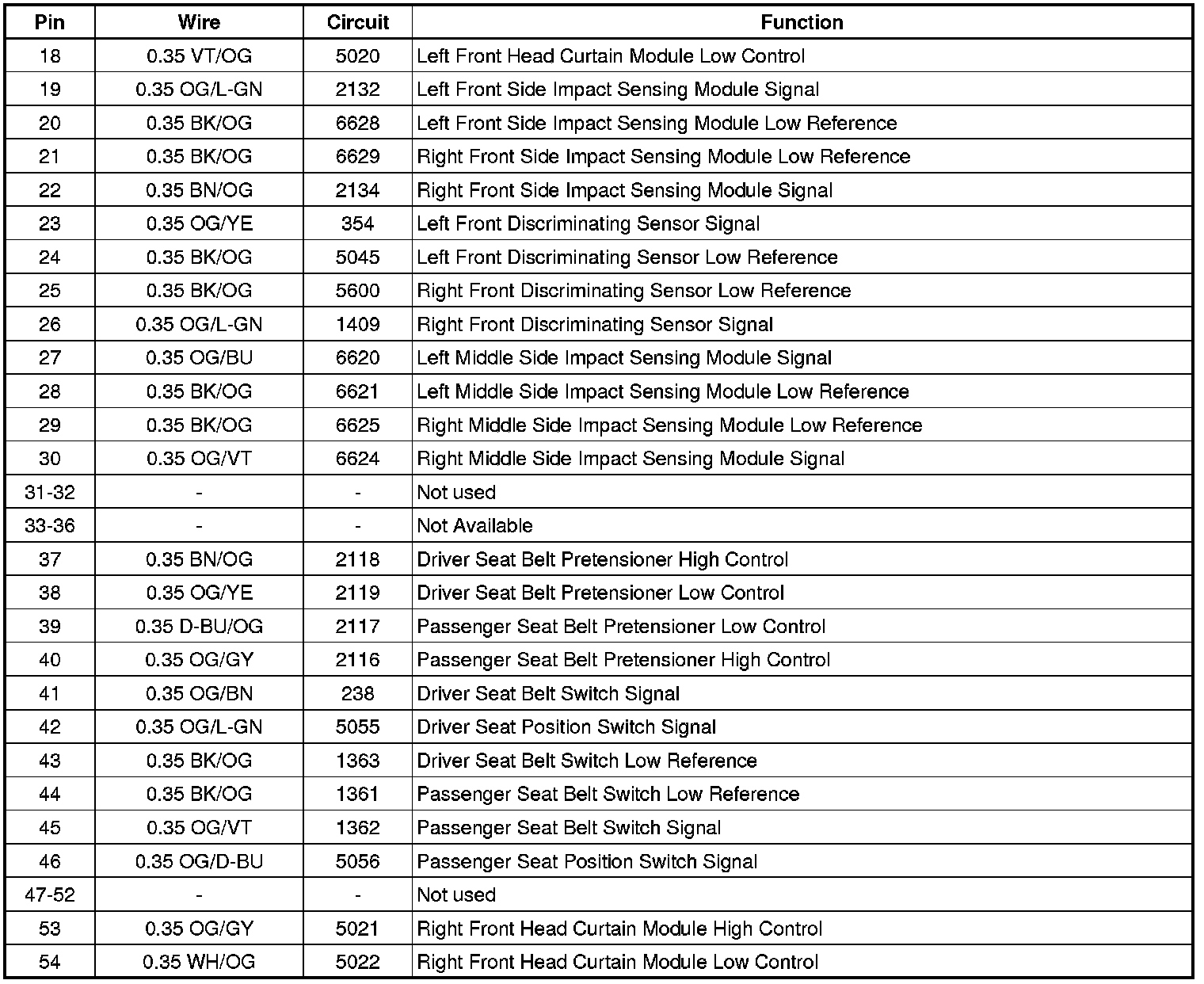

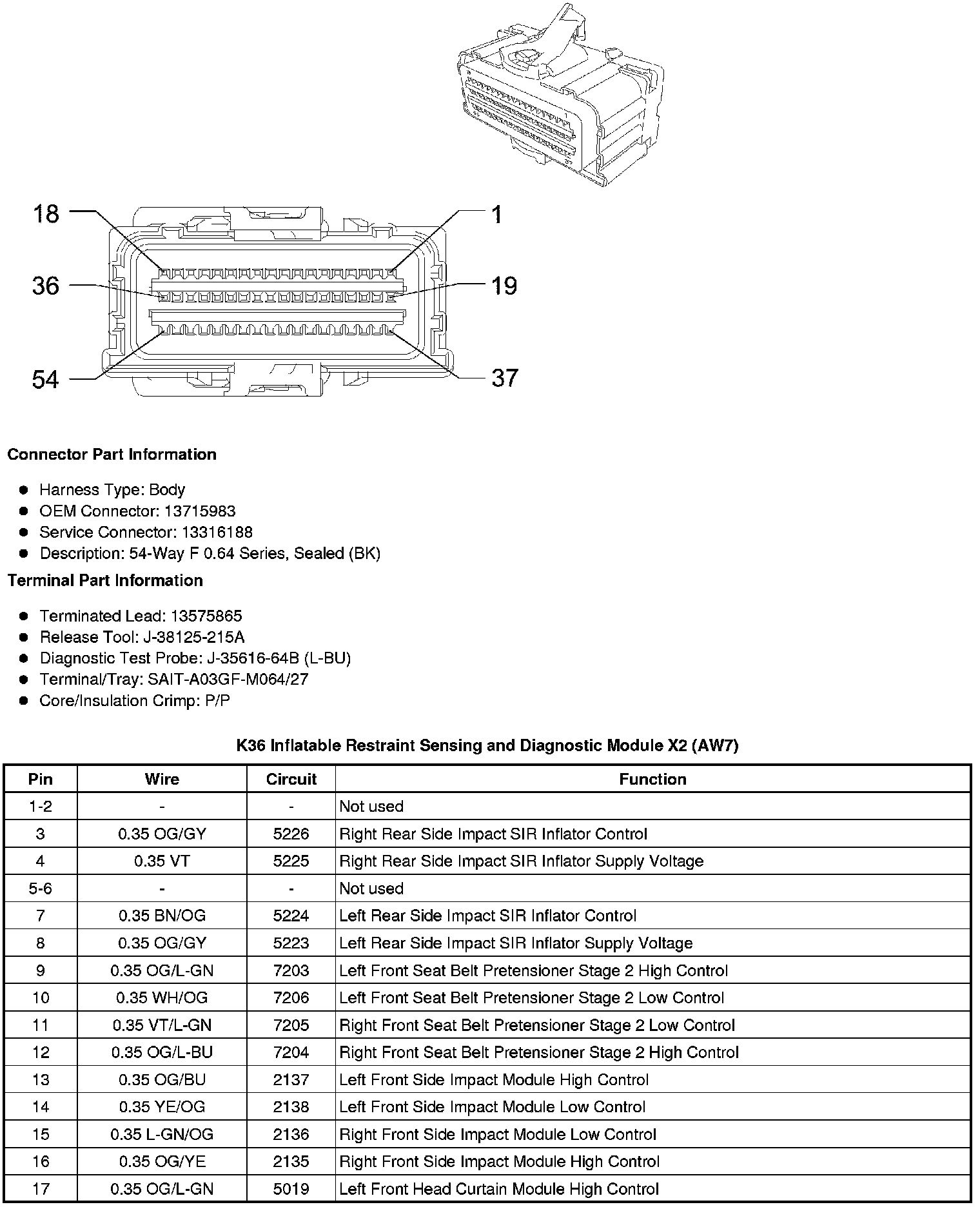

K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AW7)

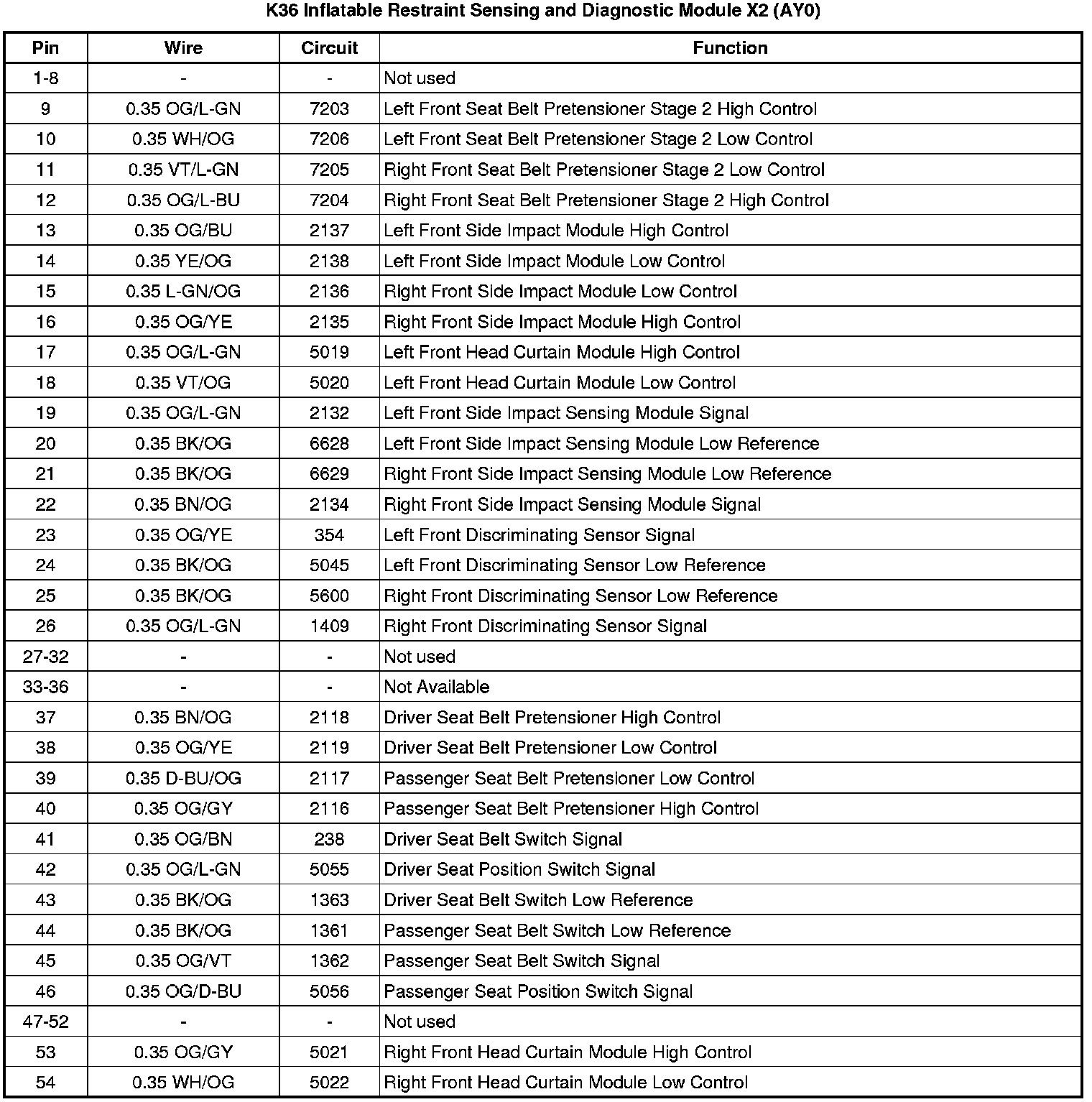

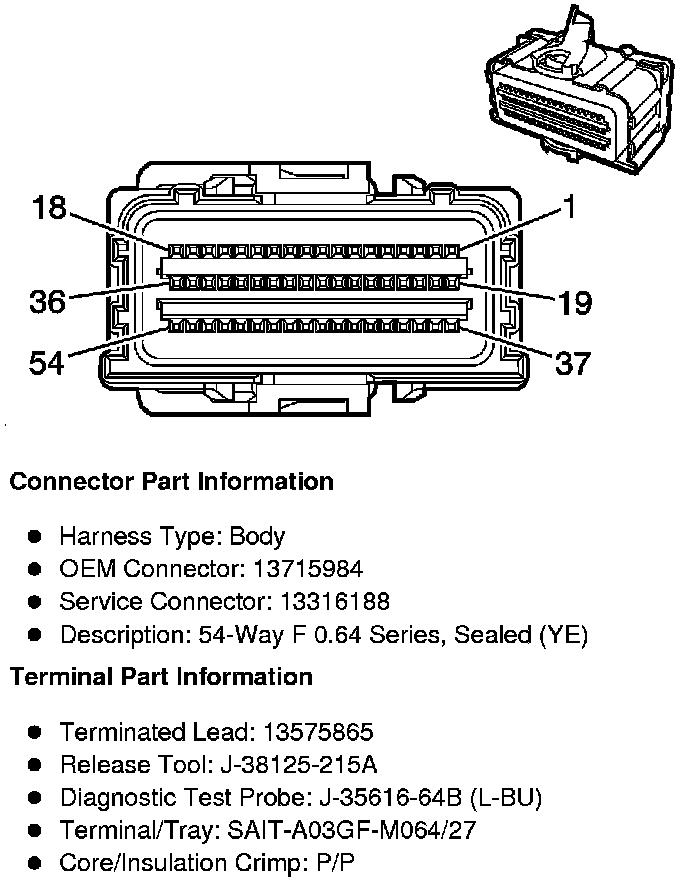

K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AY0)
Component Connector End Views
K36 Inflatable Restraint Sensing and Diagnostic Module X1
K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AW7)
K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AY0)
