Home >> Buick >> 2009 >> Lucerne V6-3.9L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

Transmission Position Sensor/Switch: Diagrams

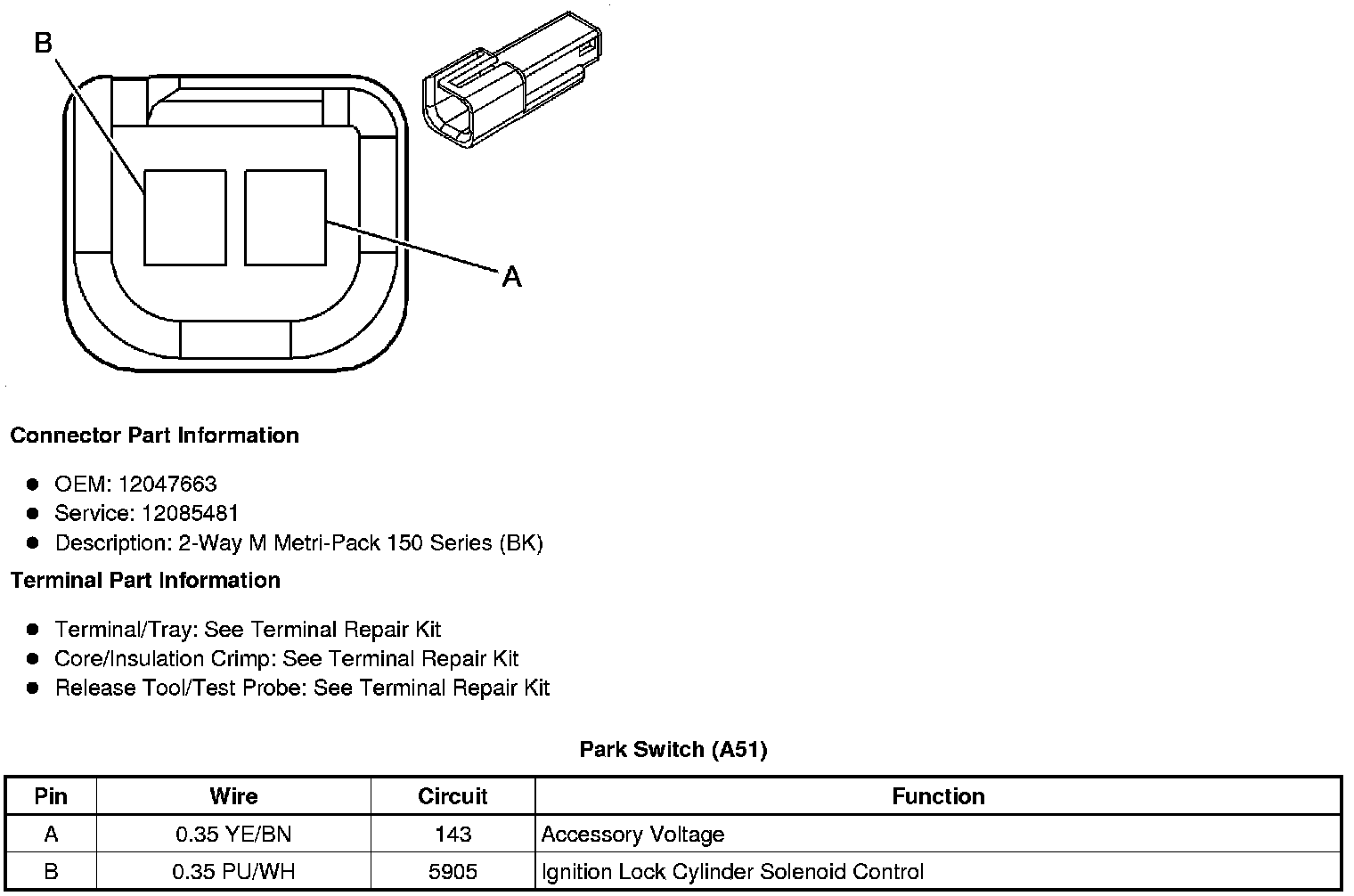

Component Connector End Views

Park Switch (A51)
