Steering Wheel Heater Control Module
Steering Wheel Heater Control Module
Component Connector End Views

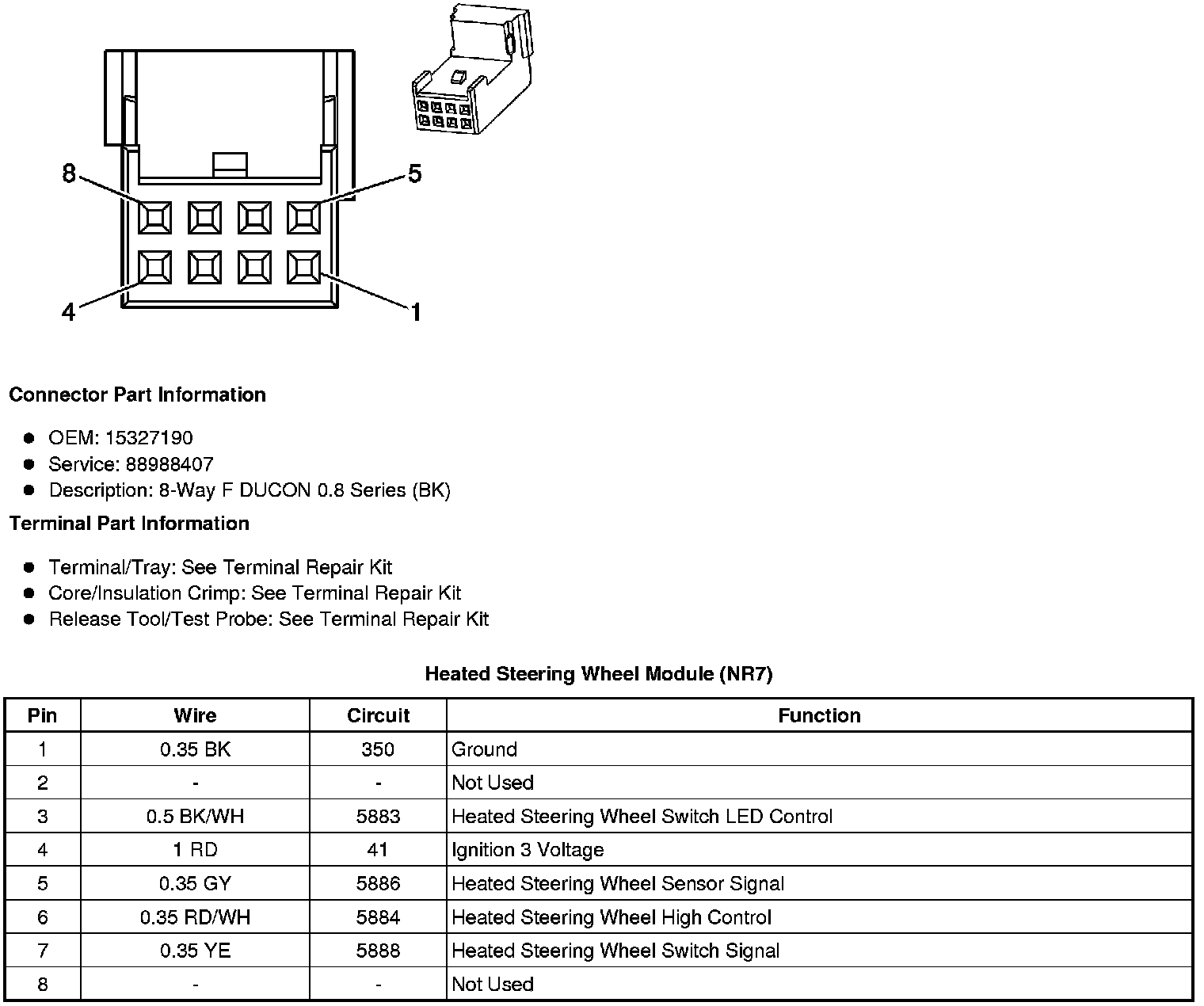

Heated Steering Wheel Module (NR7)

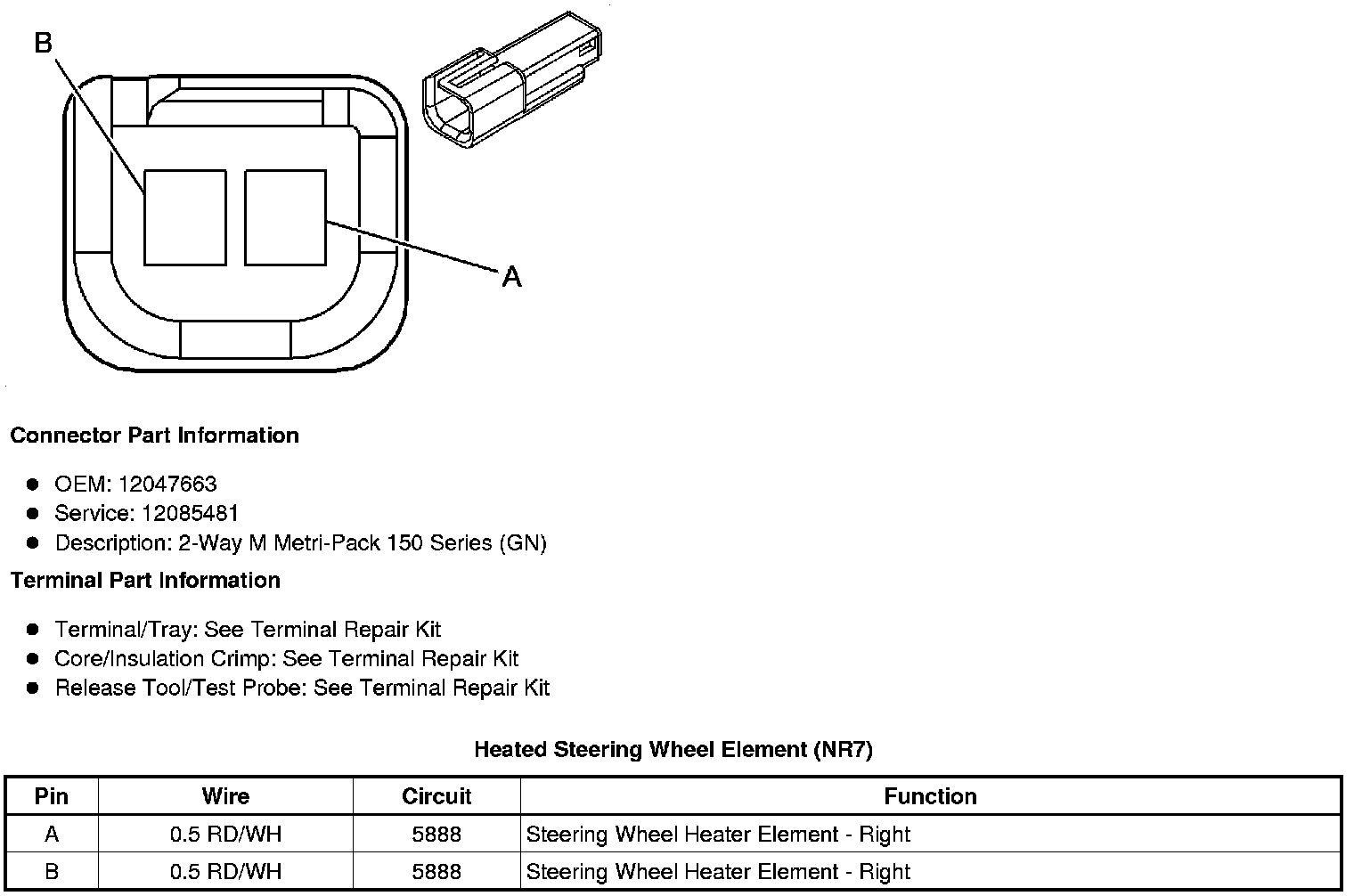

Heated Steering Wheel Element (NR7)
