Central Control Module




Component Connector End Views

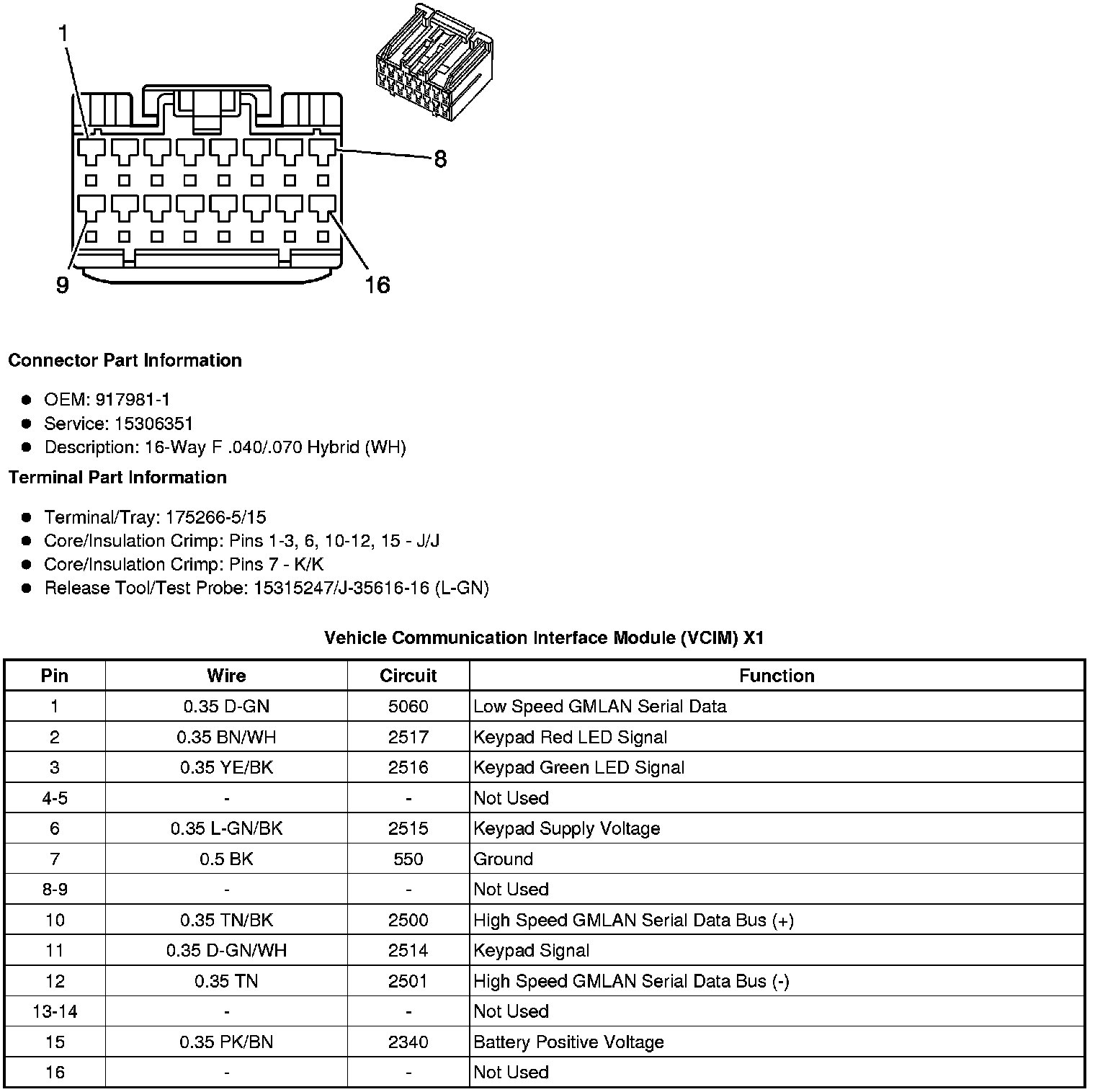

Vehicle Communication Interface Module (VCIM) X1






Vehicle Communication Interface Module (VCIM) X2

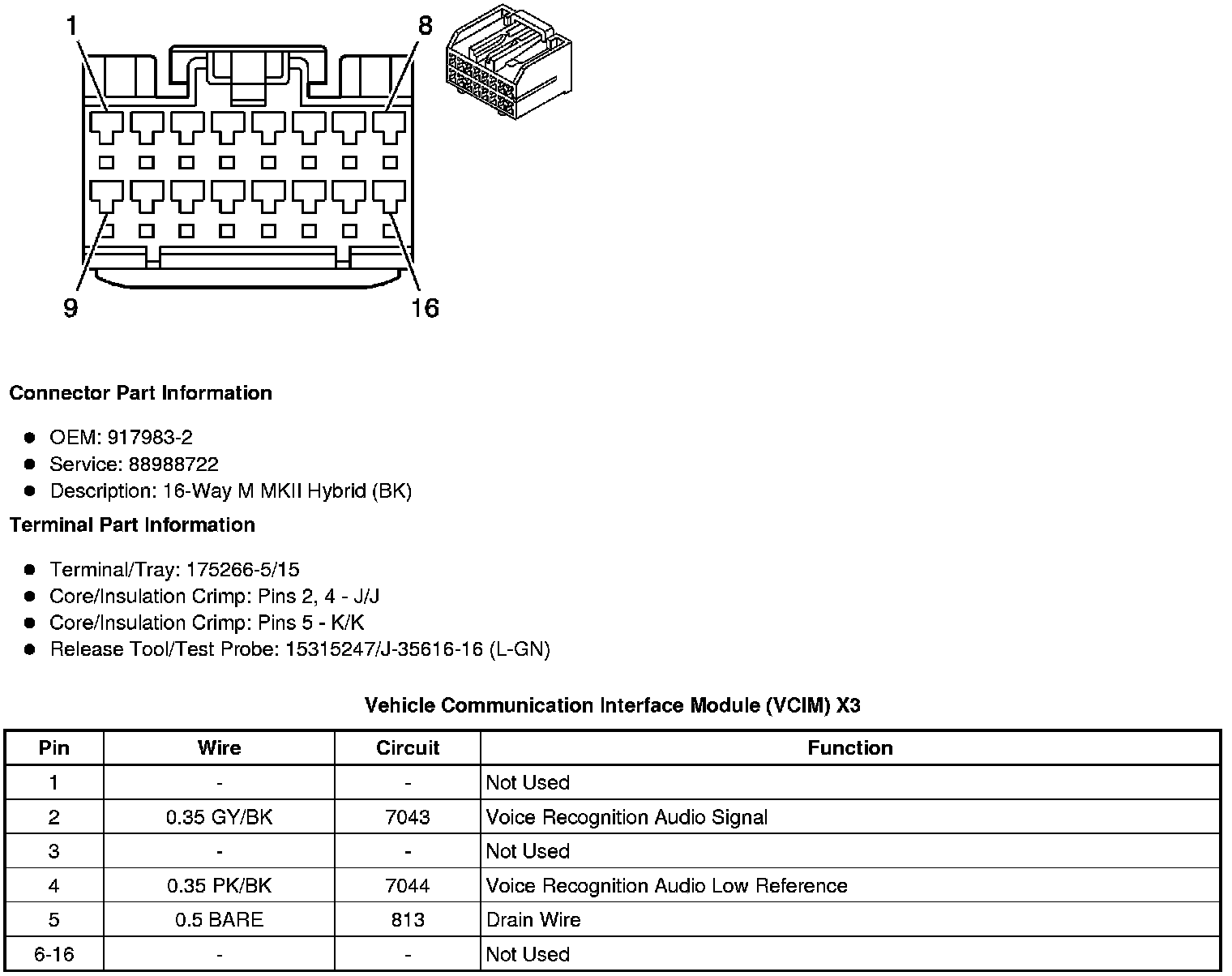

Vehicle Communication Interface Module (VCIM) X3
