Home >> Buick >> 2009 >> LaCrosse V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module




Component Connector End Views

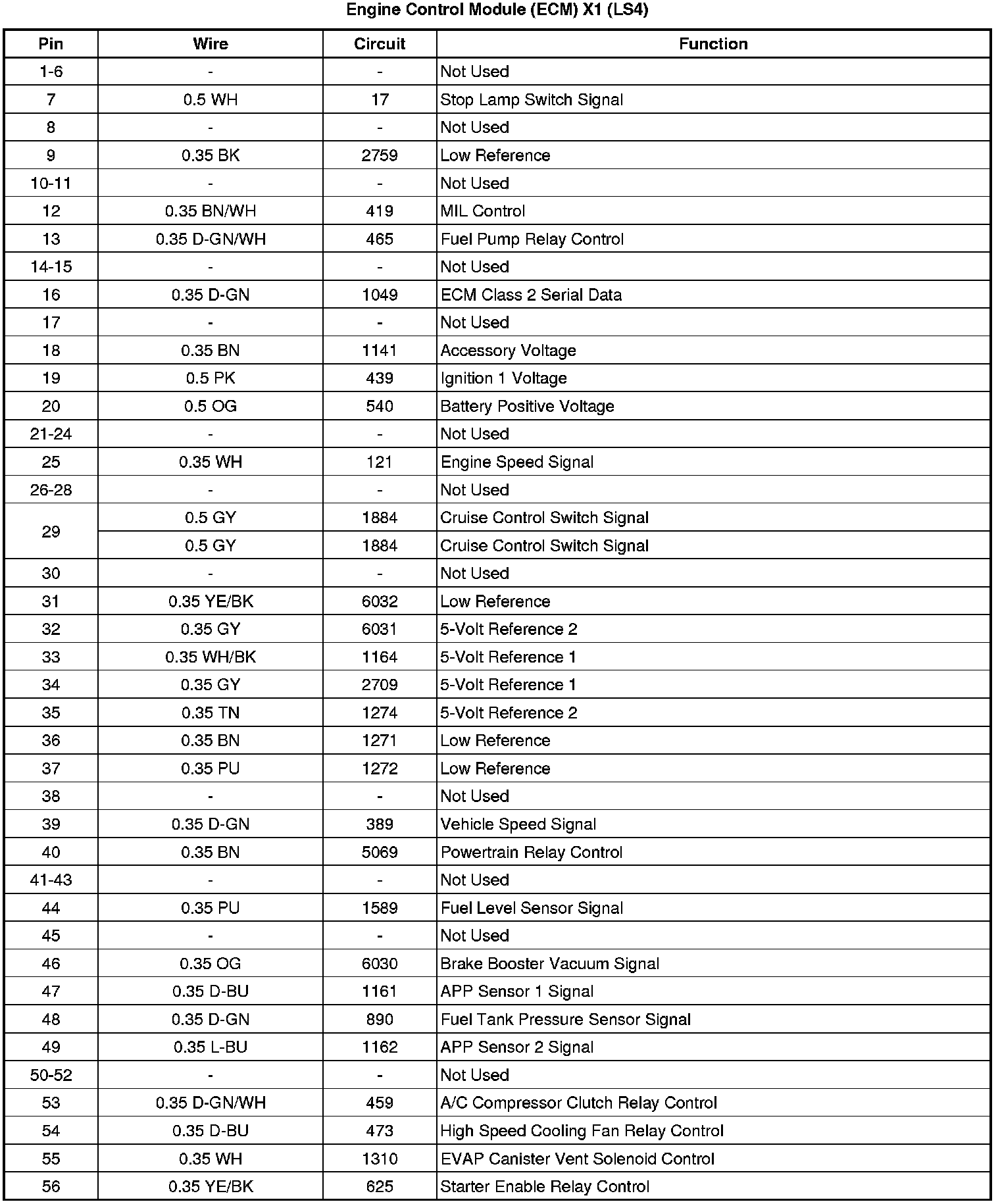

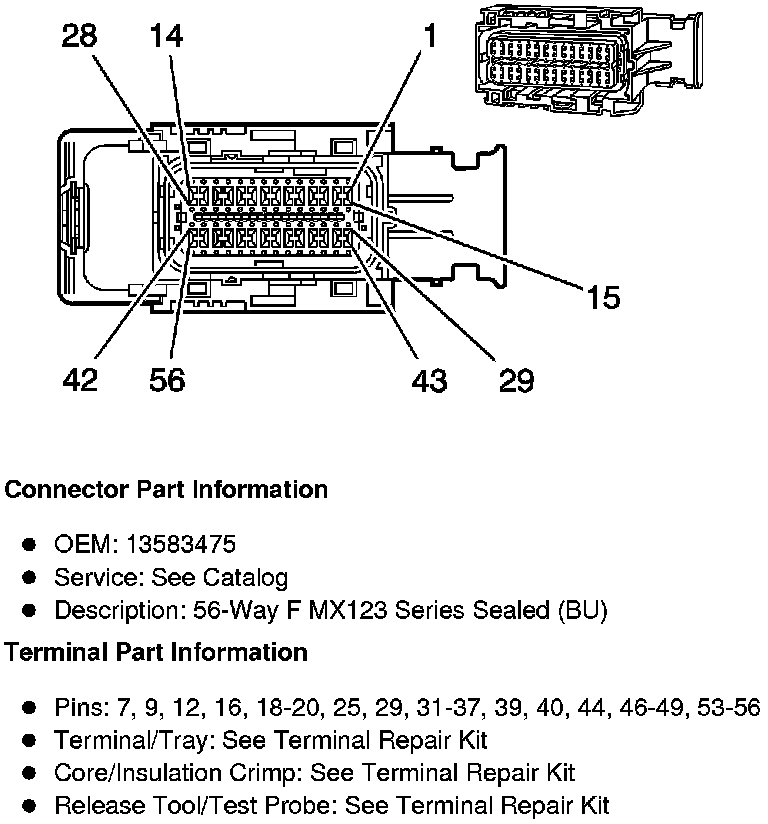

Engine Control Module (ECM) X1 (LS4)

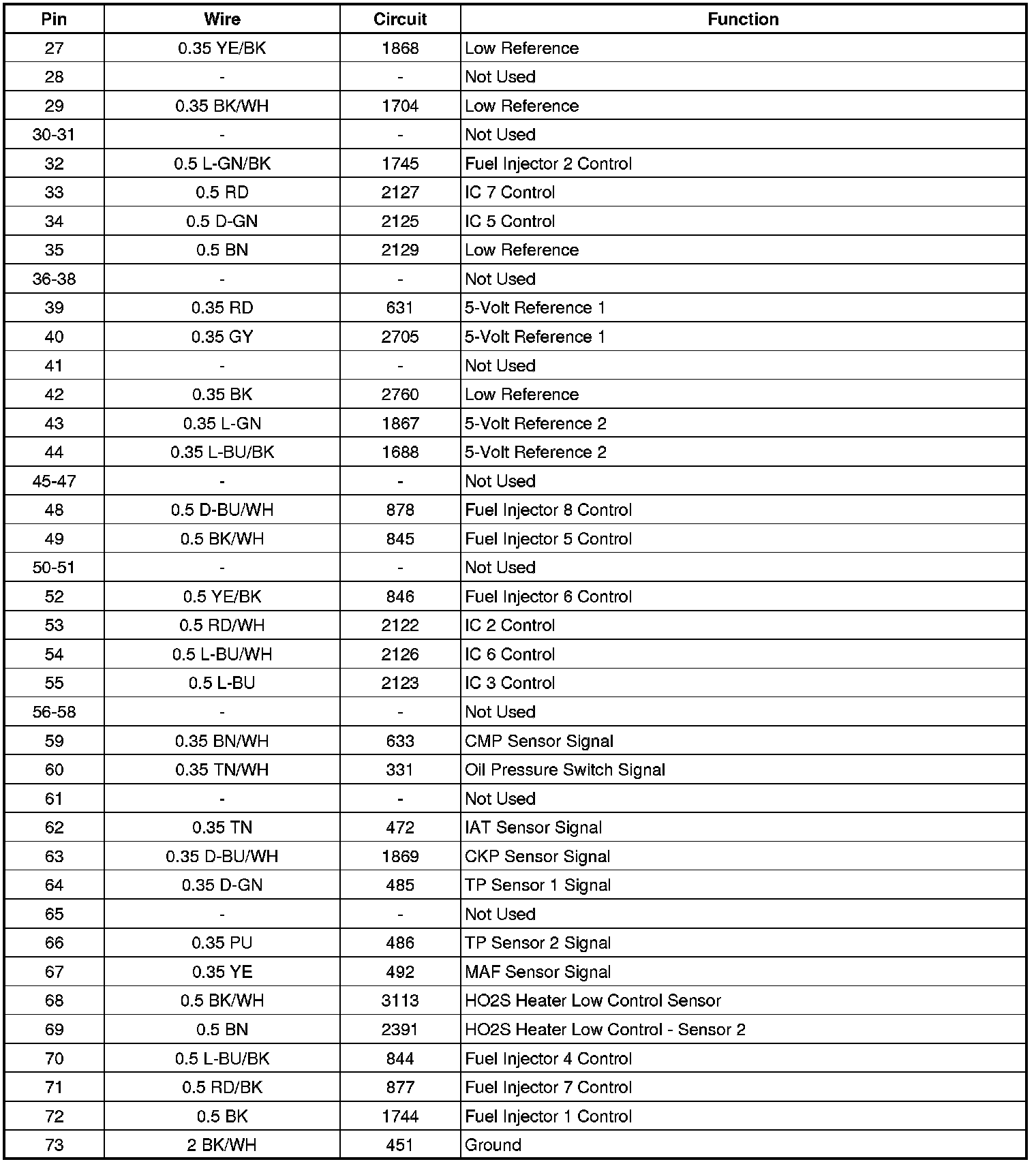

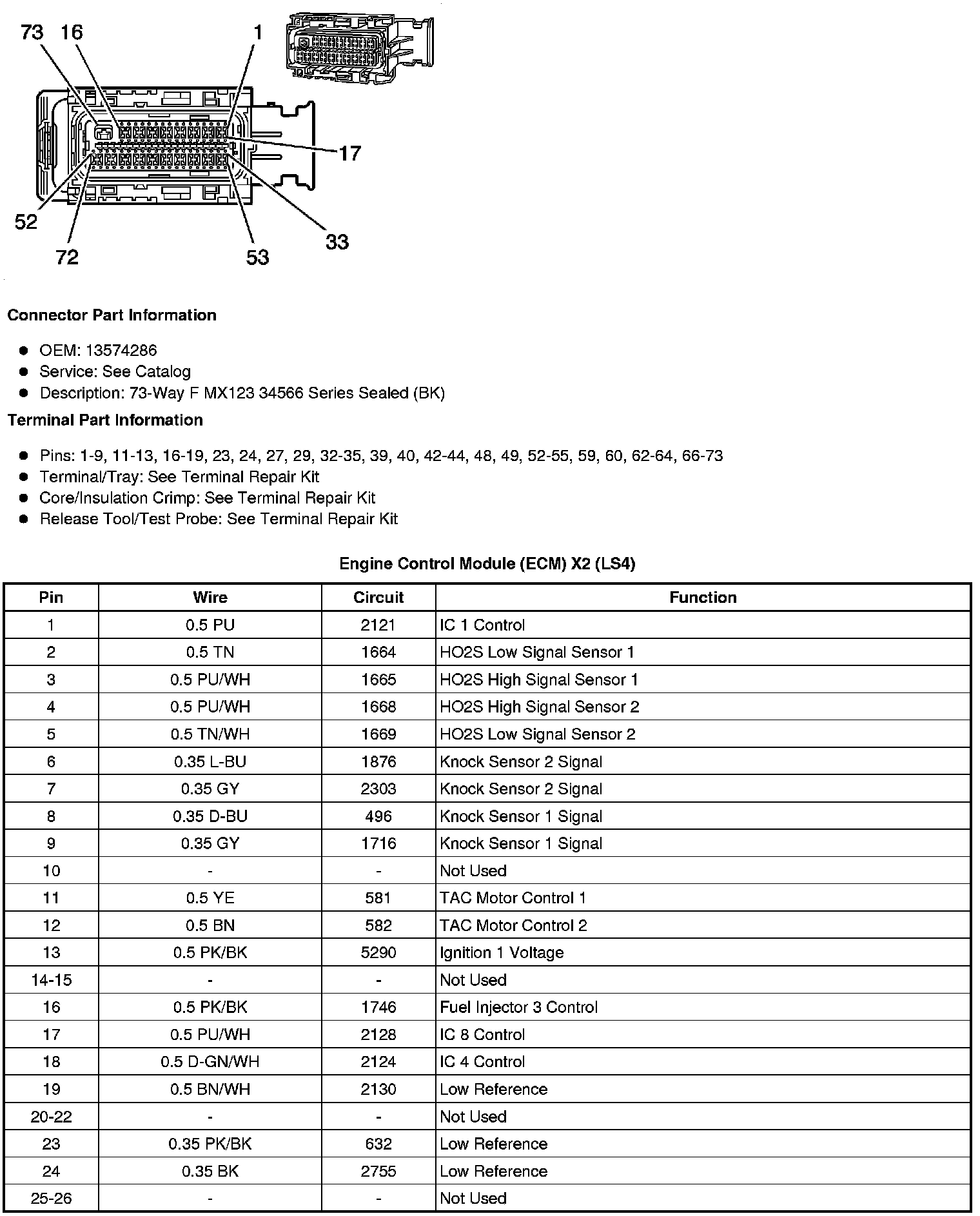

Engine Control Module (ECM) X2 (LS4)

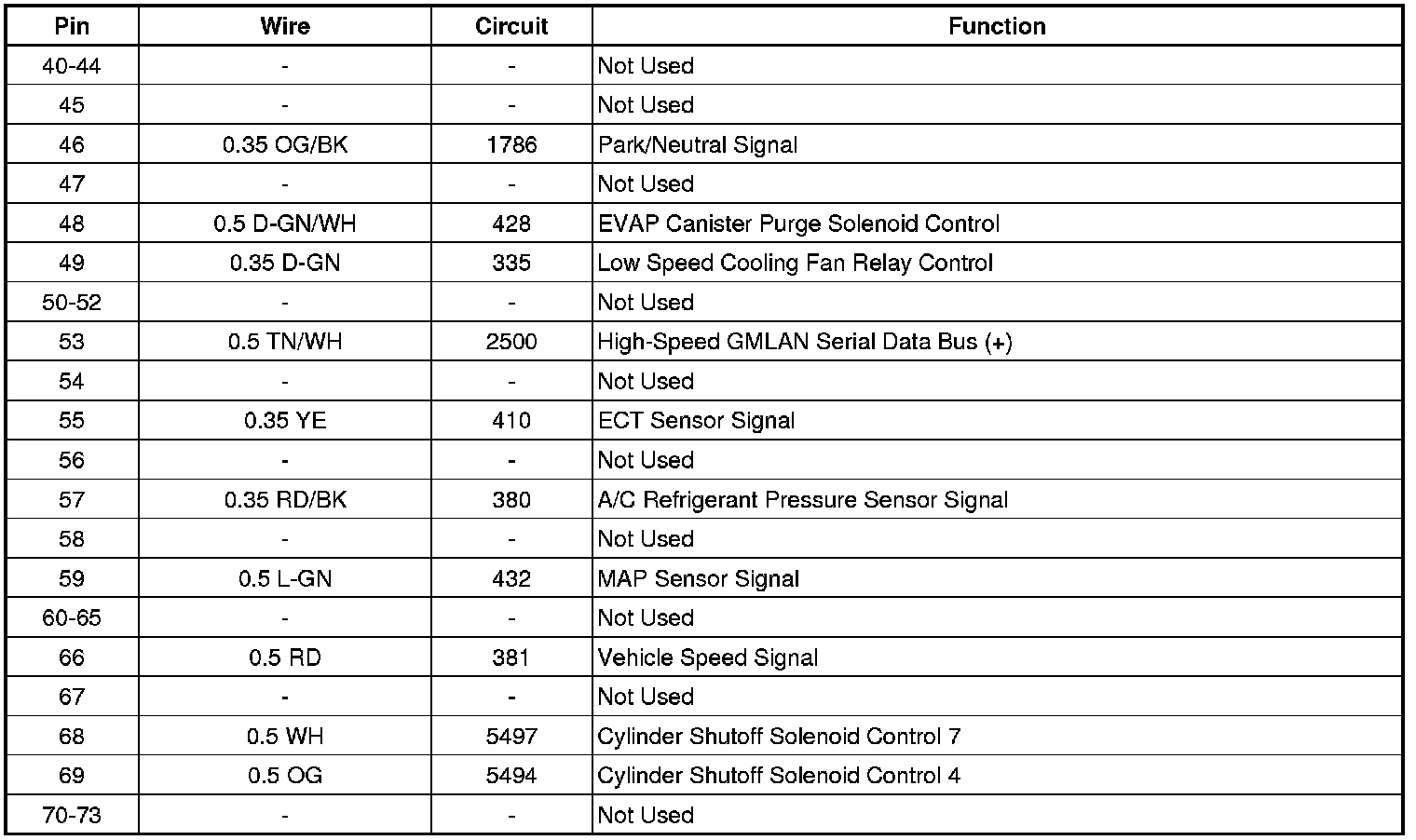

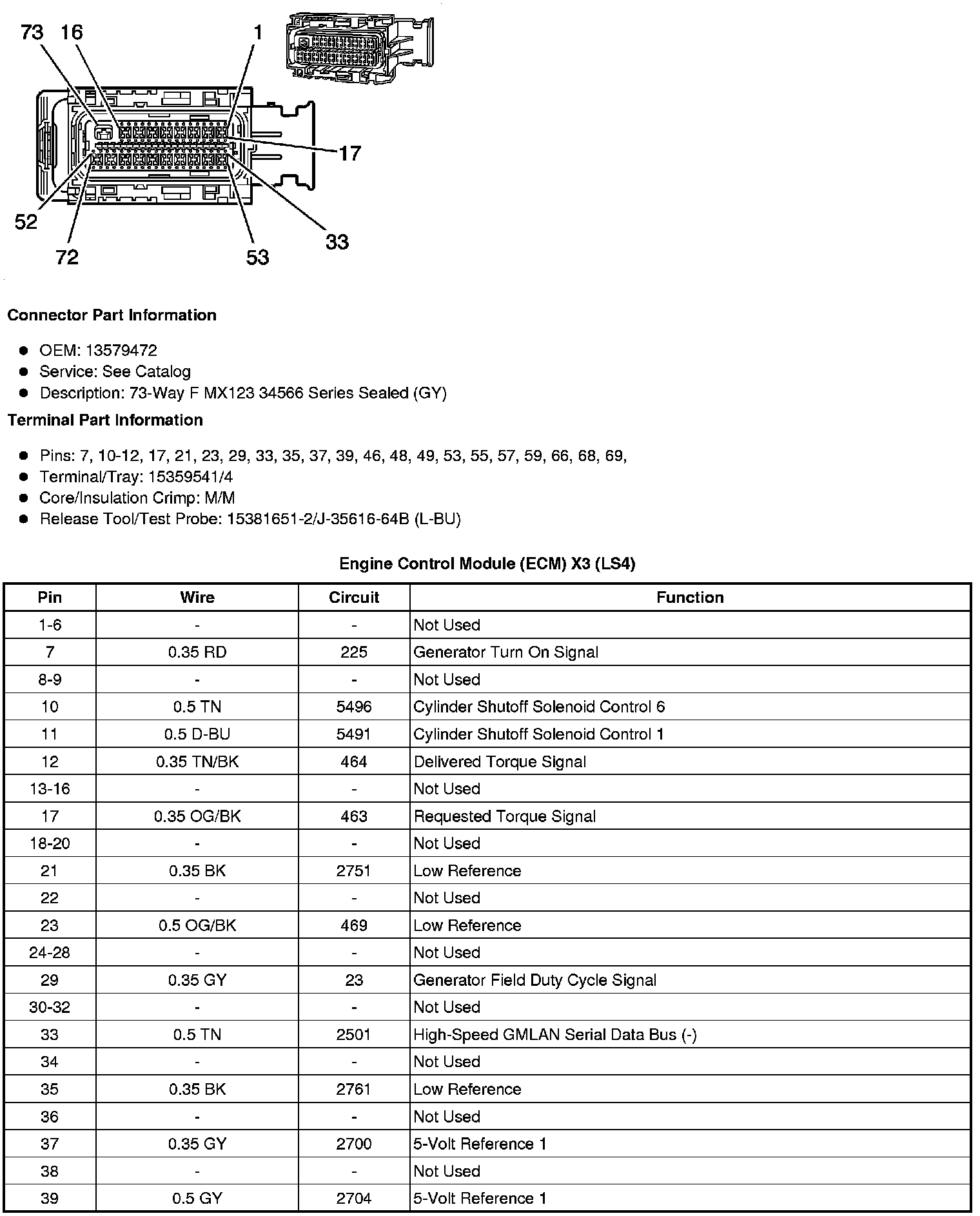

Engine Control Module (ECM) X3 (LS4)
