Home >> Buick >> 2009 >> LaCrosse V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

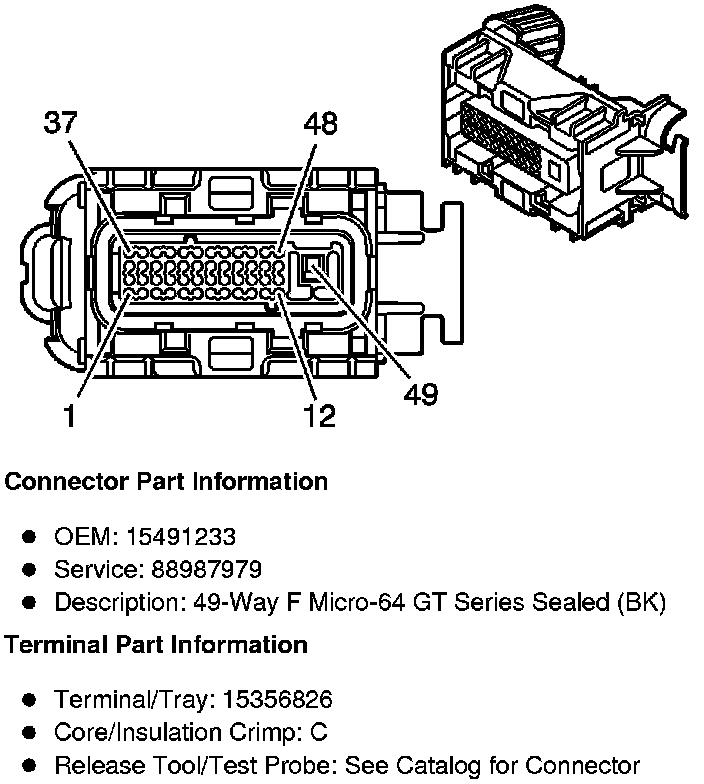

Component Connector End Views

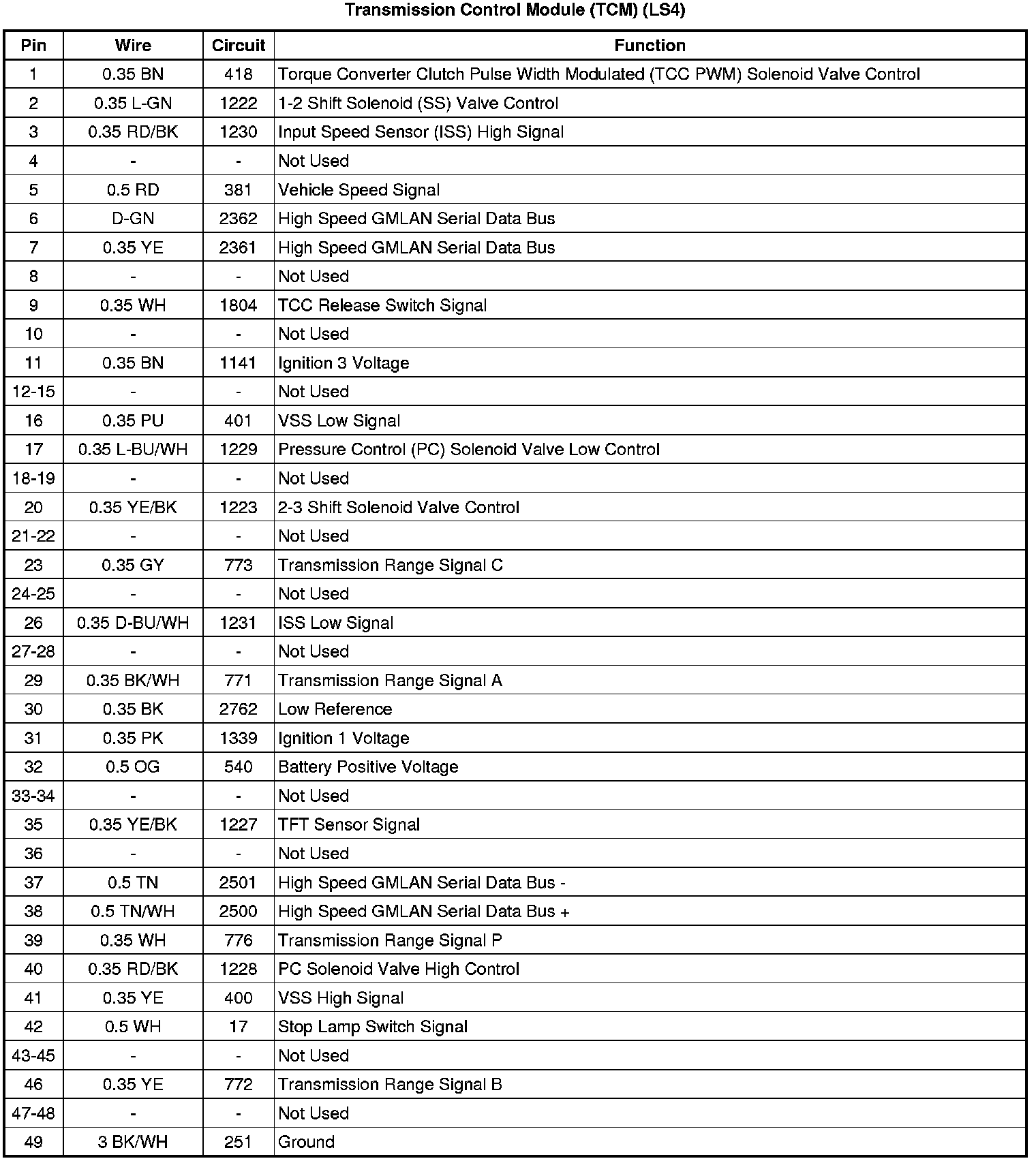

Transmission Control Module (TCM) (LS4)
