Engine Control Module




Component Connector End Views

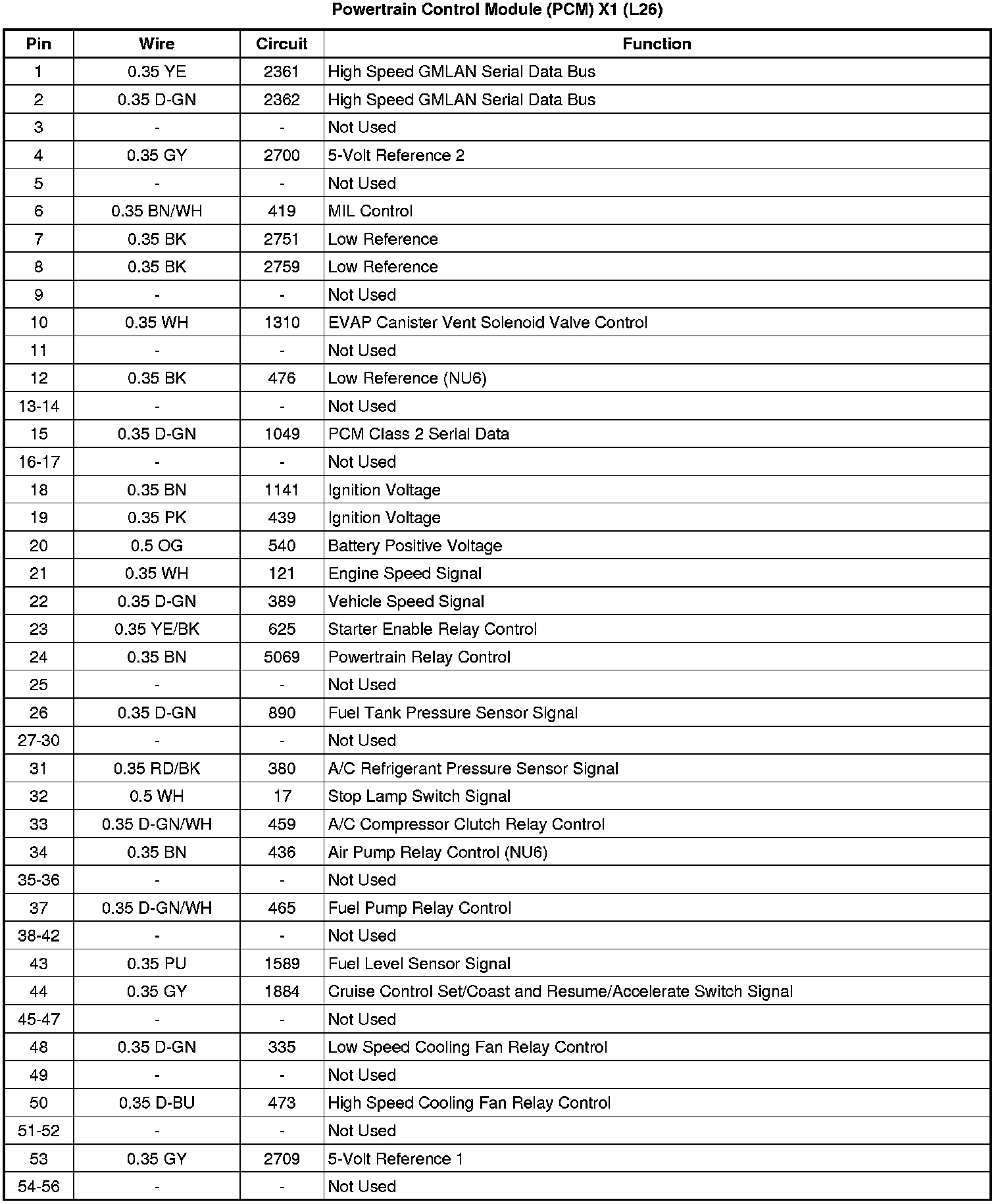

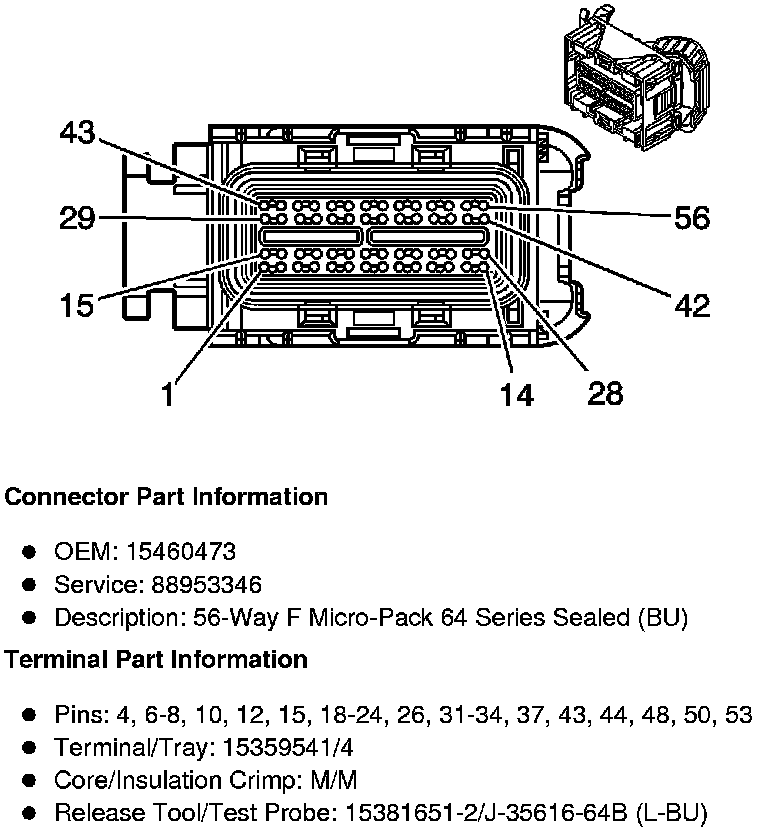

Powertrain Control Module (PCM) X1 (L26)

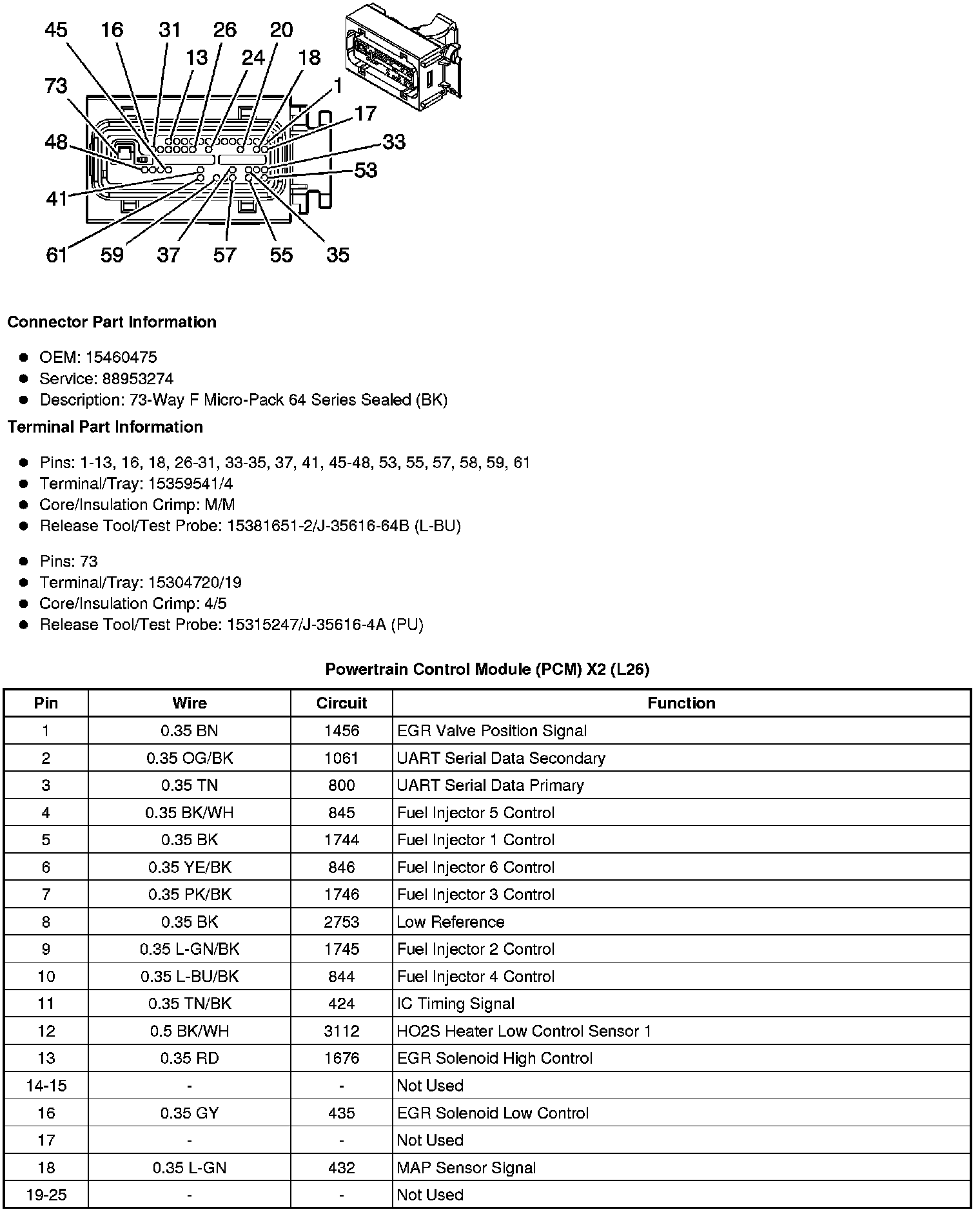

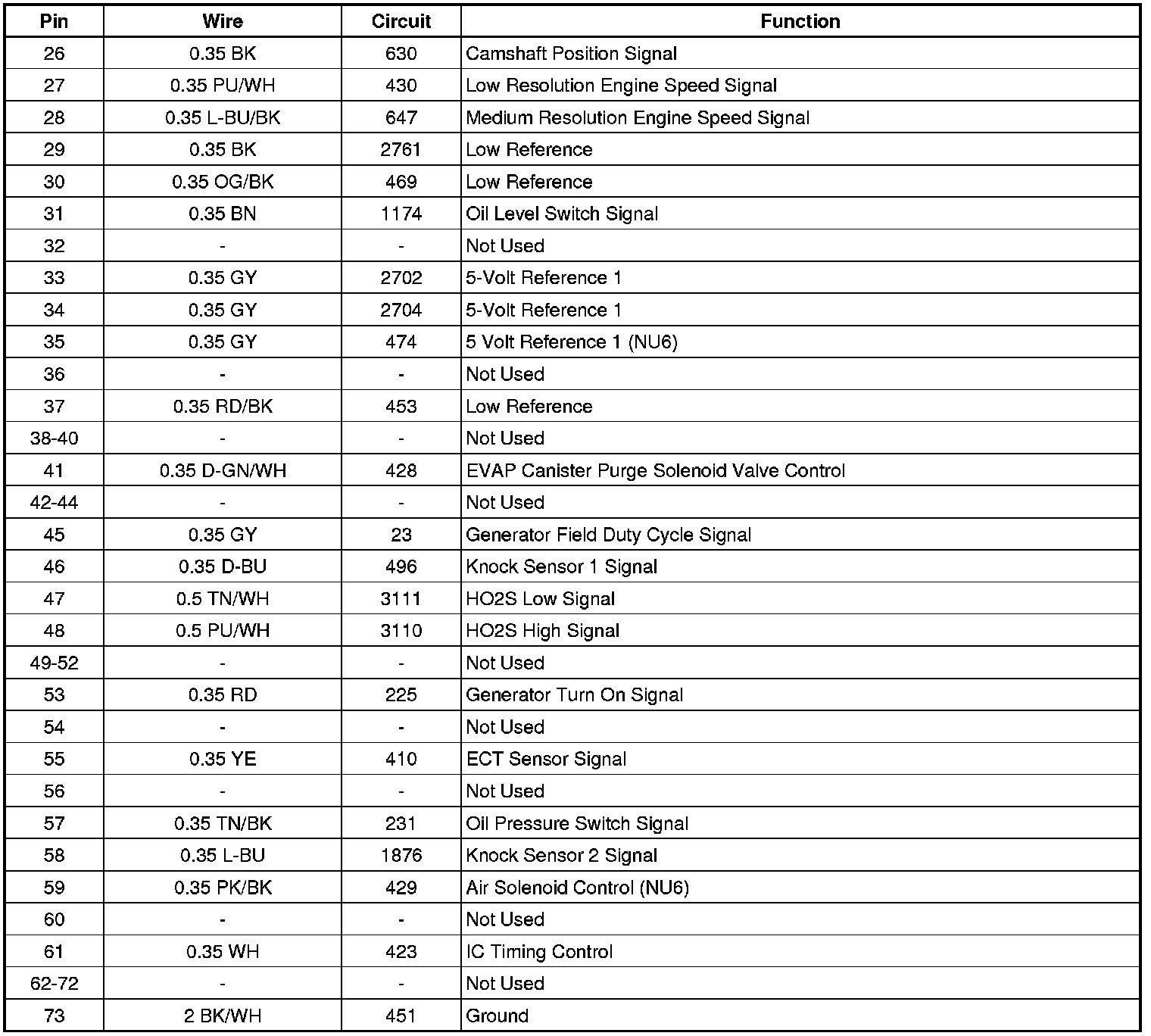

Powertrain Control Module (PCM) X2 (L26)

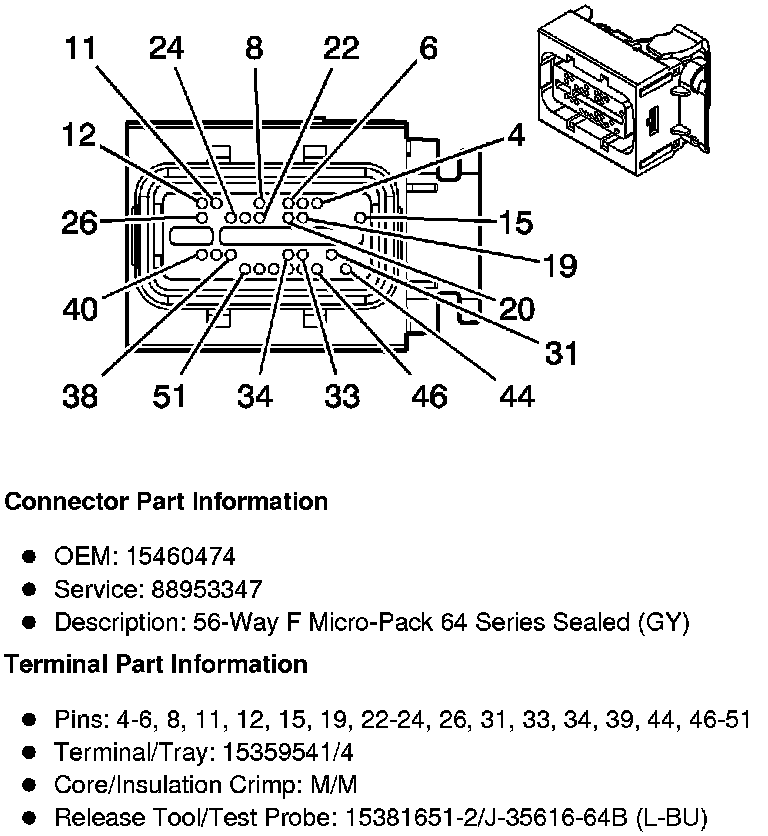

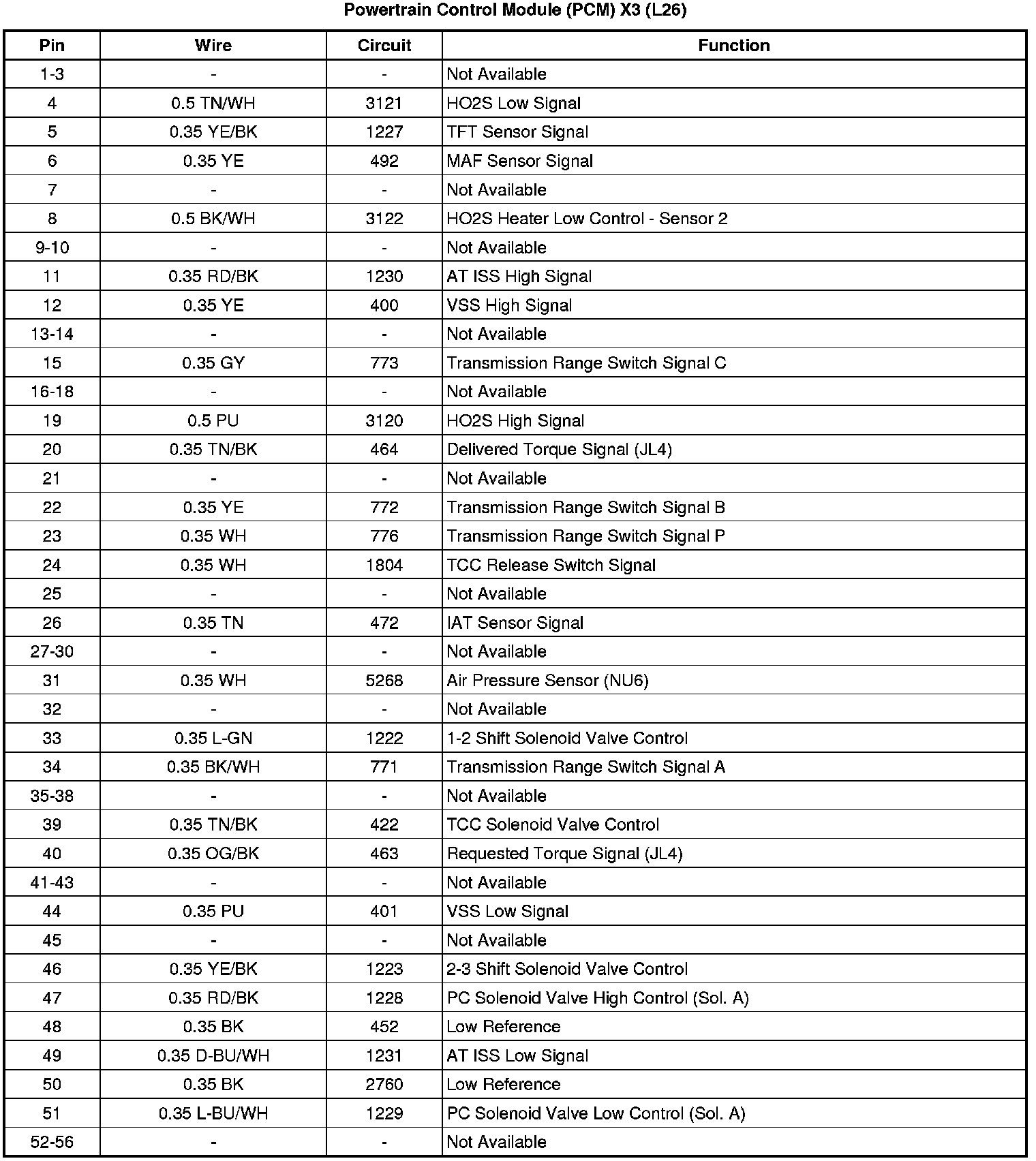

Powertrain Control Module (PCM) X3 (L26)
