Electronic Brake Control Module




Component Connector End Views

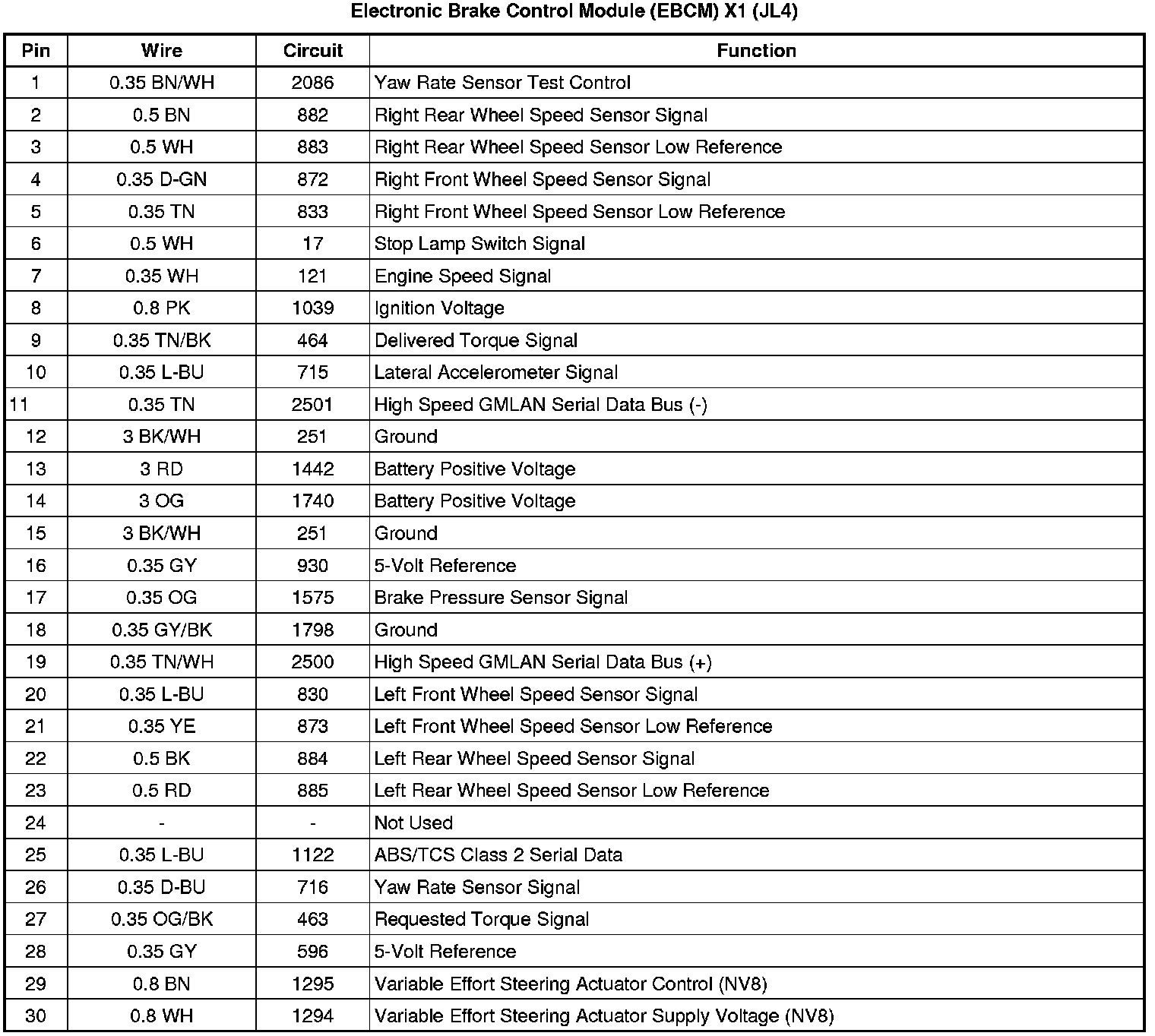

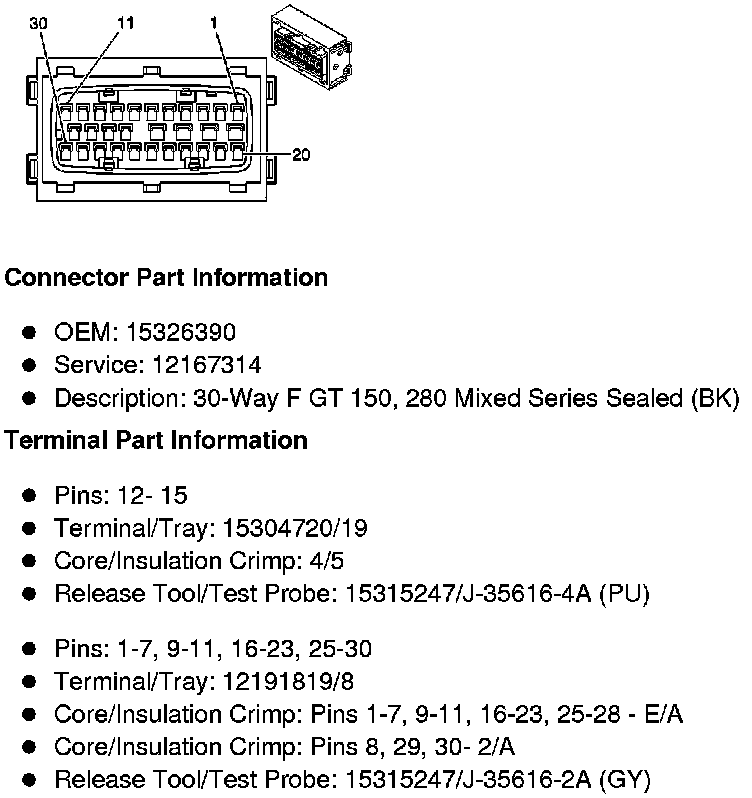

Electronic Brake Control Module (EBCM) X1 (JL4)

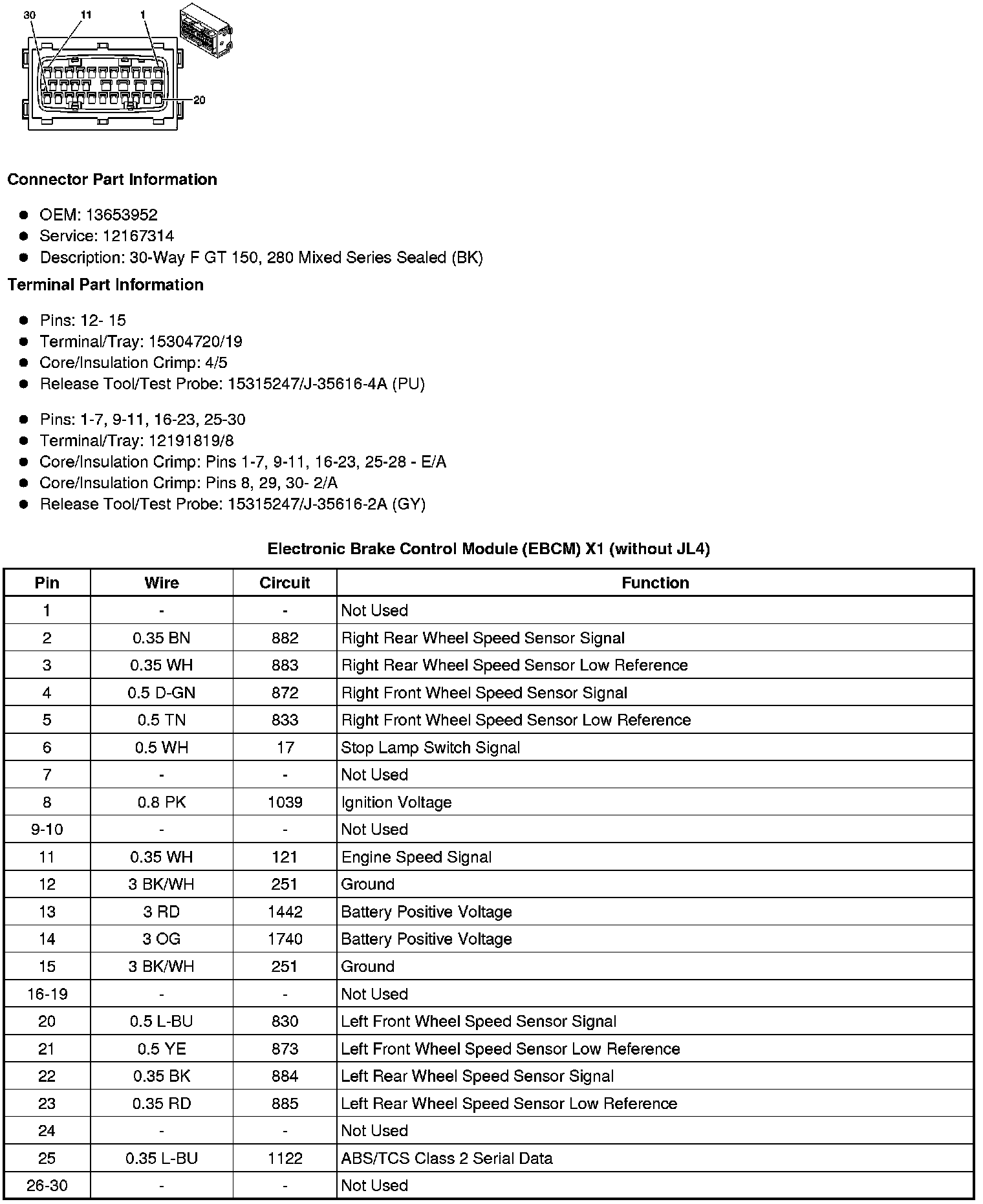

Electronic Brake Control Module (EBCM) X1 (without JL4)

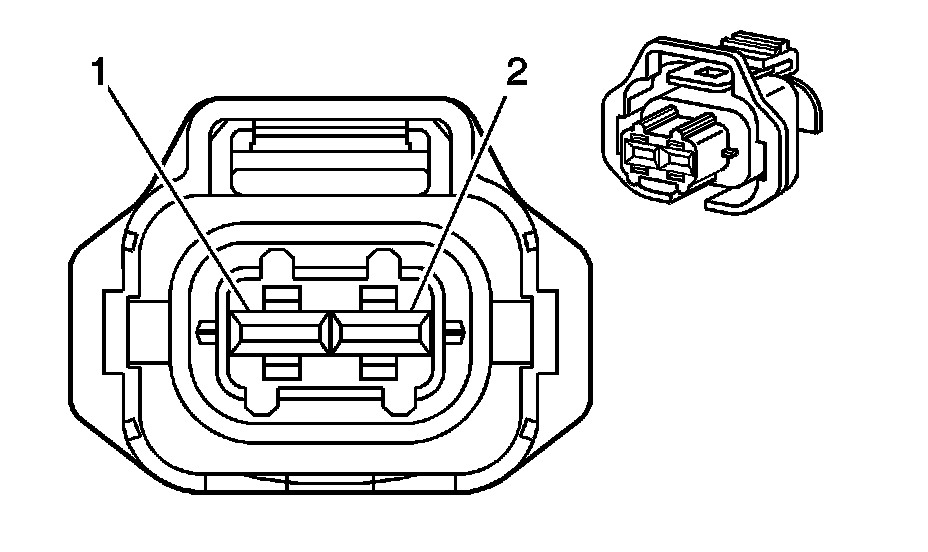

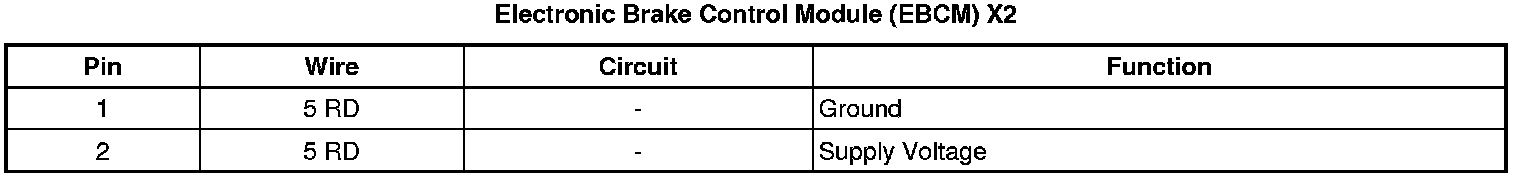

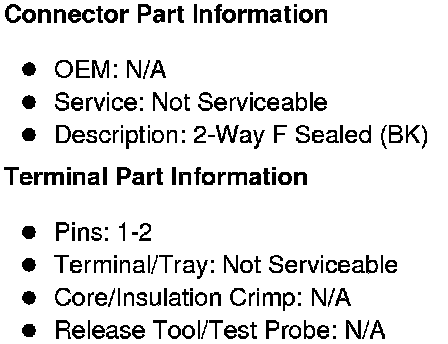

Electronic Brake Control Module (EBCM) X2
