Fuel Level Sensor: Locations

Wheels/Vehicle Underbody Component Views

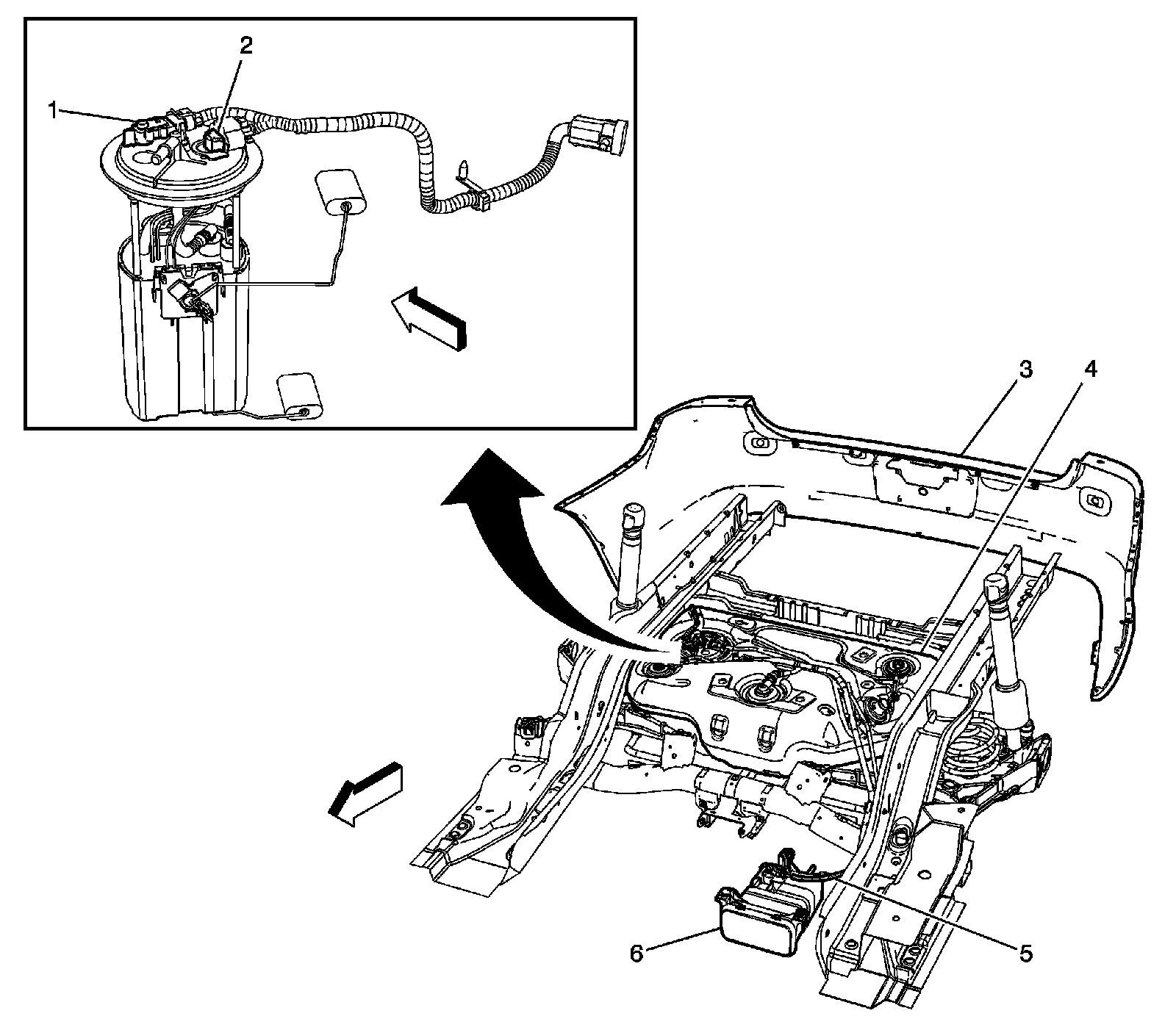

Fuel Tank Components




1 - Fuel Tank Pressure (FTP) Sensor Connector
2 - Fuel Pump and Sender Assembly
3 - Rear Fascia
4 - Fuel Tank
5 - Body Harness
6 - Evaporative Emission (EVAP) Canister
