Air Flow Meter/Sensor: Diagrams
Component Connector End Views

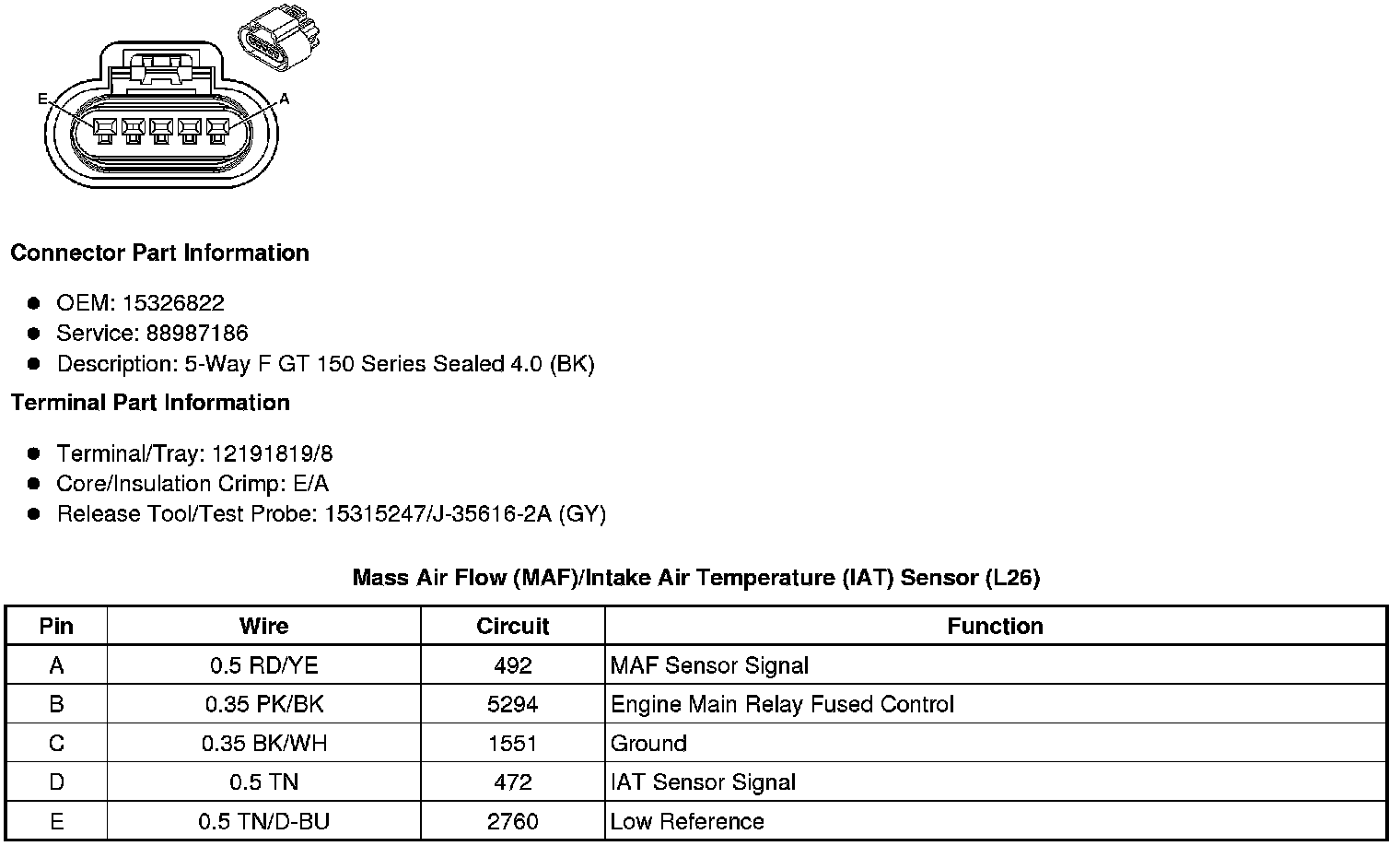

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (L26/3.8L)
