Suspension Control Module



Component Connector End Views

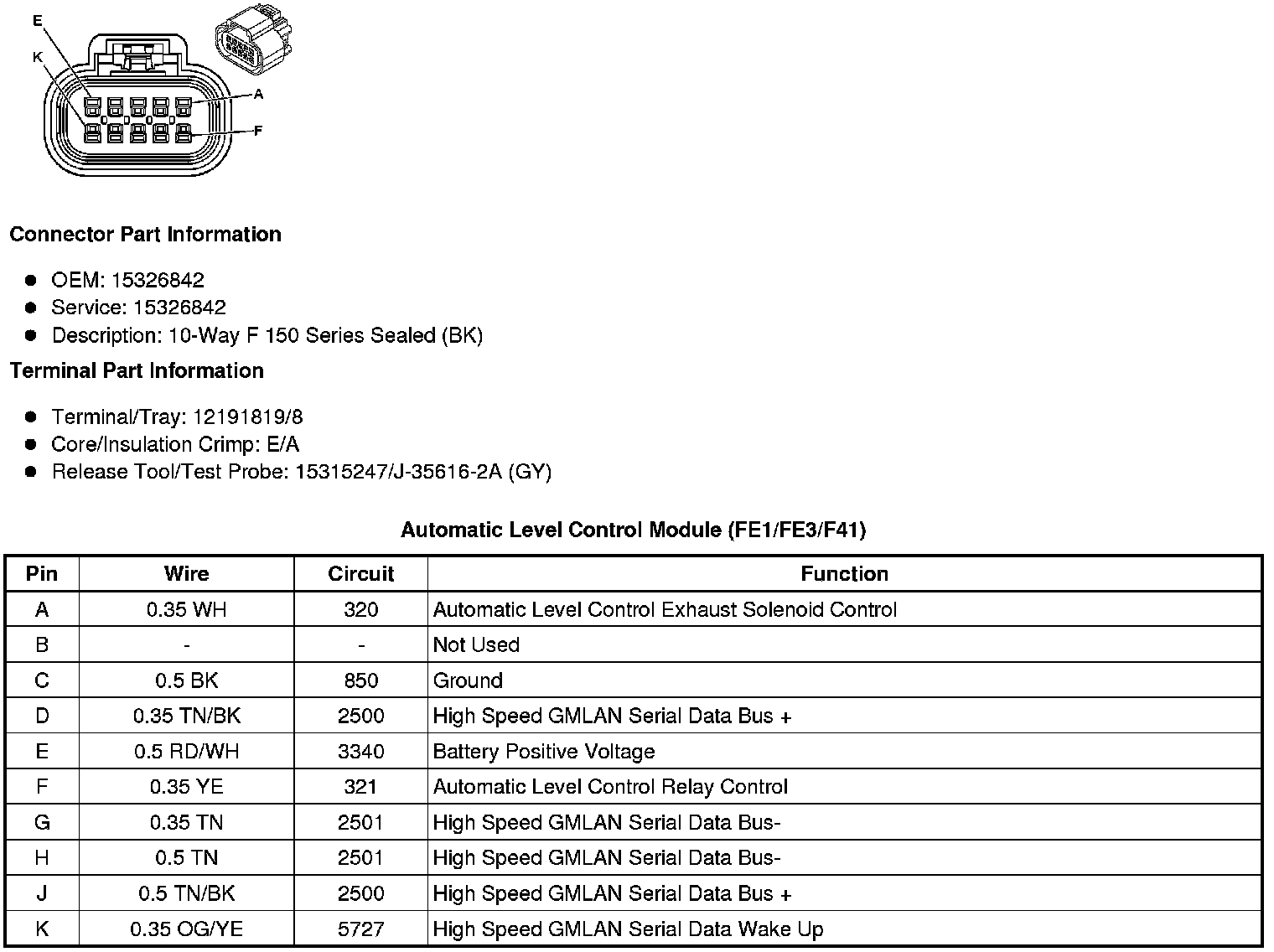

Automatic Level Control Module (FE1/FE3/F41)

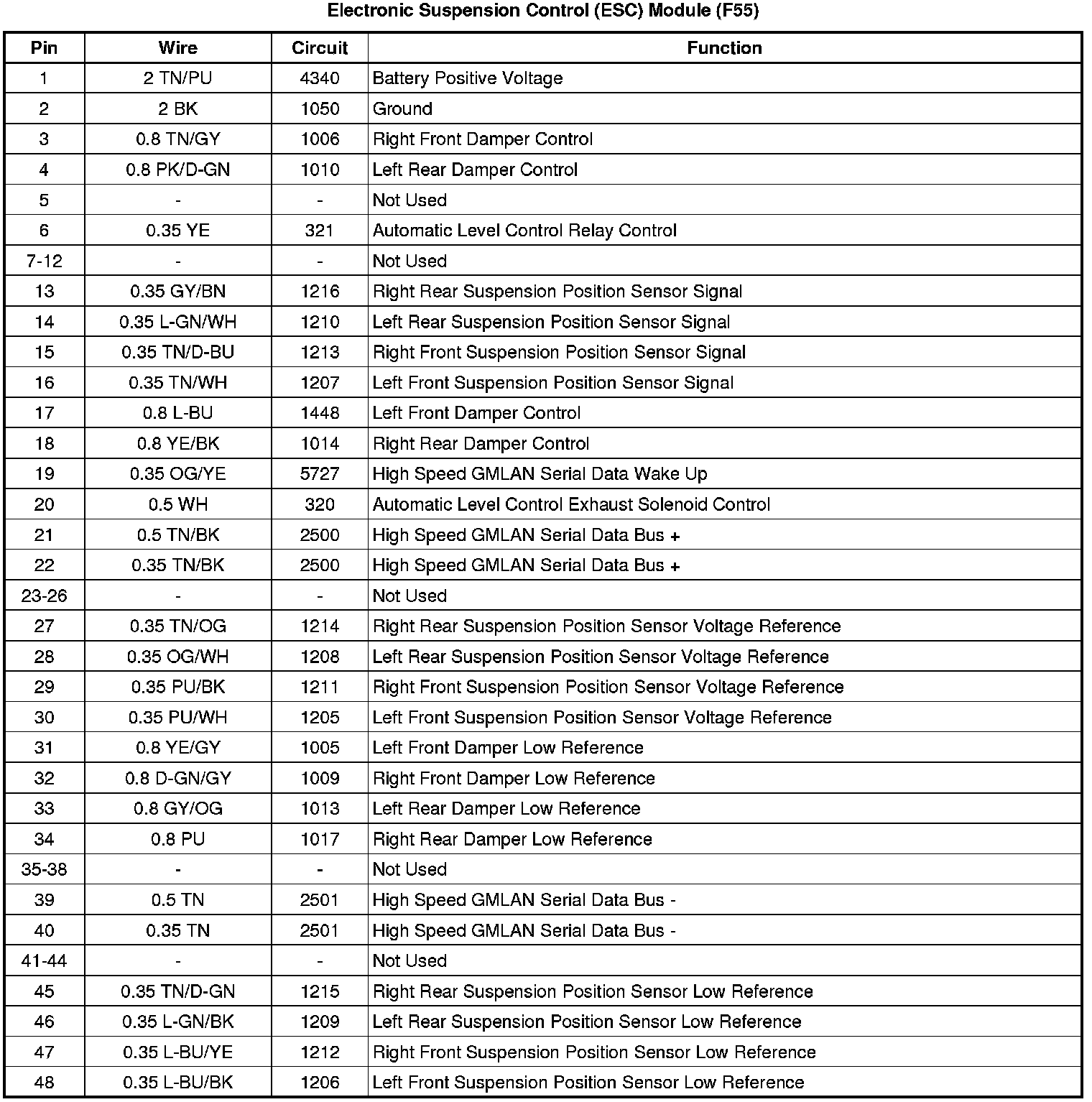

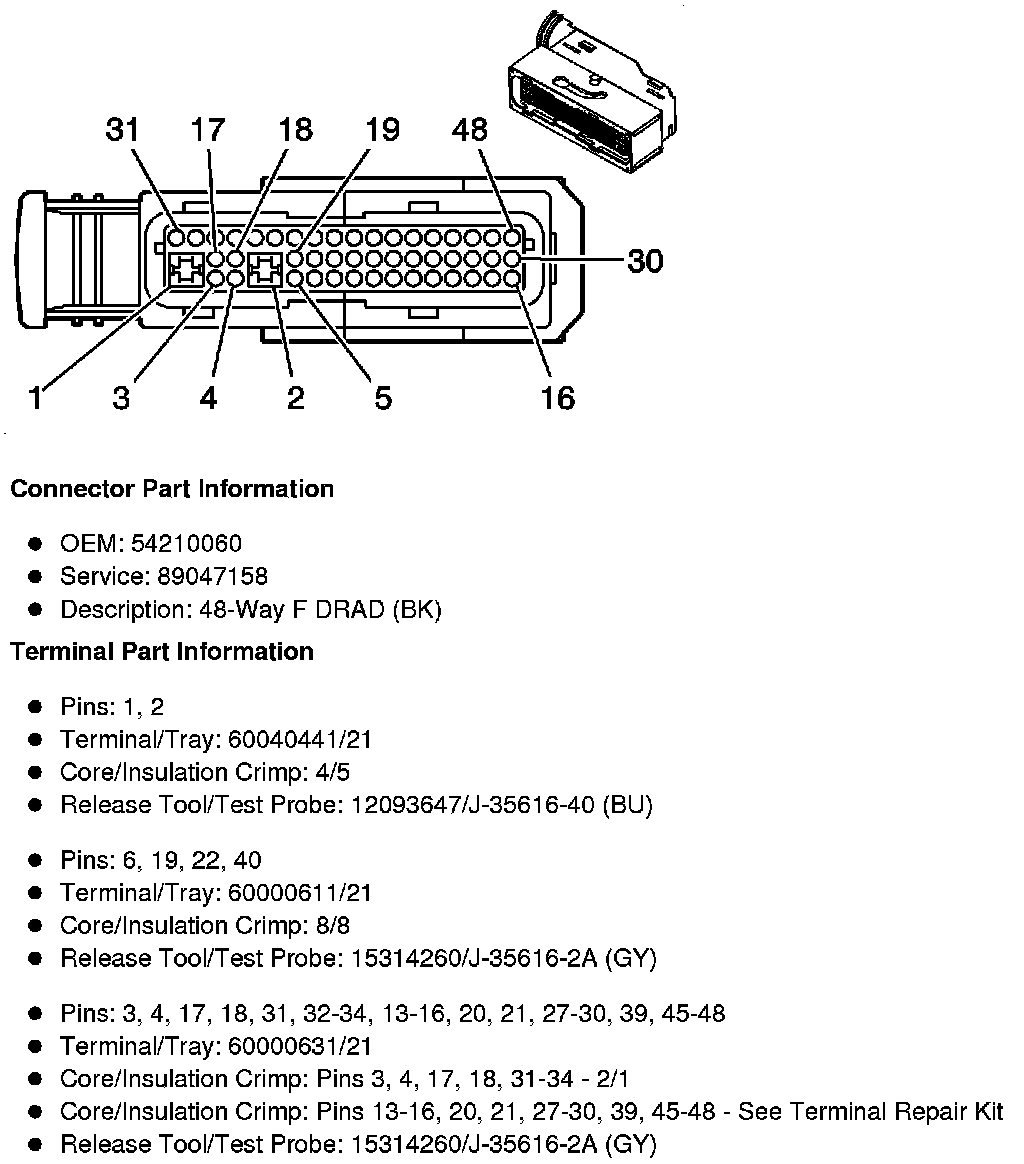

Electronic Suspension Control (ESC) Module (F55)
