Keyless Entry Module
Keyless Entry Module

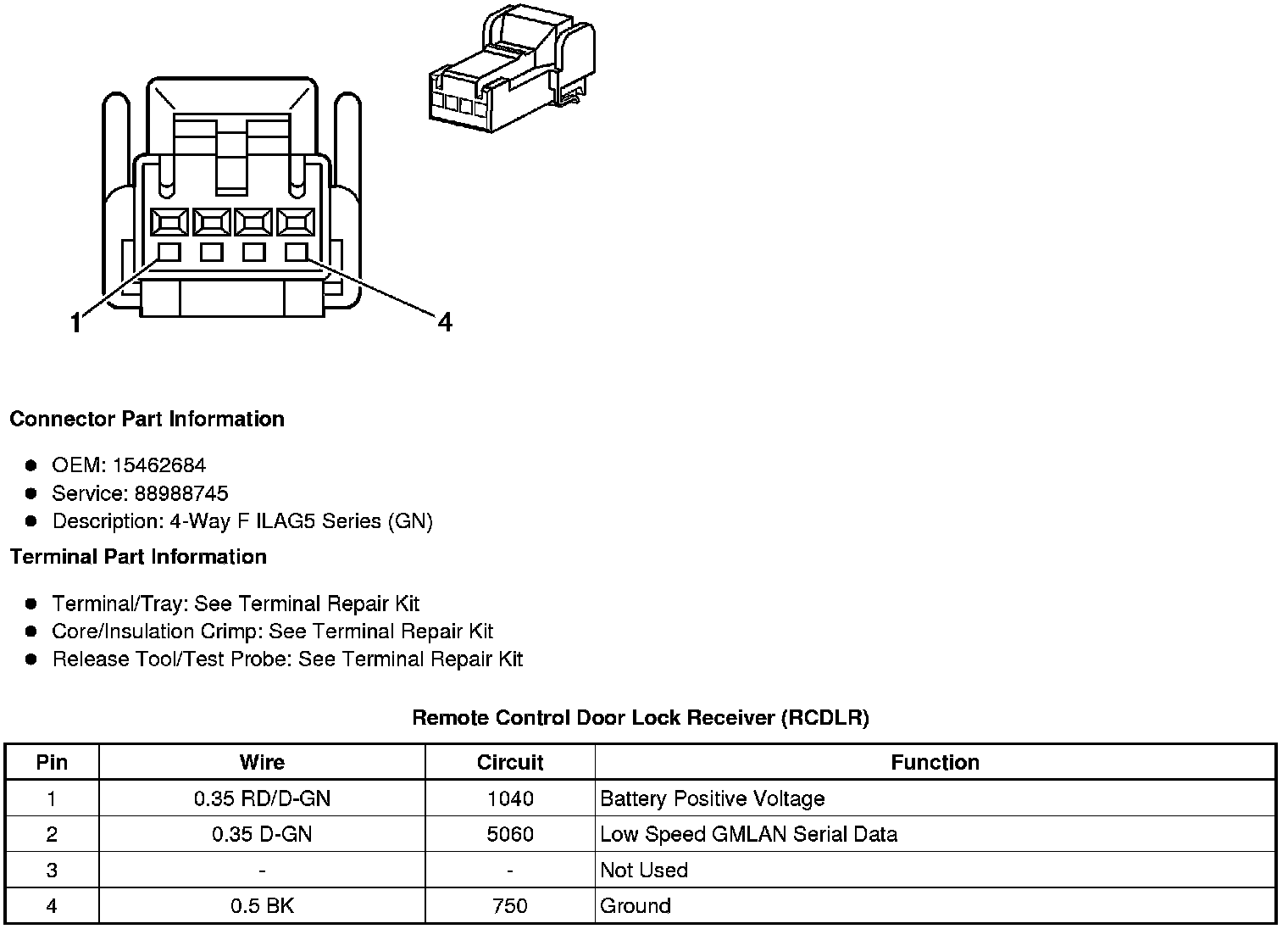

Component Connector End Views
Remote Control Door Lock Receiver (RCDLR)
