Electronic Throttle Control Module
Electronic Throttle Control Module

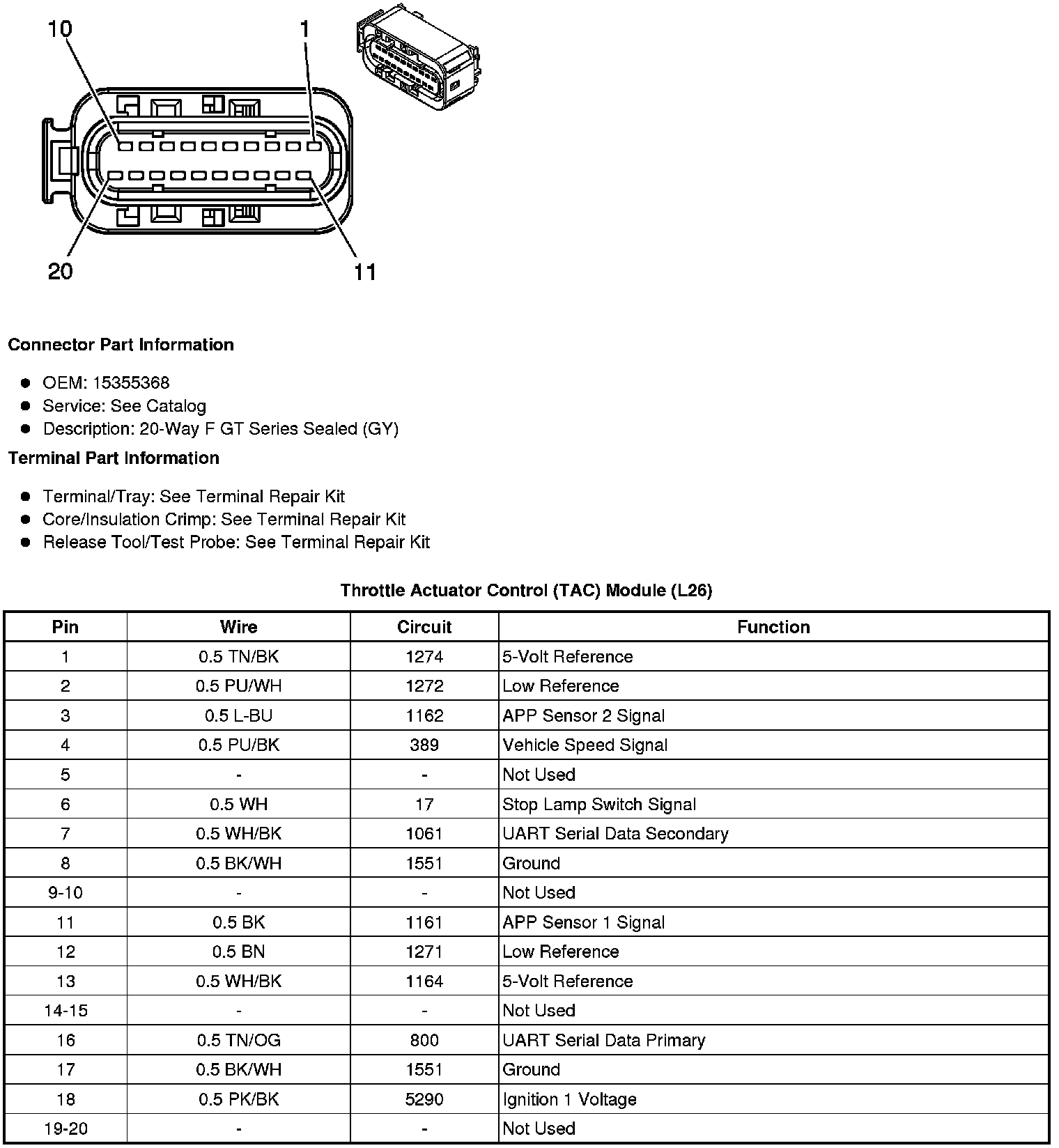

Component Connector End Views
Throttle Actuator Control (TAC) Module (L26/3.8L)
