Collision Avoidance Module
Collision Avoidance Module
Component Connector End Views

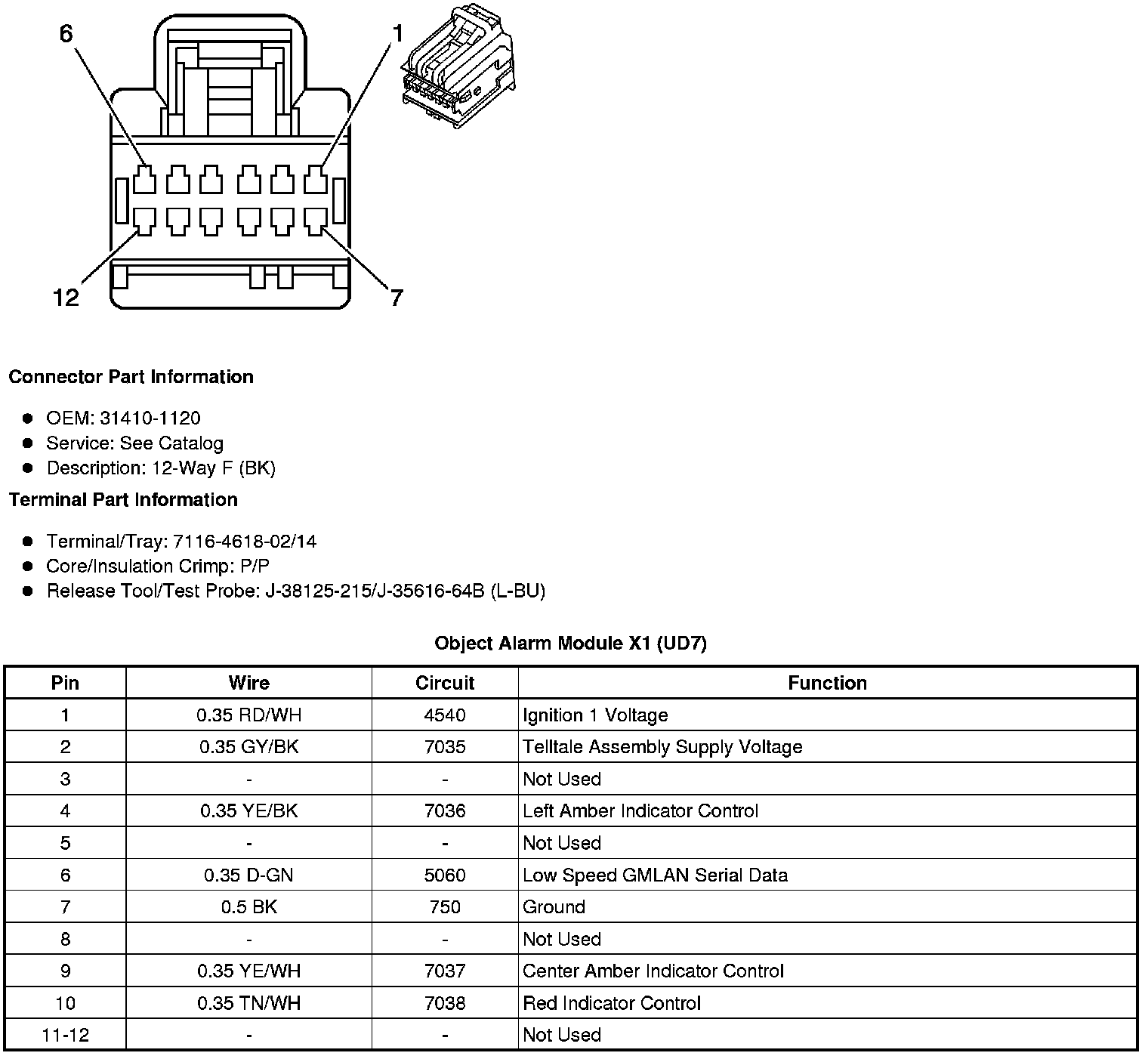

Object
Alarm Module
X1 (UD7)

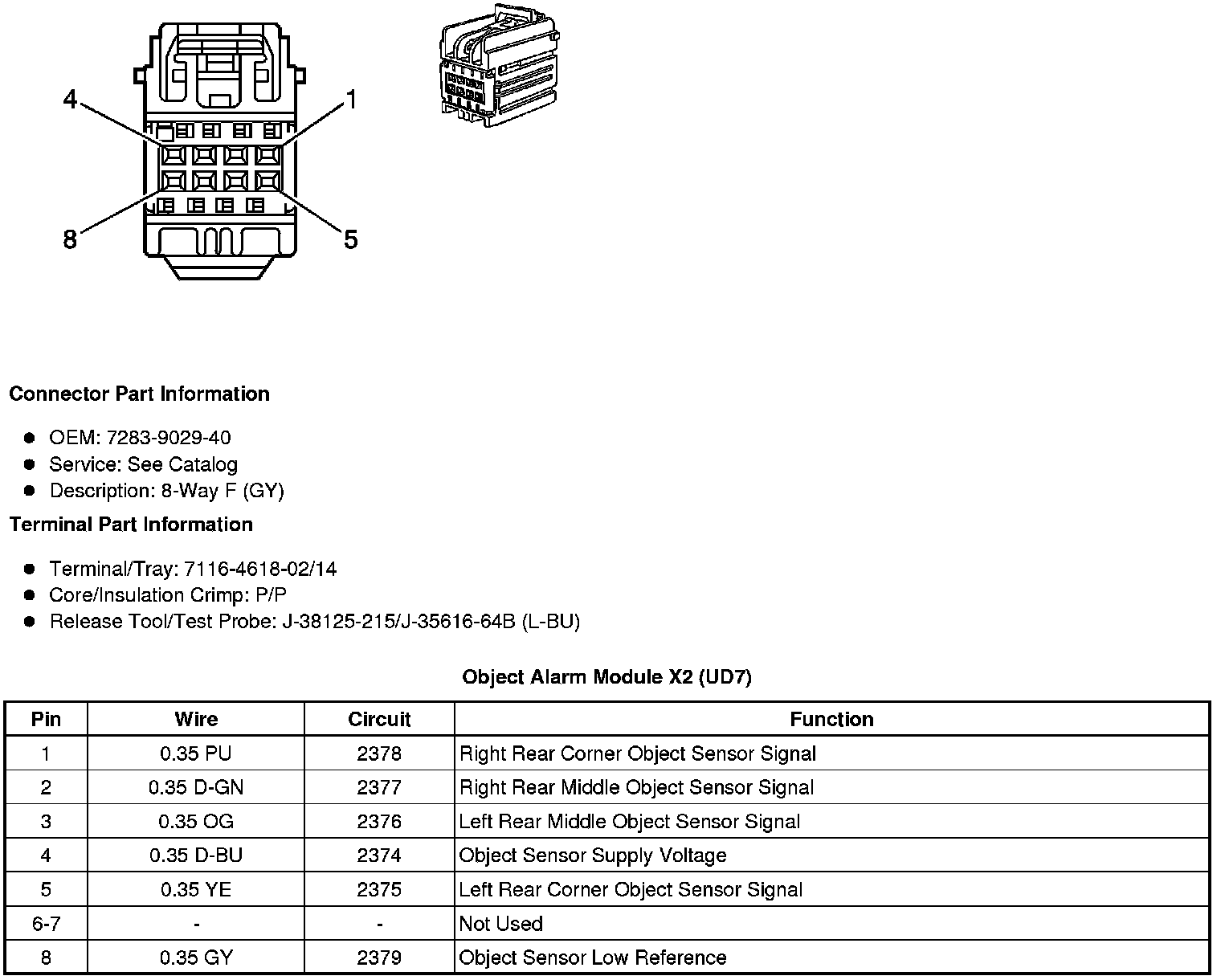

Object
Alarm Module
X2 (UD7)
