Connector Views



Component Connector End Views

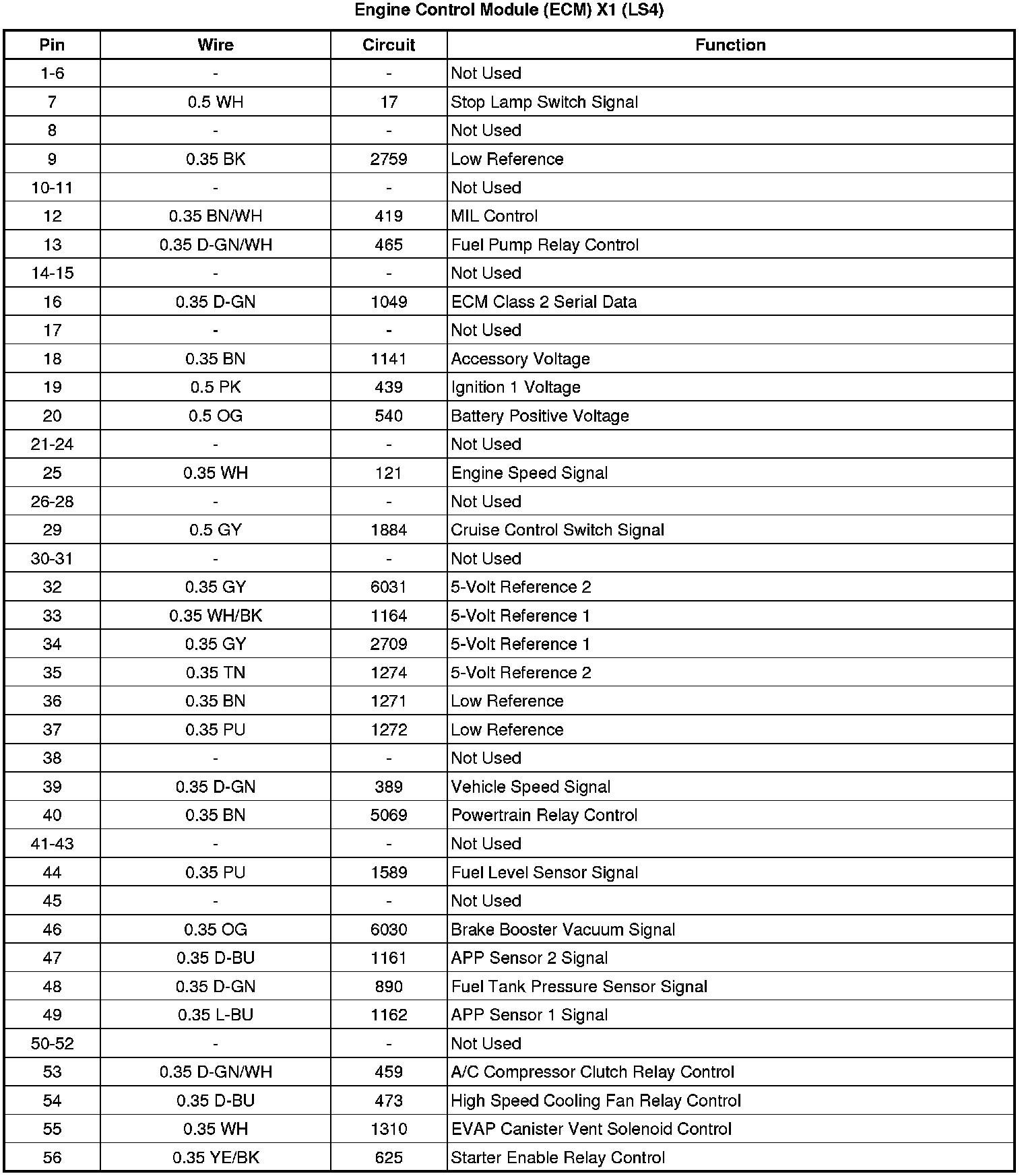

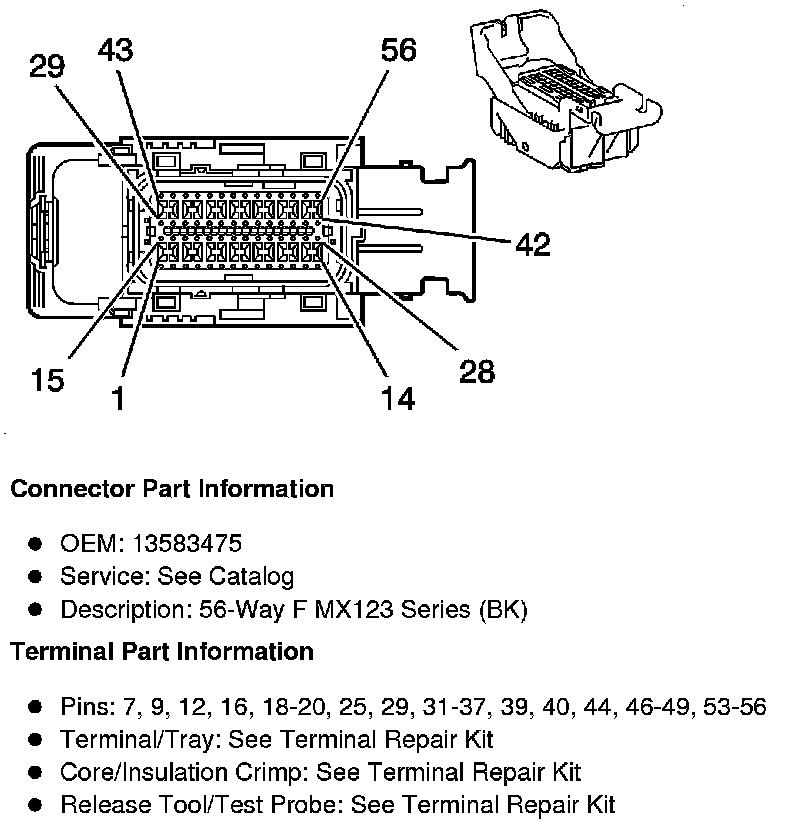

Engine Control Module (ECM) X1 (LS4)

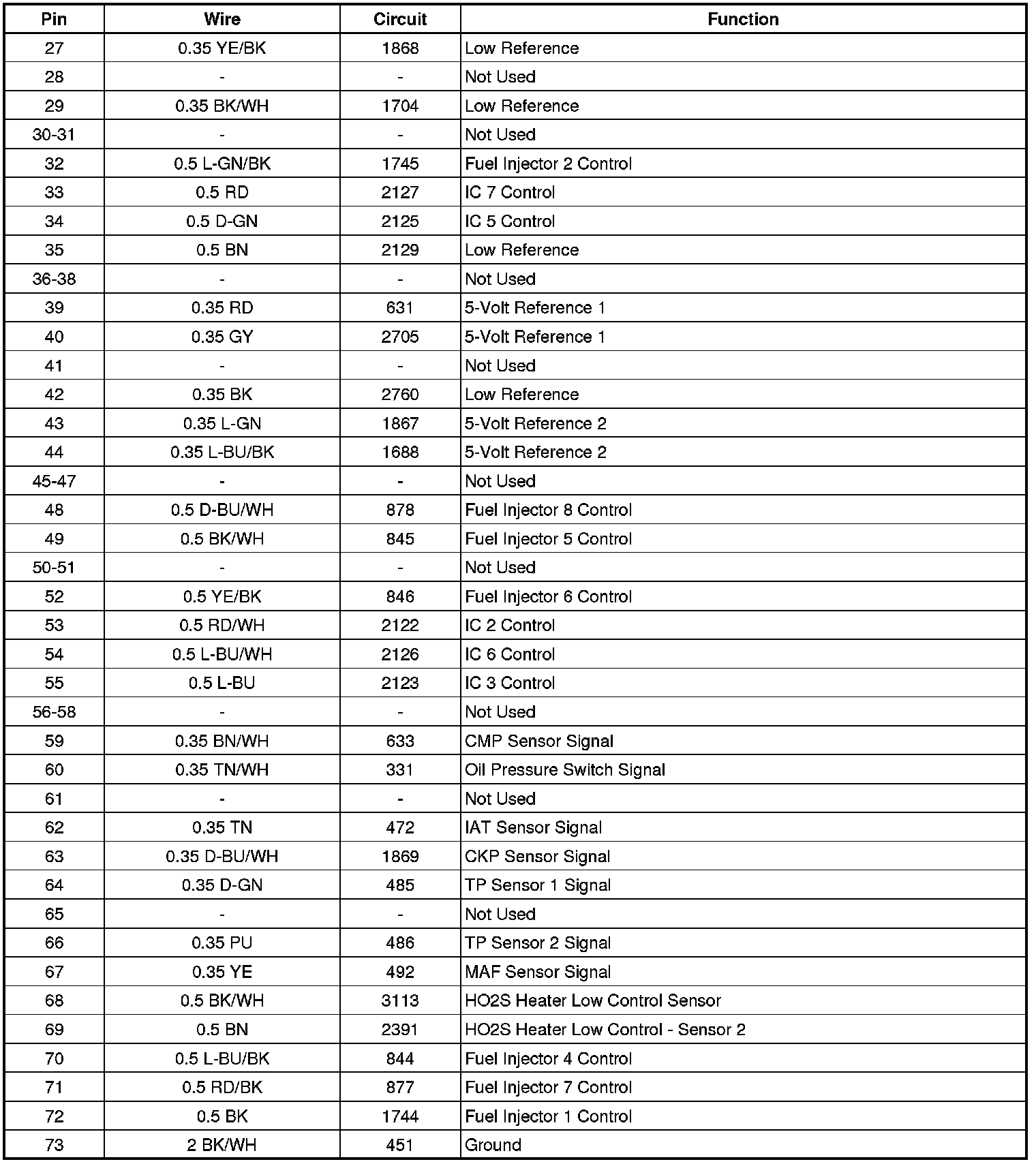

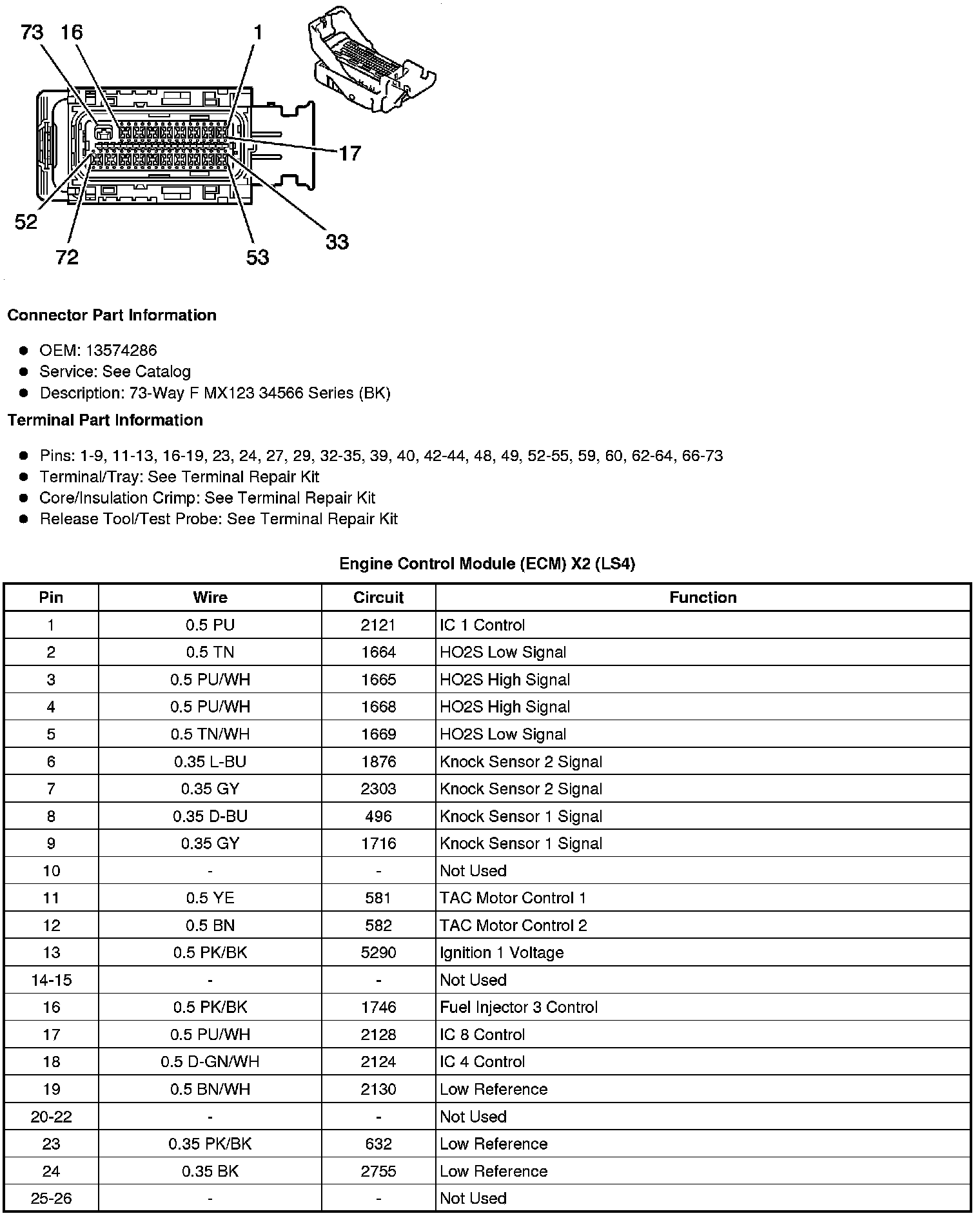

Engine Control Module (ECM) X2 (LS4)

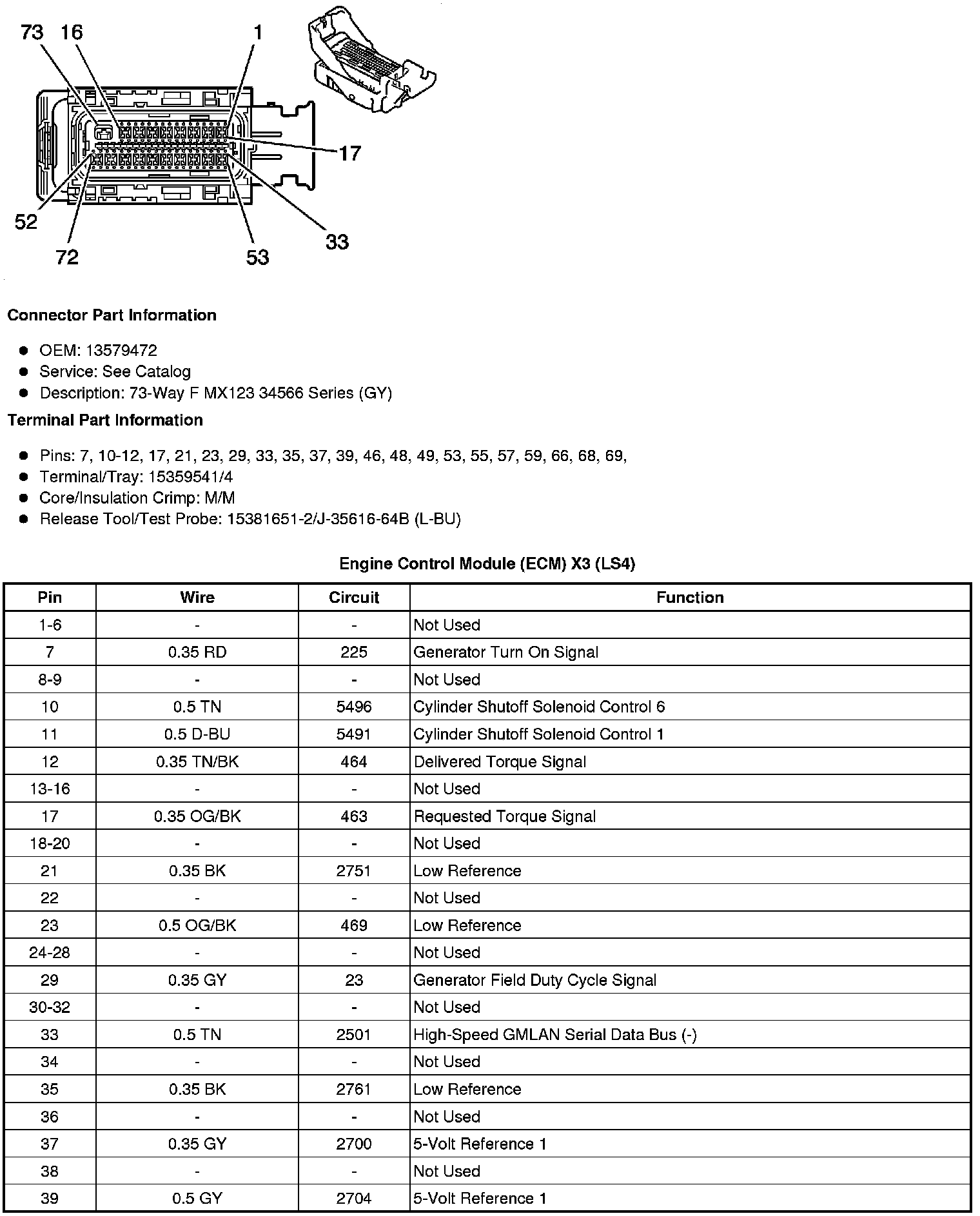

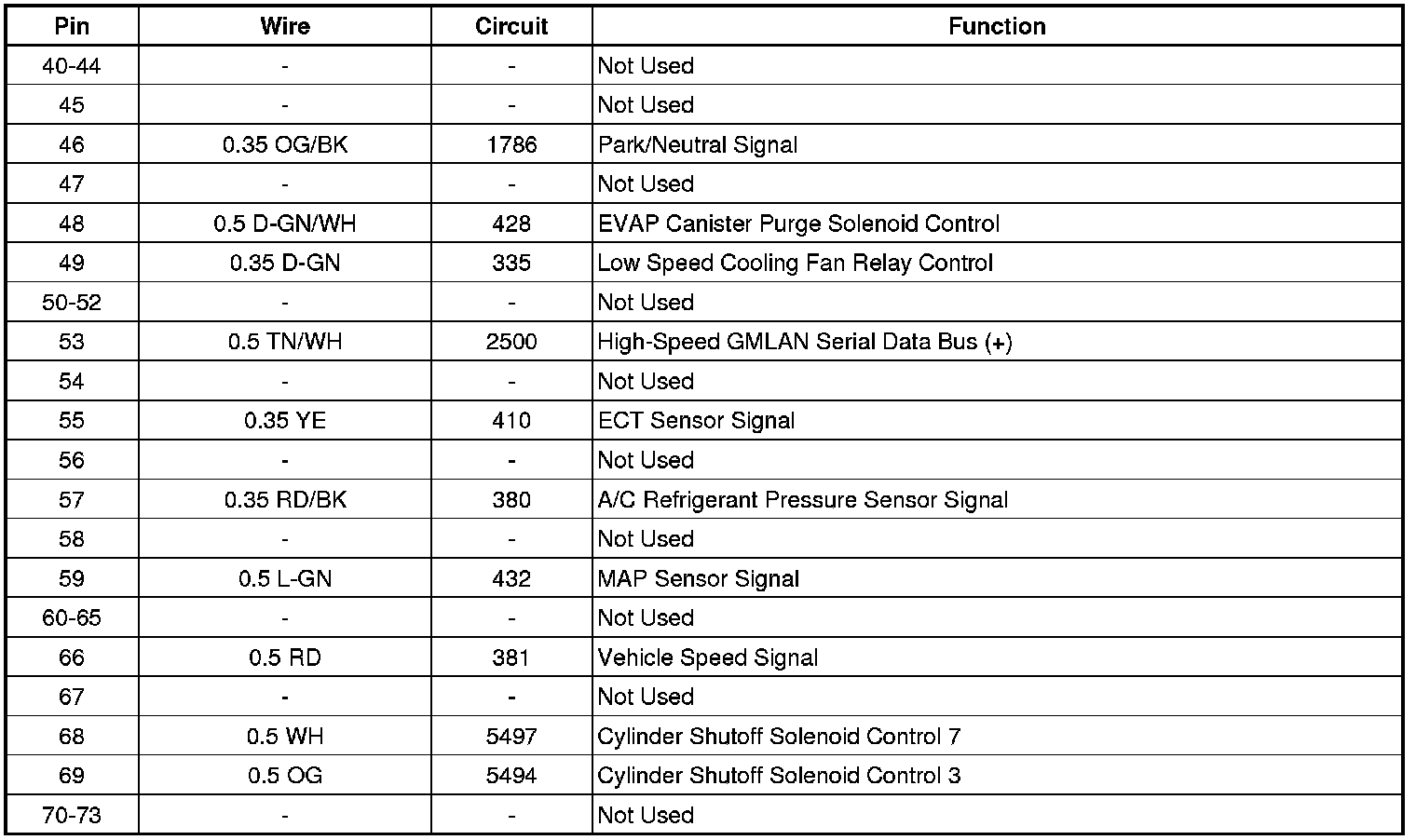

Engine Control Module (ECM) X3 (LS4)
