Air Flow Meter/Sensor: Locations

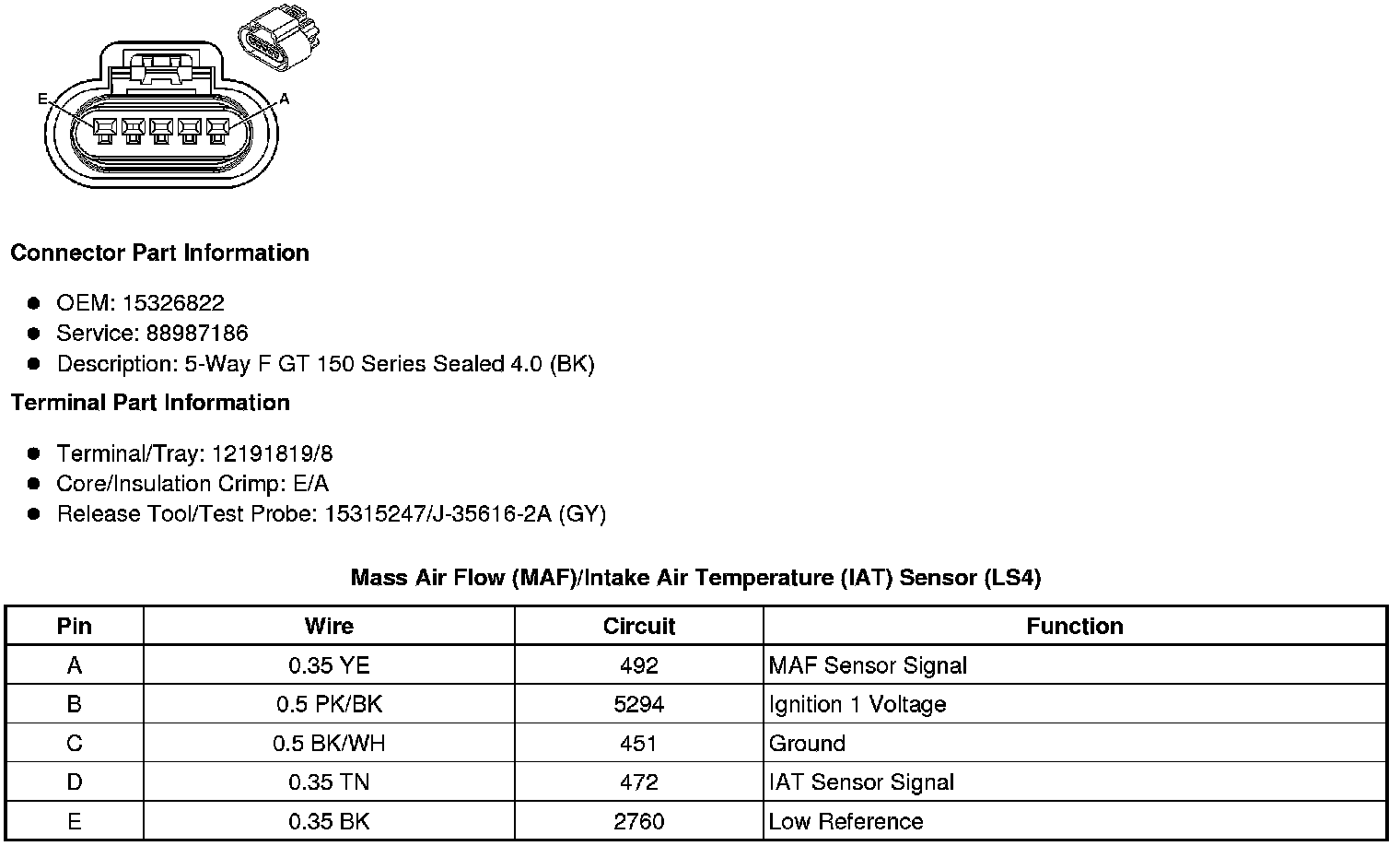

Component Connector End Views

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LS4)
