Buick
>>
2008
>>
LaCrosse V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Control Module
Parking Assist Control Module

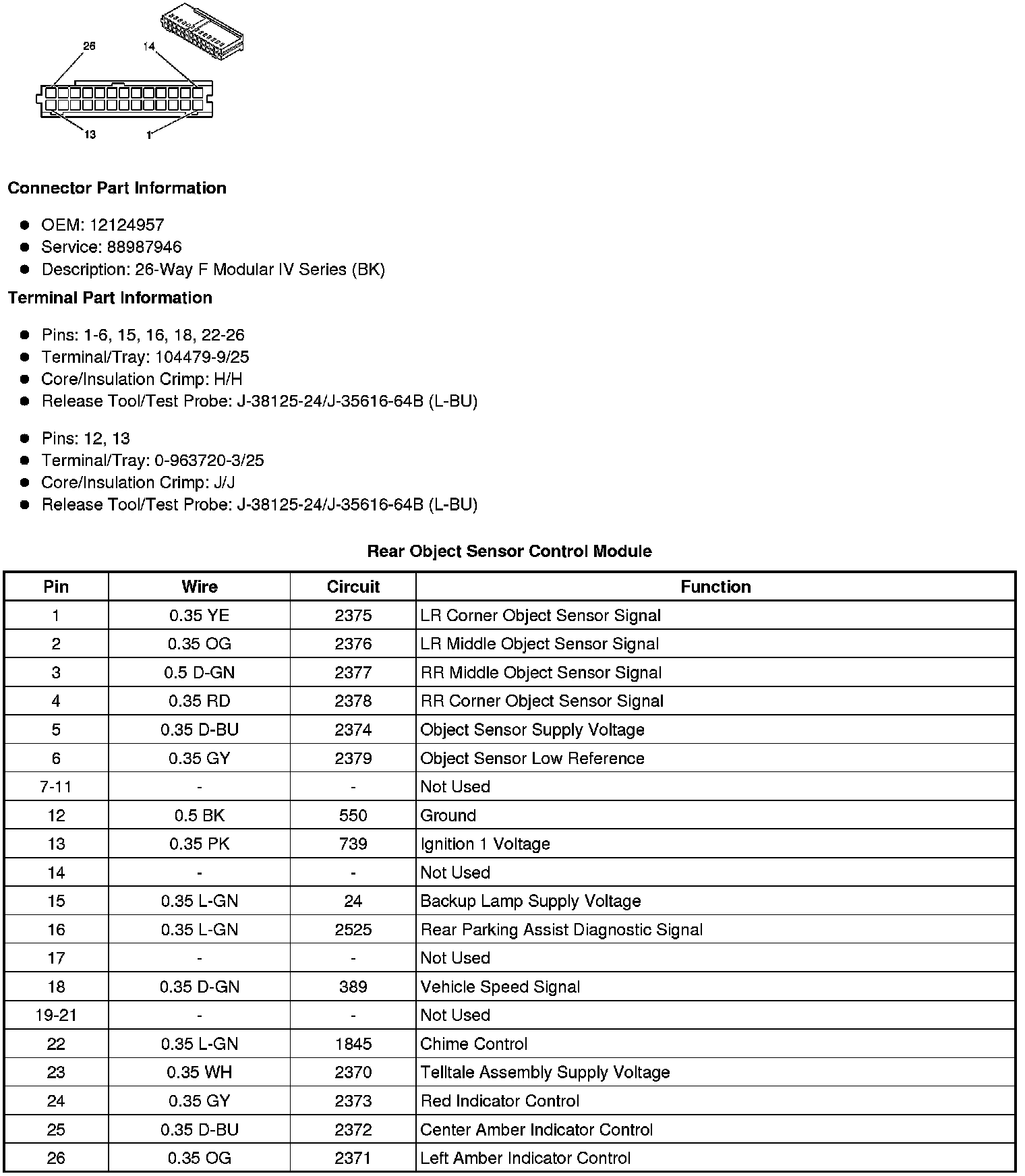

Component Connector End Views
Rear Object Sensor Control Module
