Ignition Control Module
Ignition Control Module
Component Connector End Views

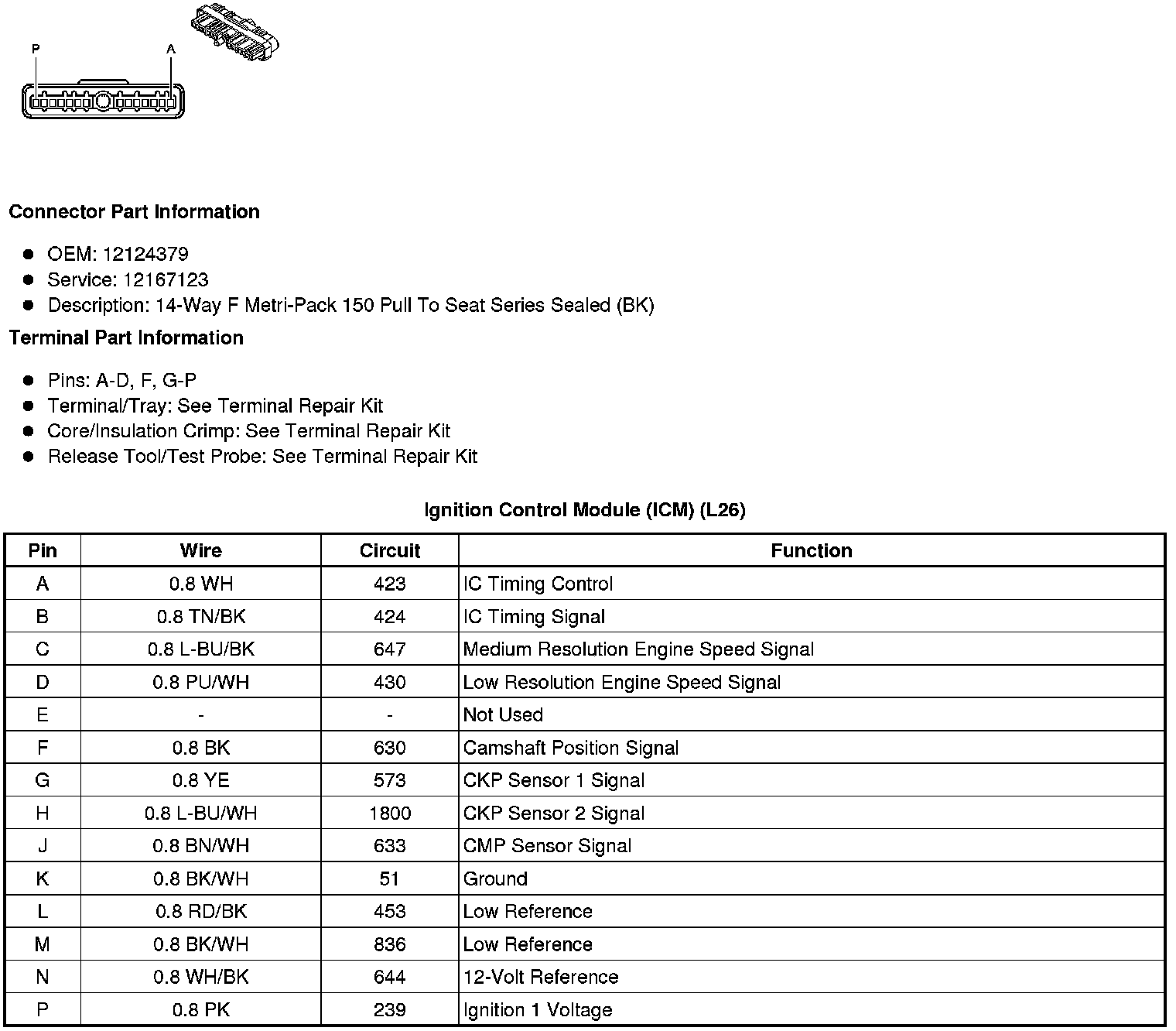

Ignition Control Module (ICM) (L26)
