Buick
>>
2008
>>
LaCrosse V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module
Component Connector End Views

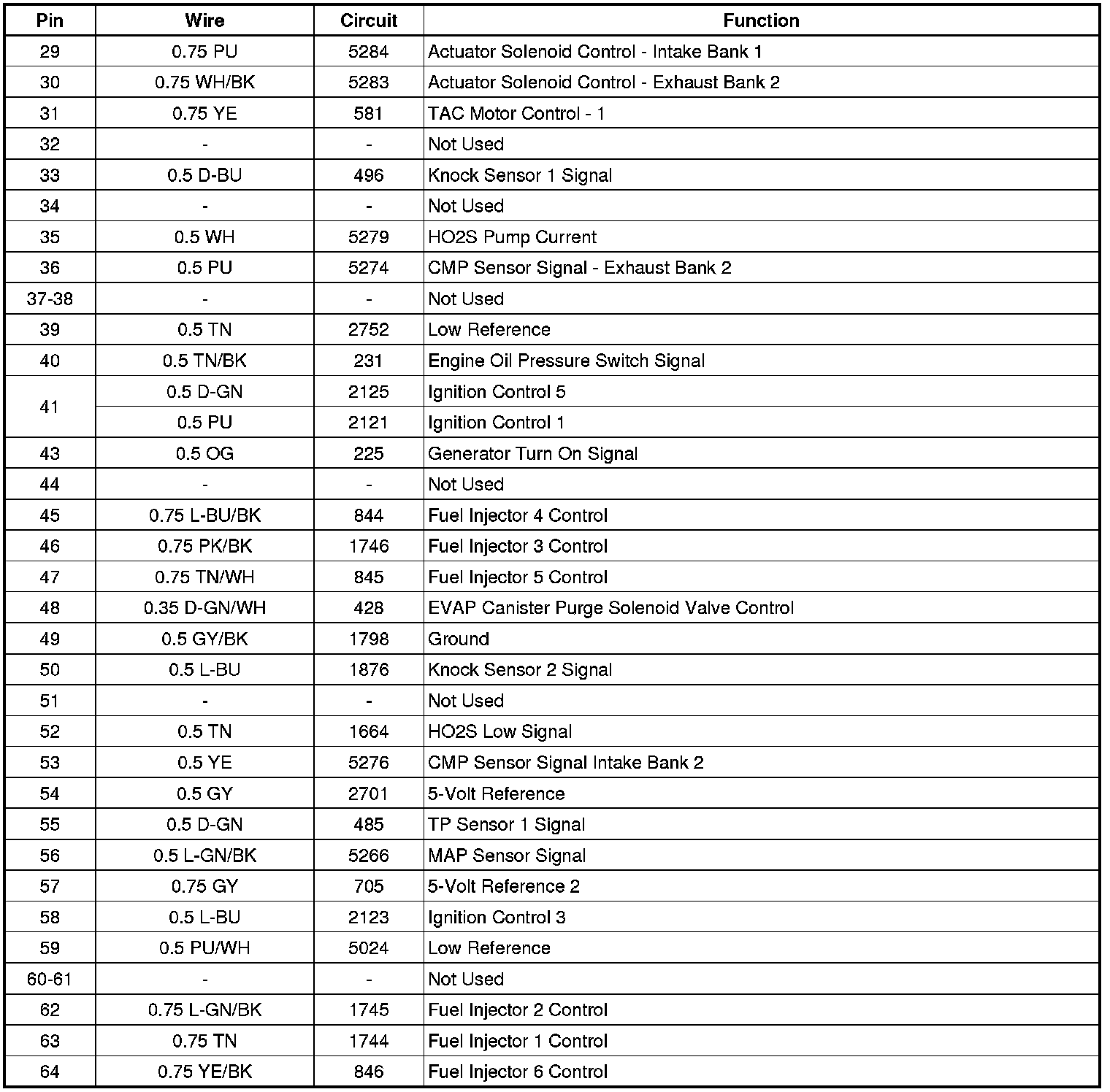

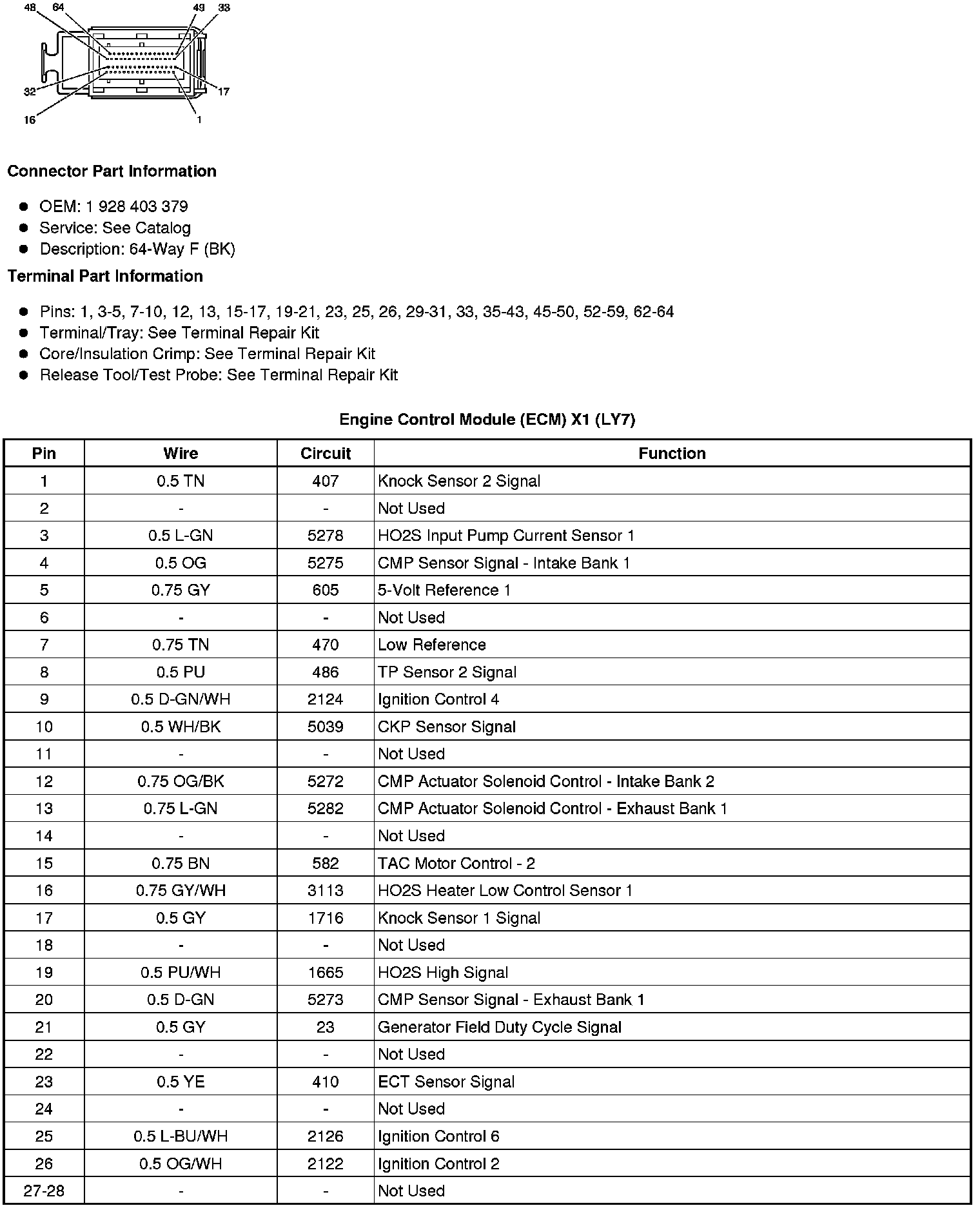

Engine Control Module (ECM) X1 (LY7)

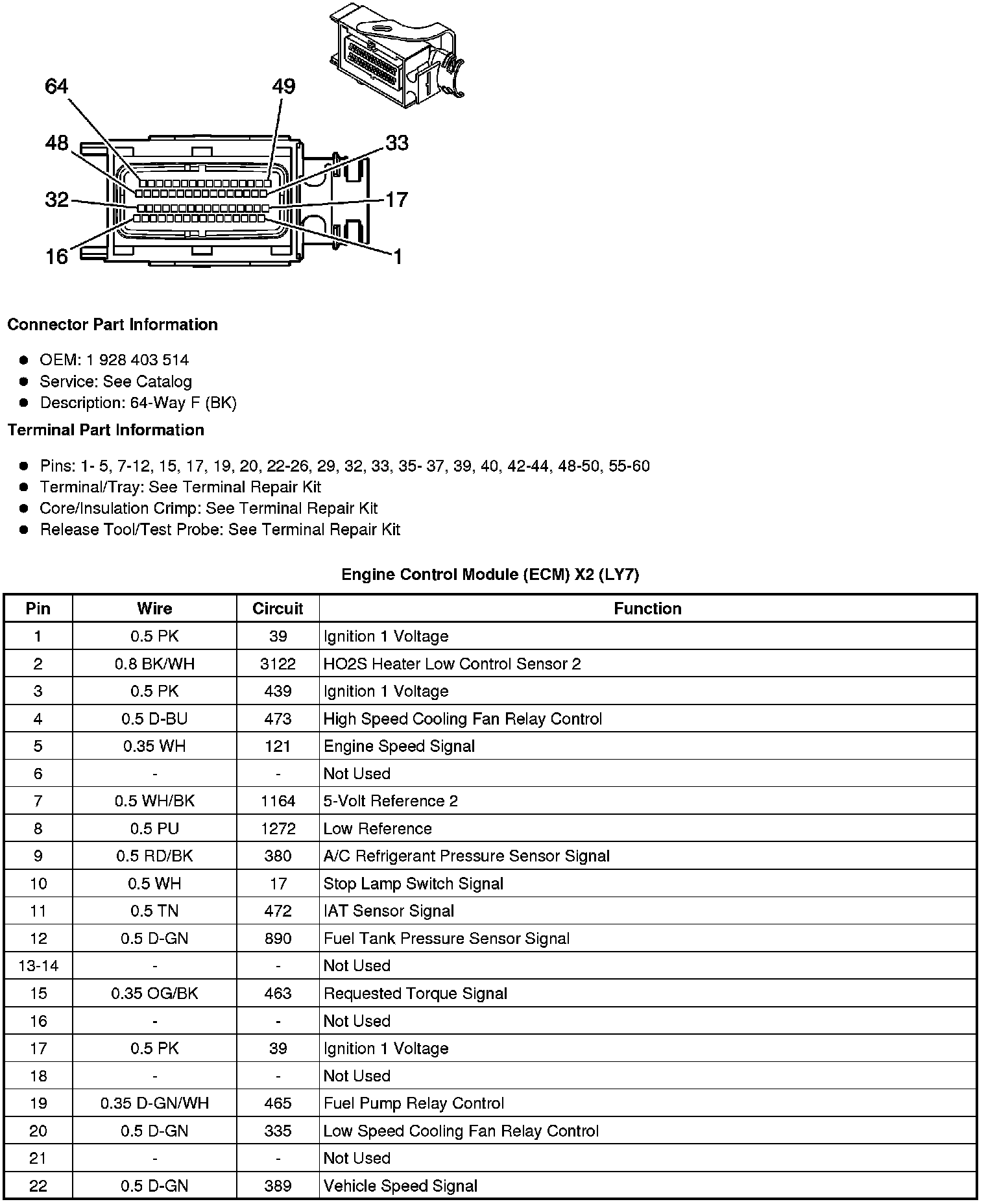

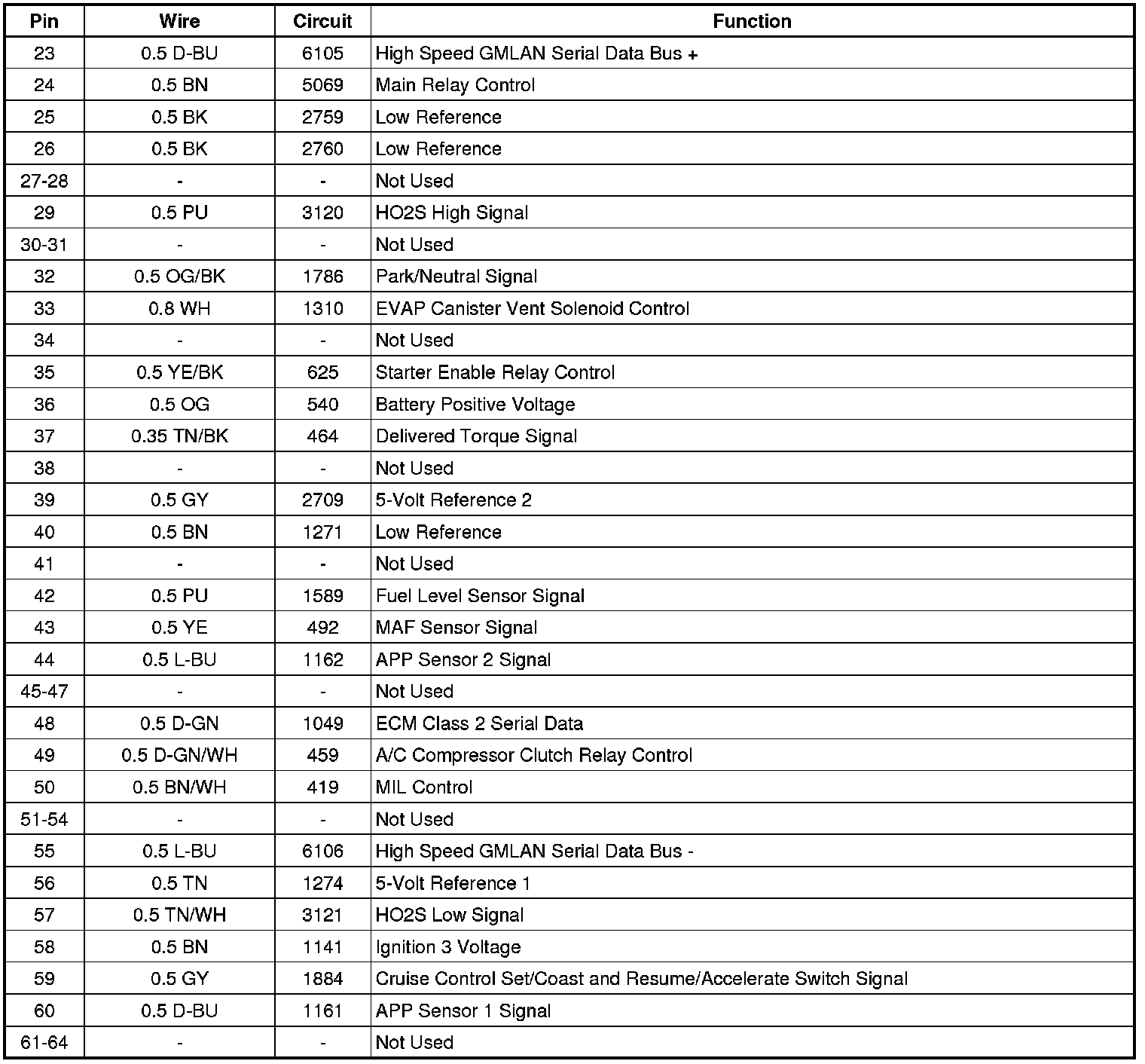

Engine Control Module (ECM) X2 (LY7)
