Connector Views



Powertrain Control Module Connector End Views

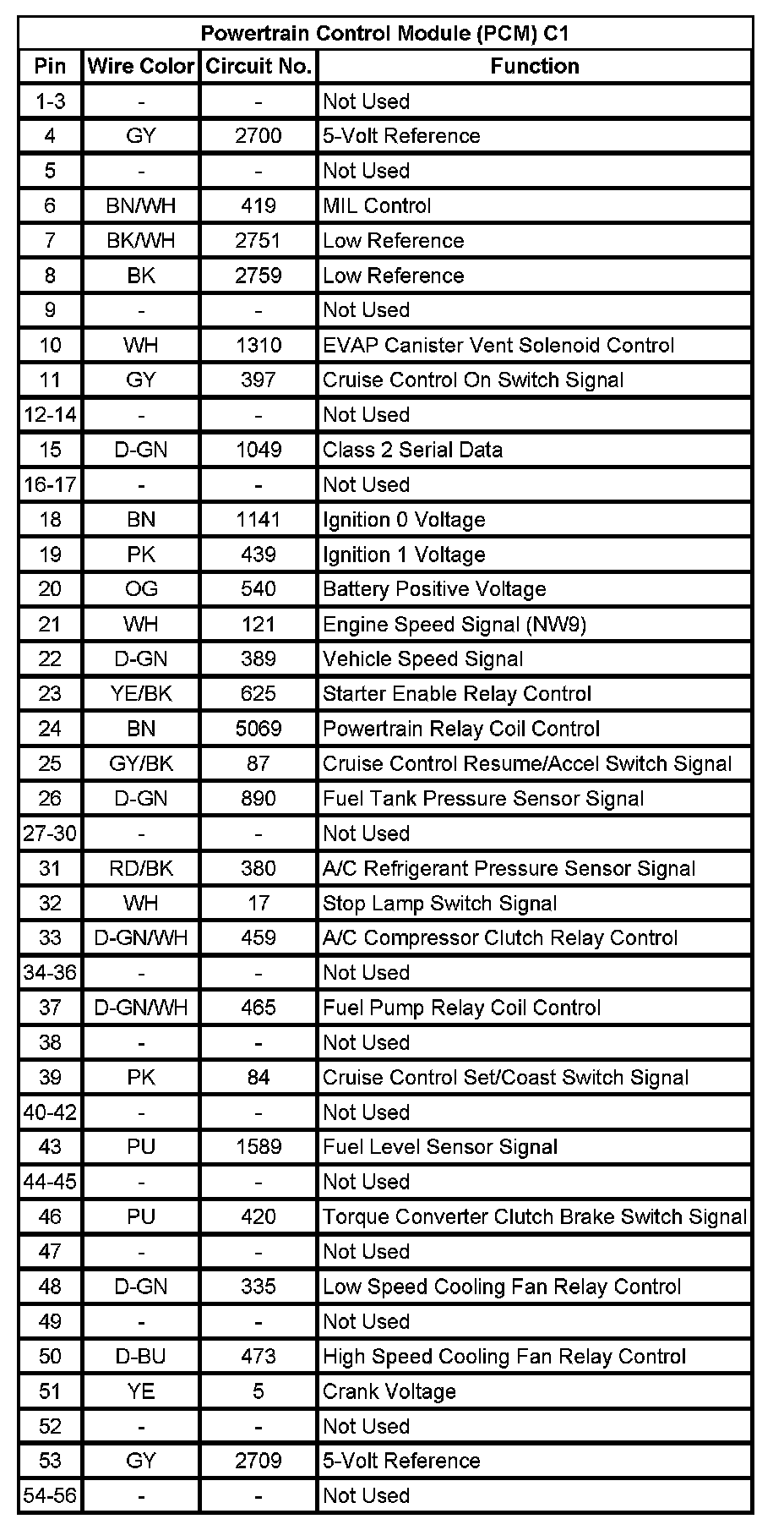

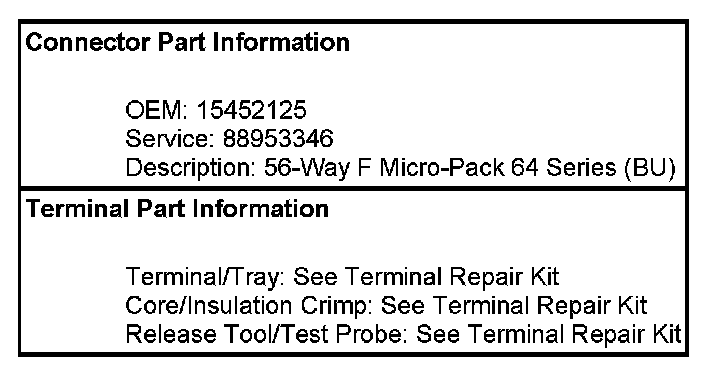

Powertrain Control Module (PCM) C1

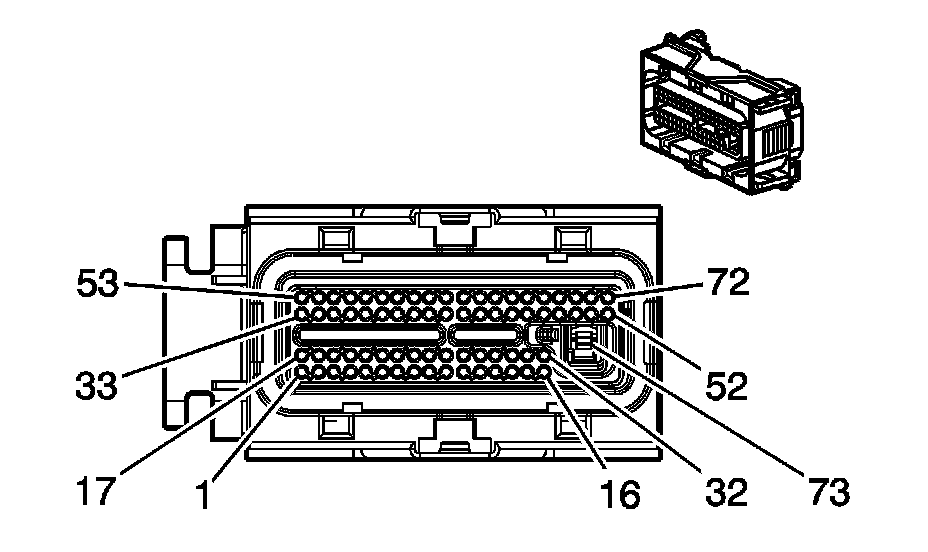

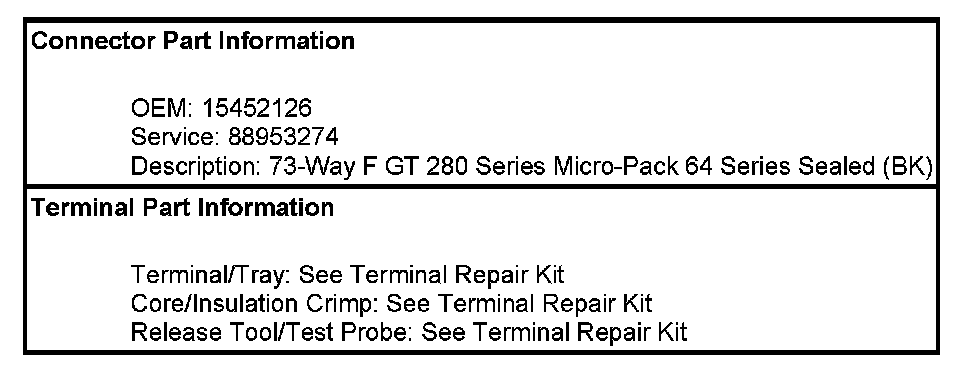

Powertrain Control Module (PCM) C2

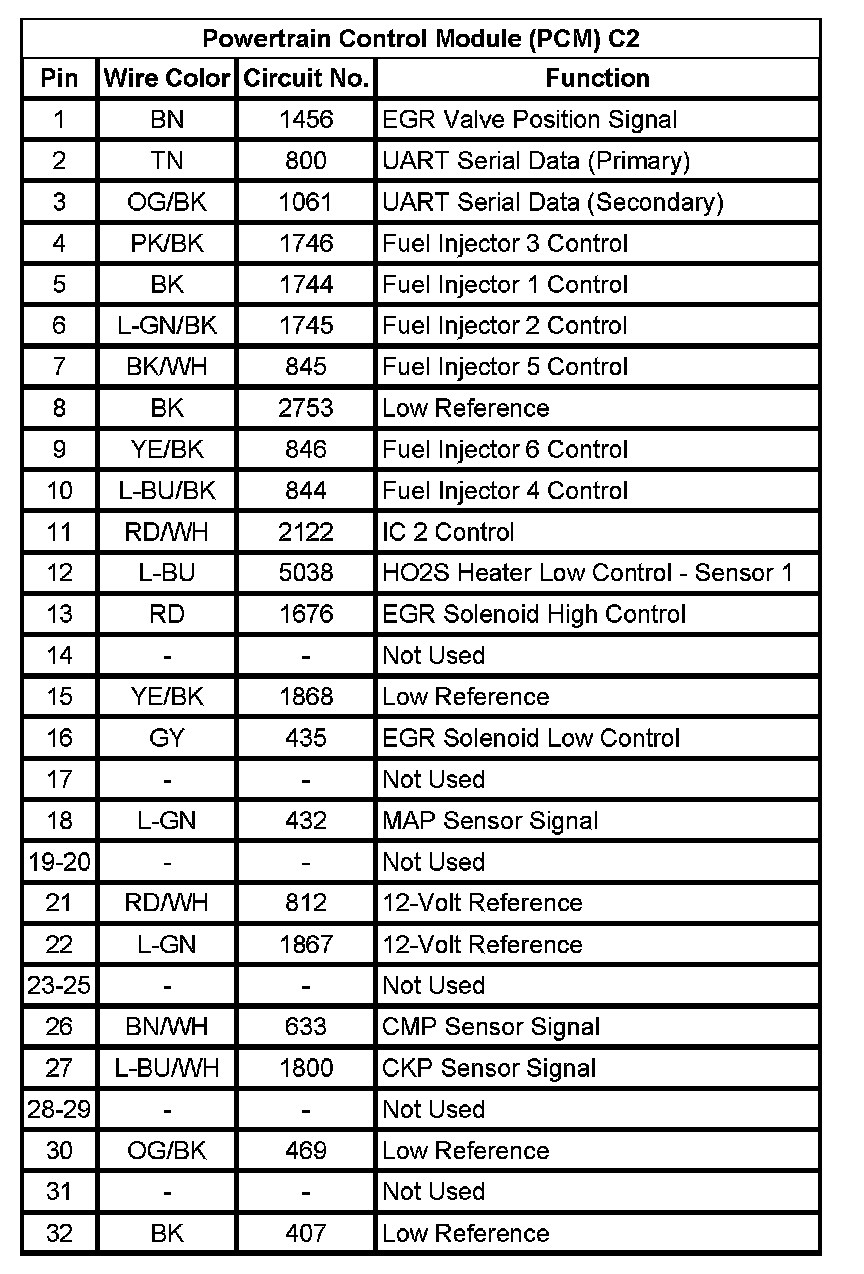

Powertrain Control Module (PCM) C2 (Pin 1 To 32):

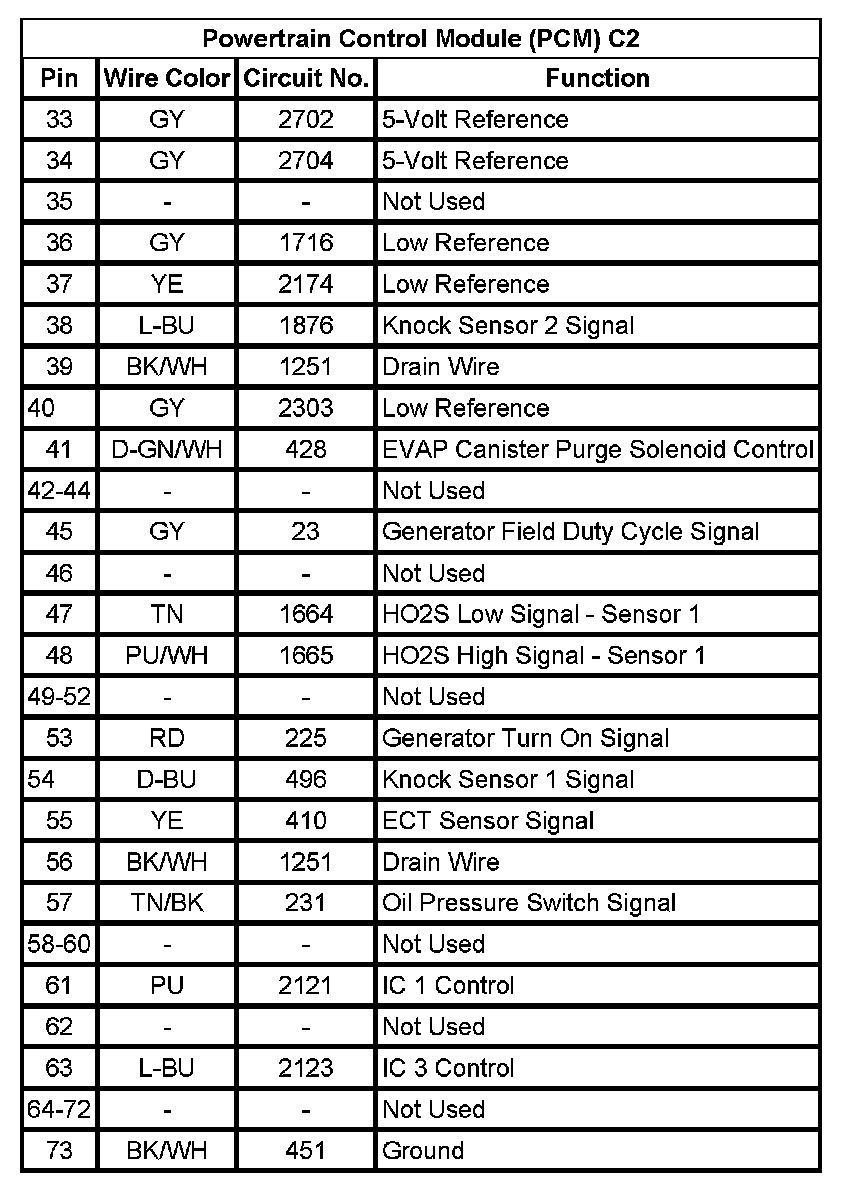

Powertrain Control Module (PCM) C2 (Pin 33 To 73):

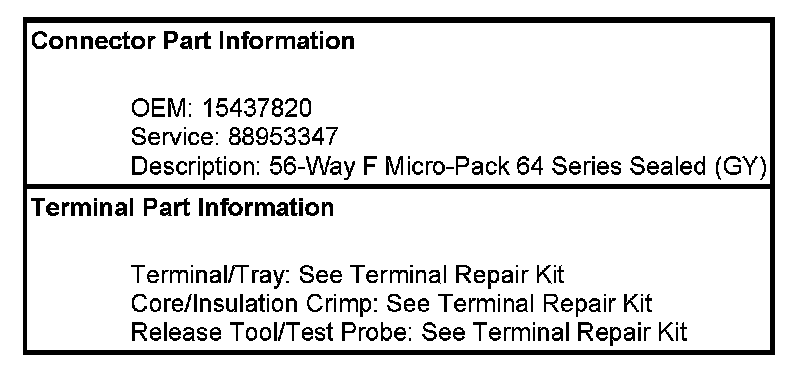

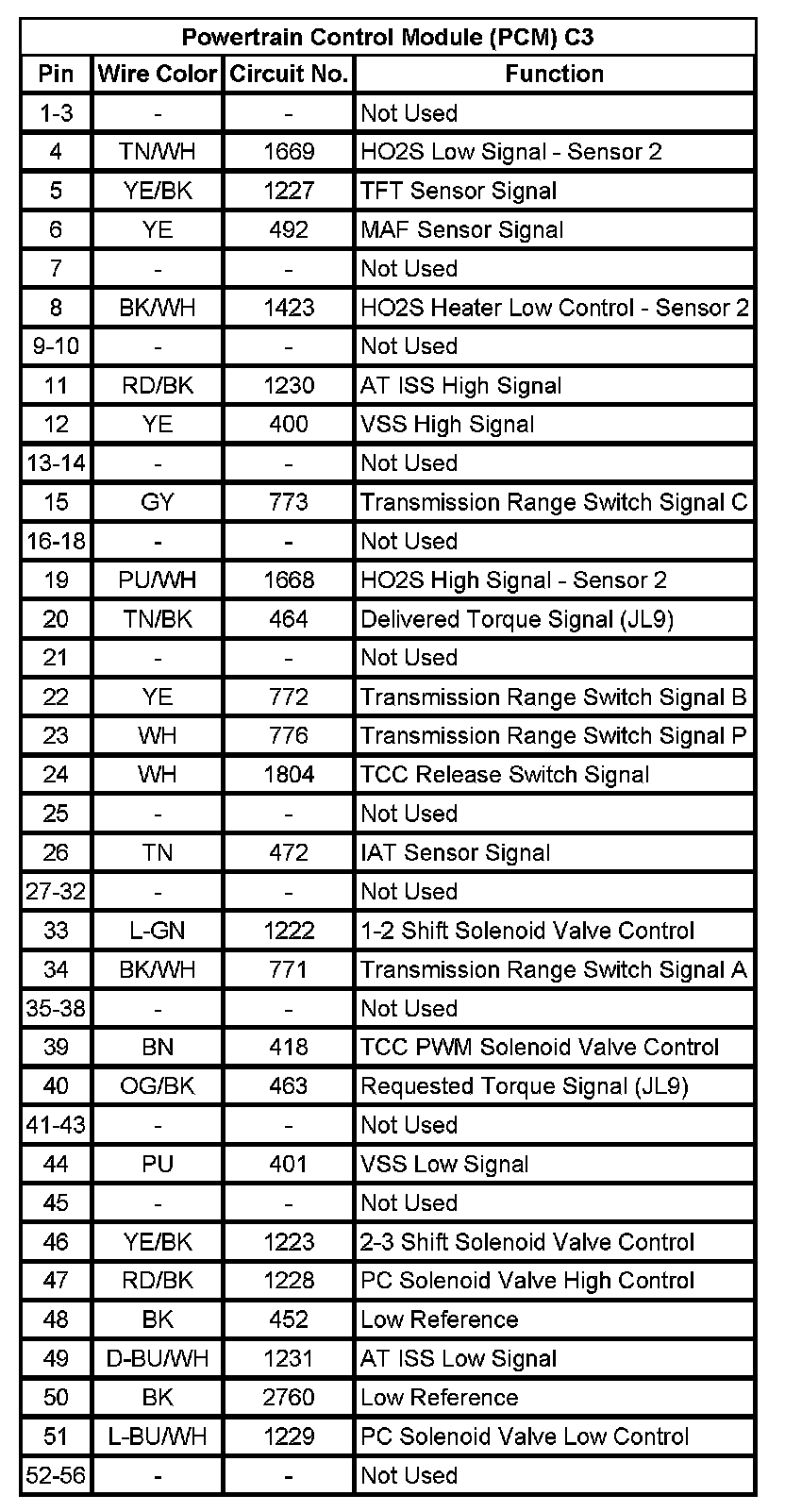

Powertrain Control Module (PCM) C3
