Knock Sensor: Locations

Engine Controls Component Views

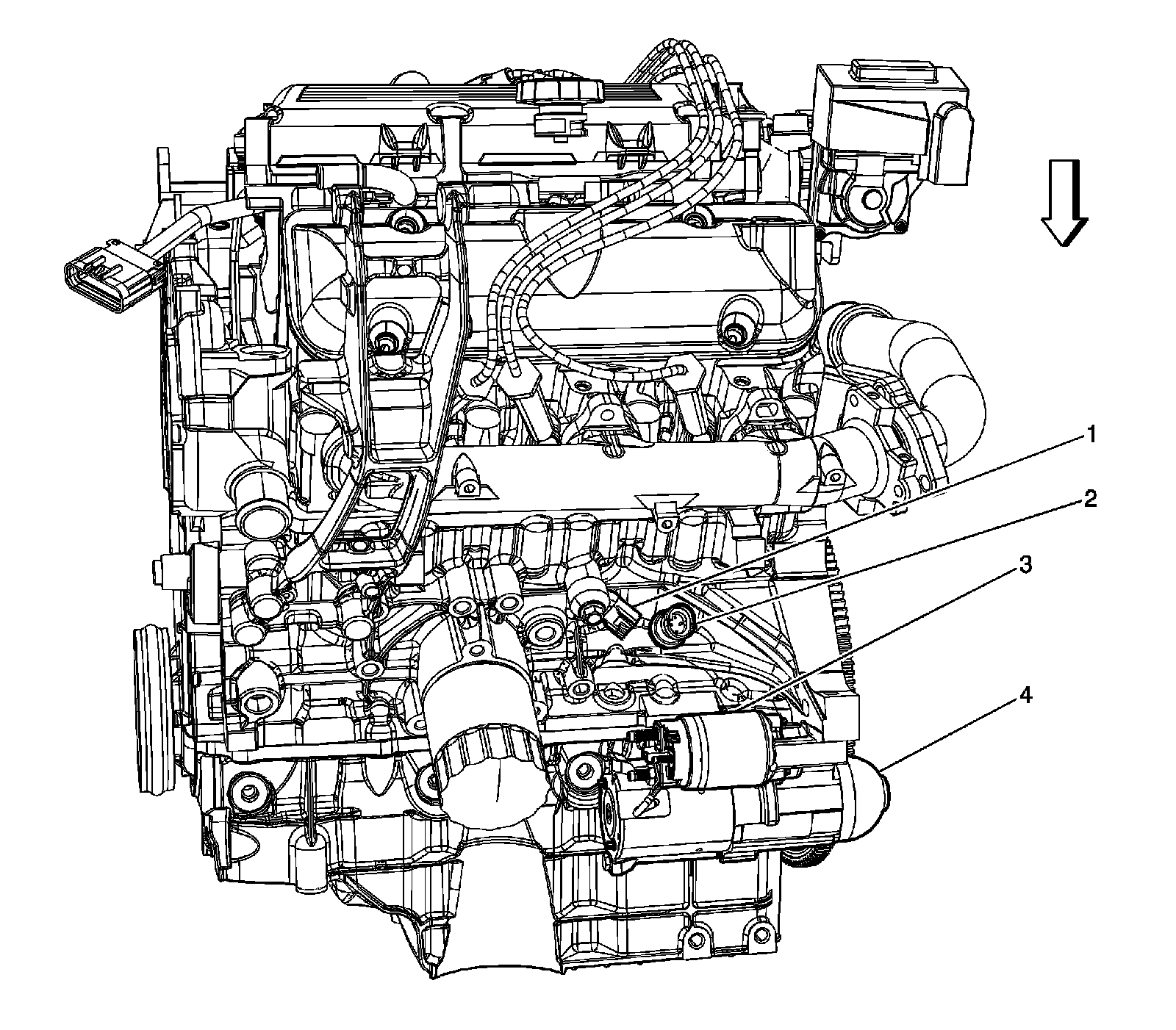

Front of Engine Components - LX9




1 - Knock Sensor (KS) 1
2 - Engine Oil Pressure (EOP) Switch
3 - Starter Motor Solenoid
4 - Starter Motor

Rear Engine Components - LX9




1 - Ignition Control Module (ICM)
2 - Knock Sensor (KS) 2
3 - Crankshaft Position (CKP) Sensor
4 - Heated Oxygen Sensor (HO2S) 1
