Memory Positioning Module

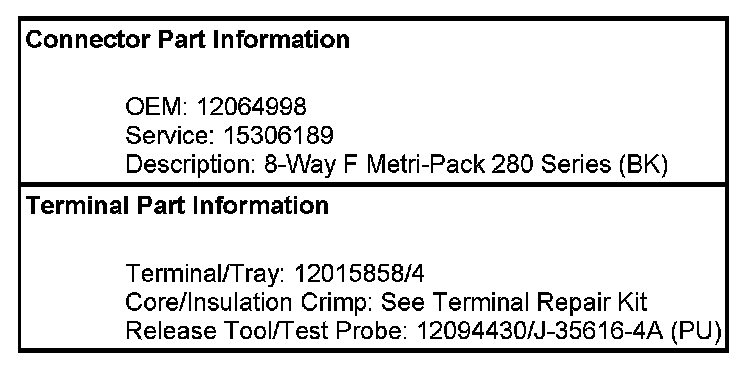

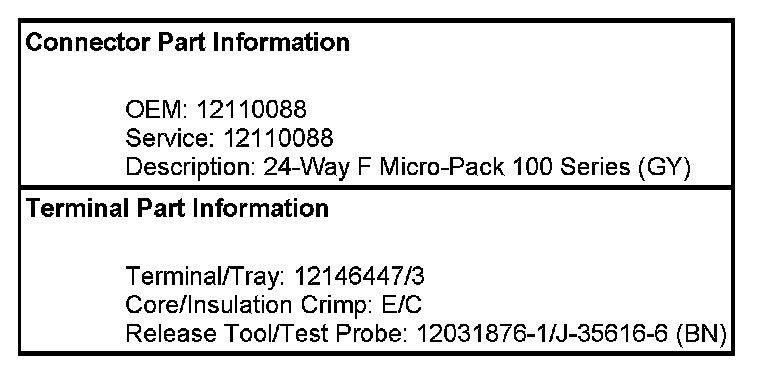

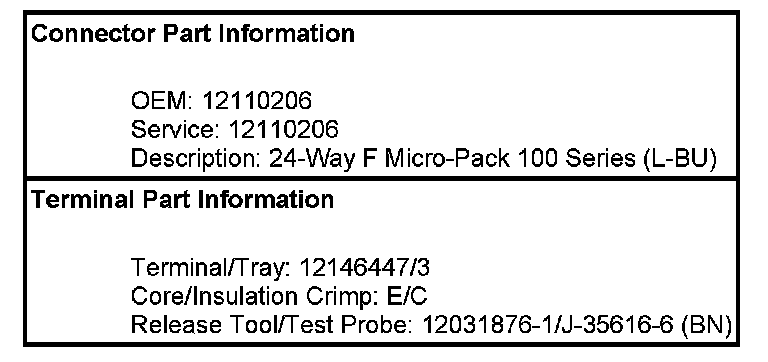

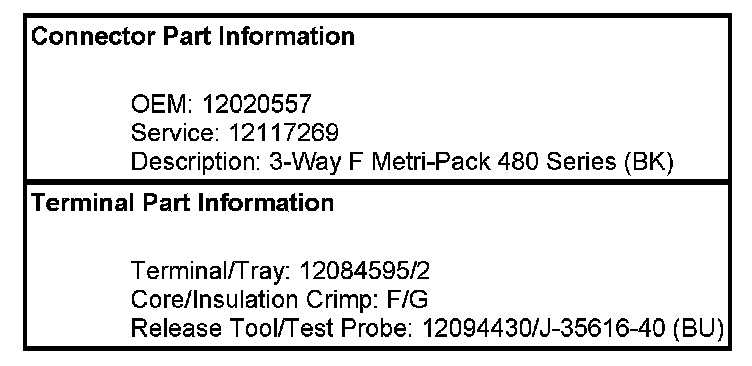

Power Seat Connector End Views

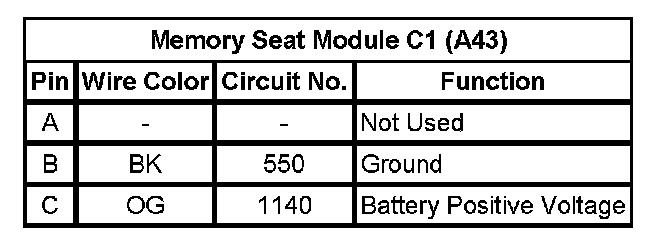

Memory Seat Module C1 (A43)

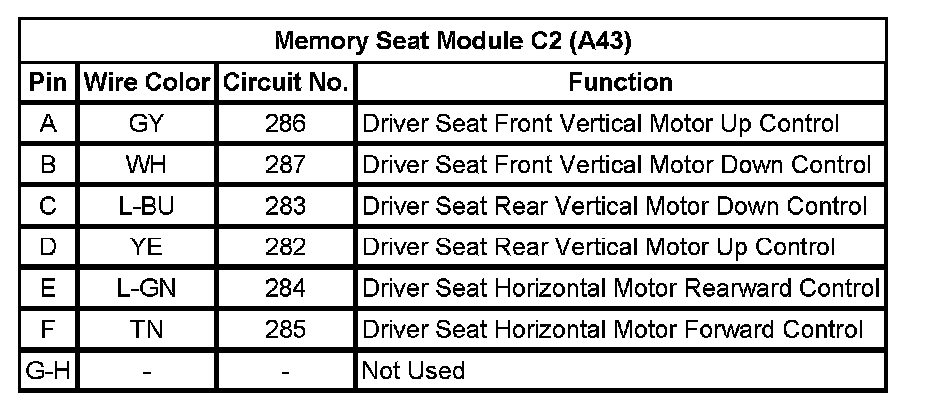

Memory Seat Module C2 (A43)

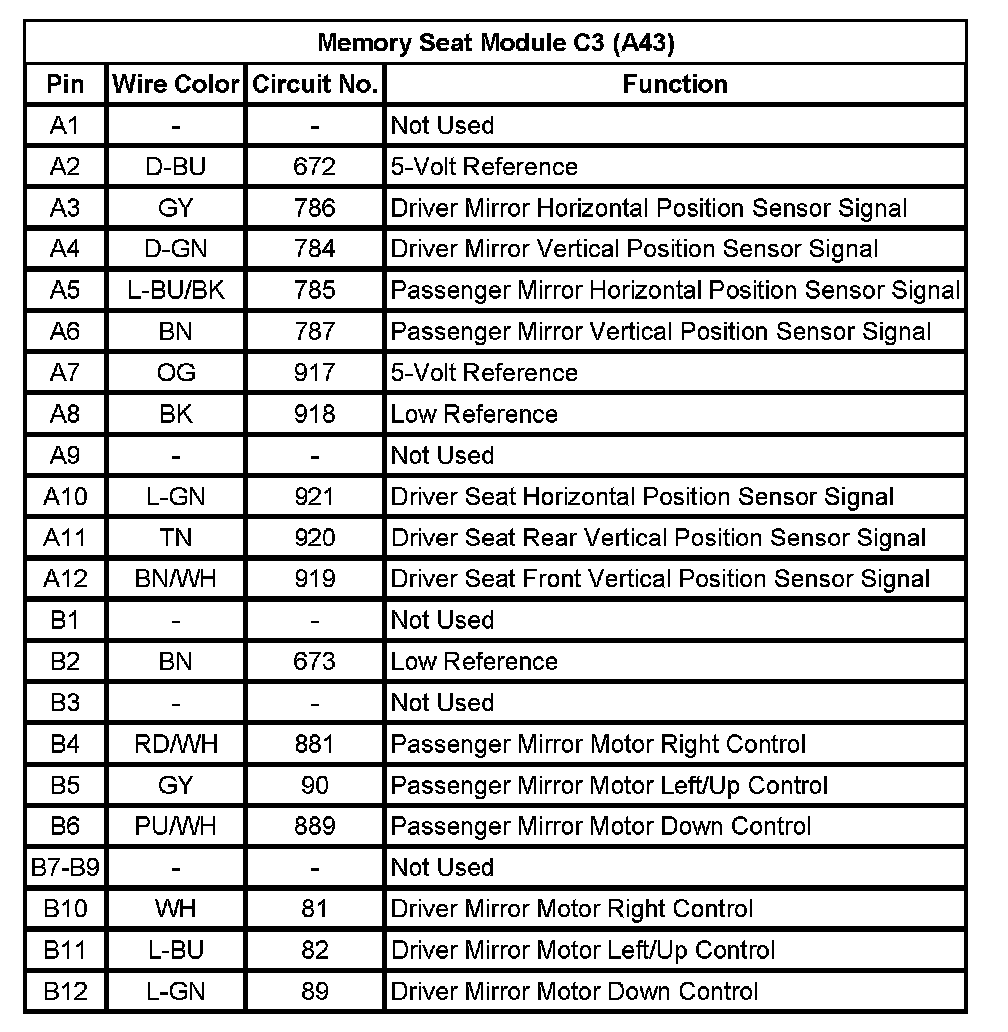

Memory Seat Module C3 (A43)

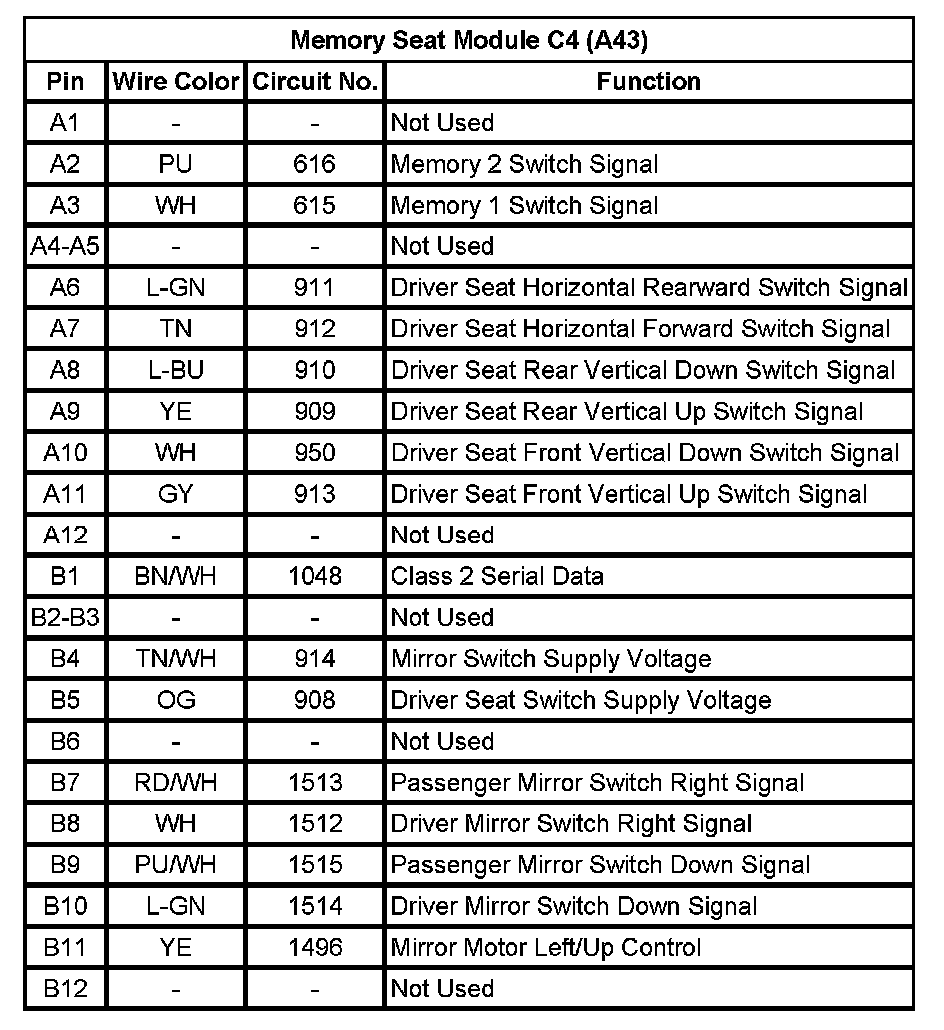

Memory Seat Module C4 (A43)
