Home >> Buick >> 2007 >> Rendezvous V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

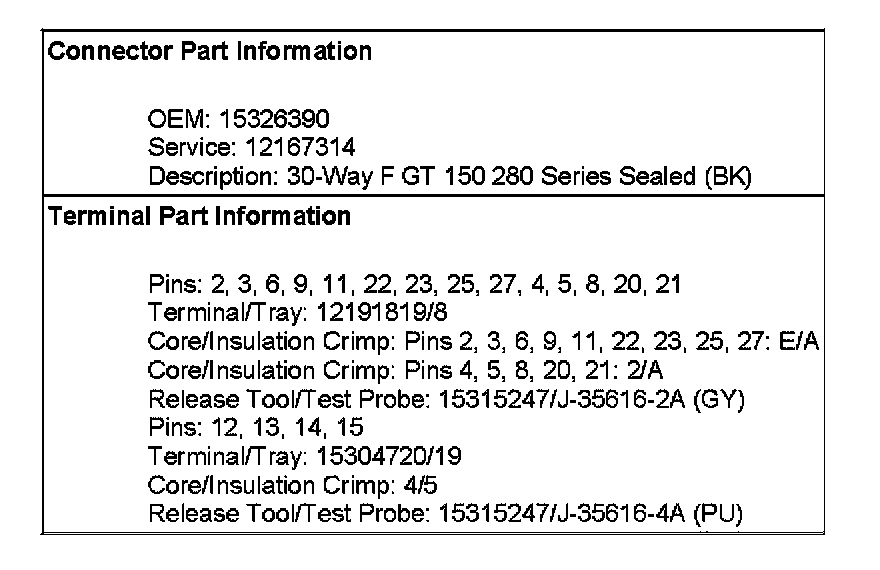

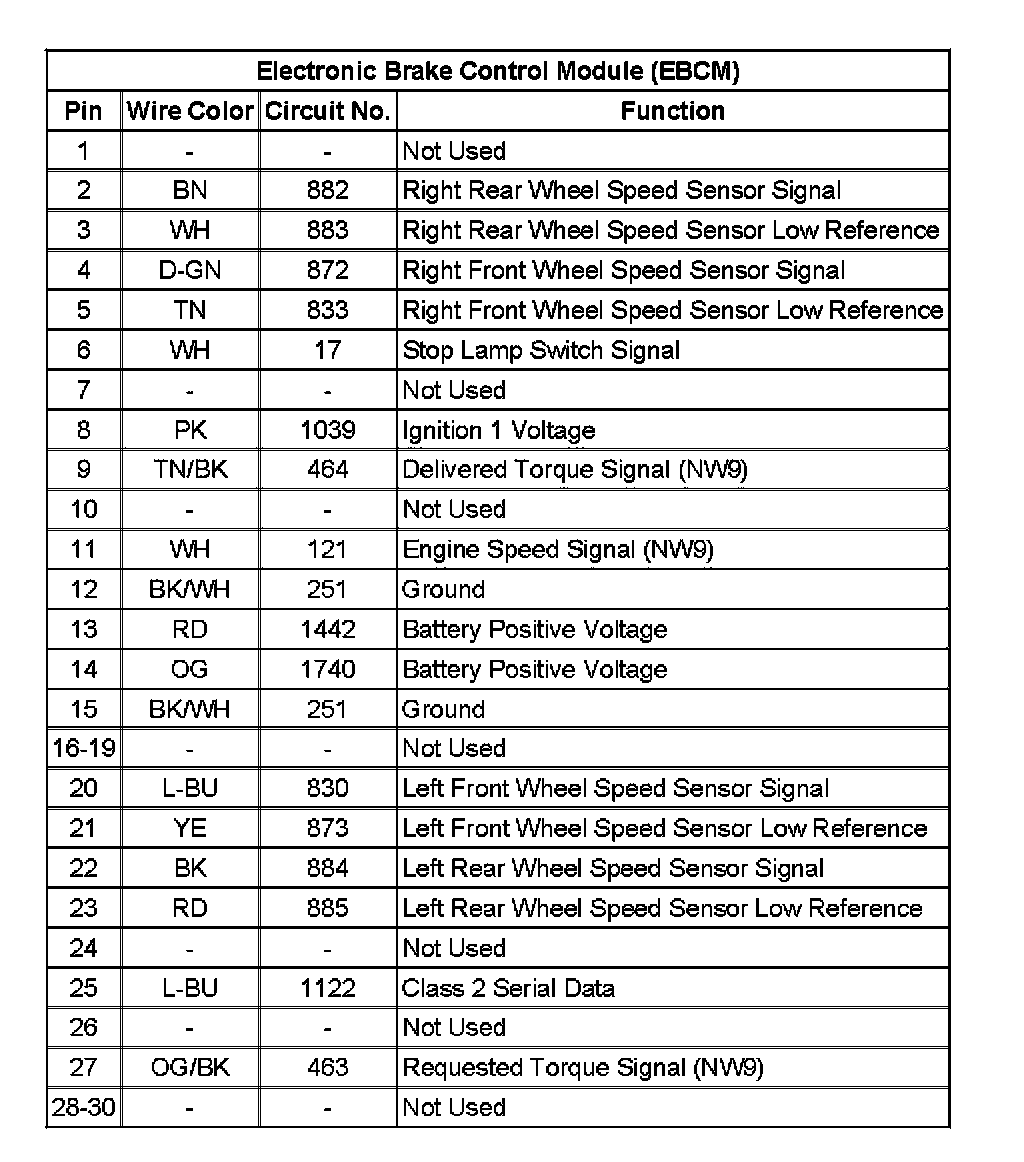

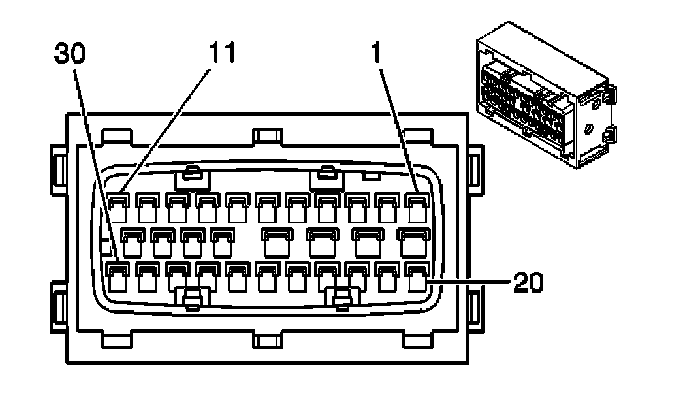

Electronic Brake Control Module (EBCM)







Electronic Brake Control Module:
