Central Control Module



Entertainment/Communication Connector End Views

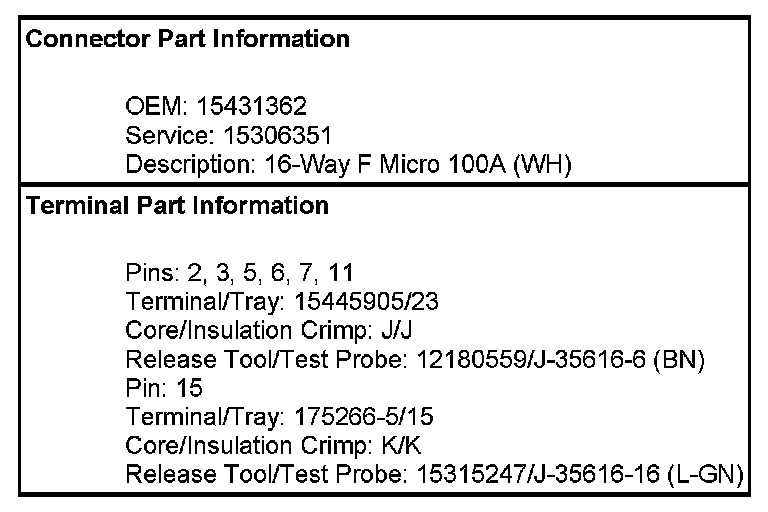

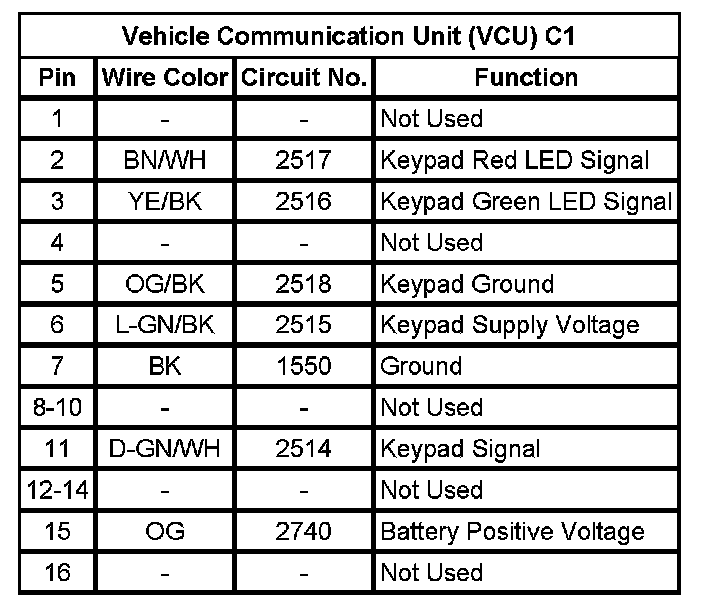

Vehicle Communication Unit (VCU) C1

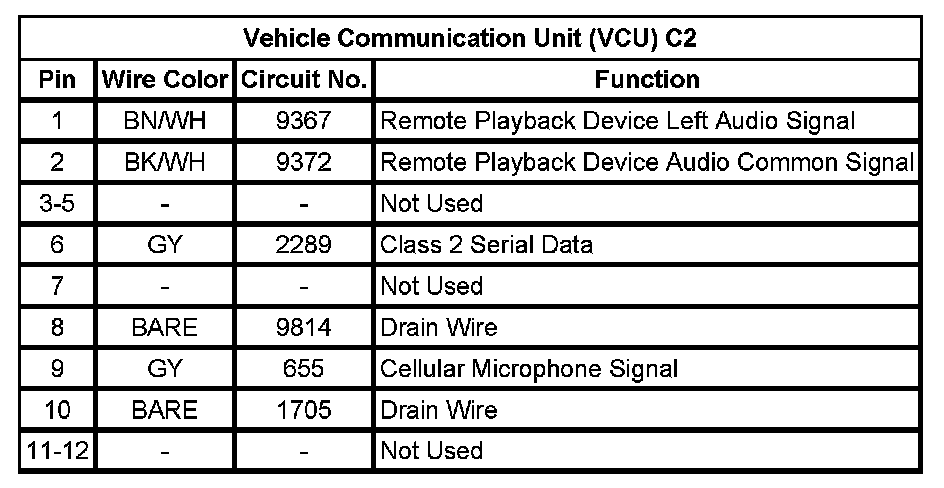

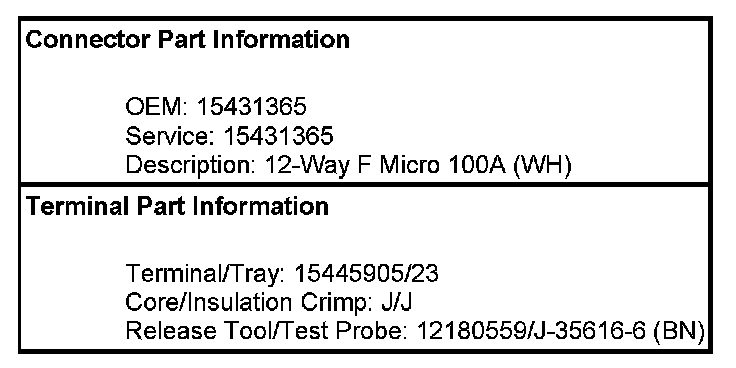

Vehicle Communication Unit (VCU) C2
