Accelerator Pedal Position Sensor: Locations
Engine Controls Component Views
Lower Left Side of I/P

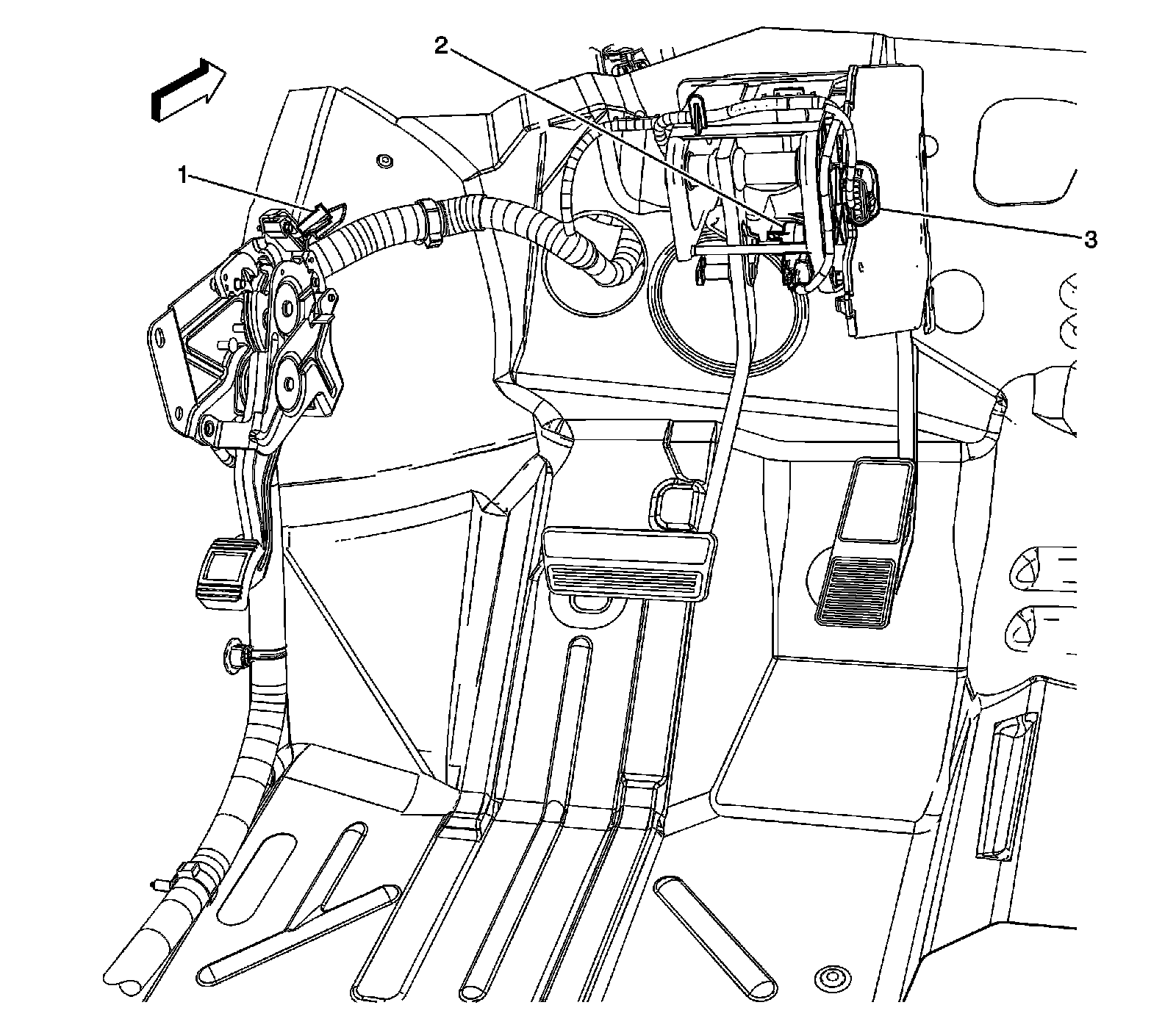

Lower Left Side of I/P:
1 - Park Brake Switch
2 - Brake Pedal Position Sensor
3 - Accelerator Pedal Position (APP) Sensor
Engine Controls Component Views
Lower Left Side of I/P
1 - Park Brake Switch
2 - Brake Pedal Position Sensor
3 - Accelerator Pedal Position (APP) Sensor
