Home >> Buick >> 2007 >> Lucerne V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Climate Control Seat Module

Climate Control Seat Module

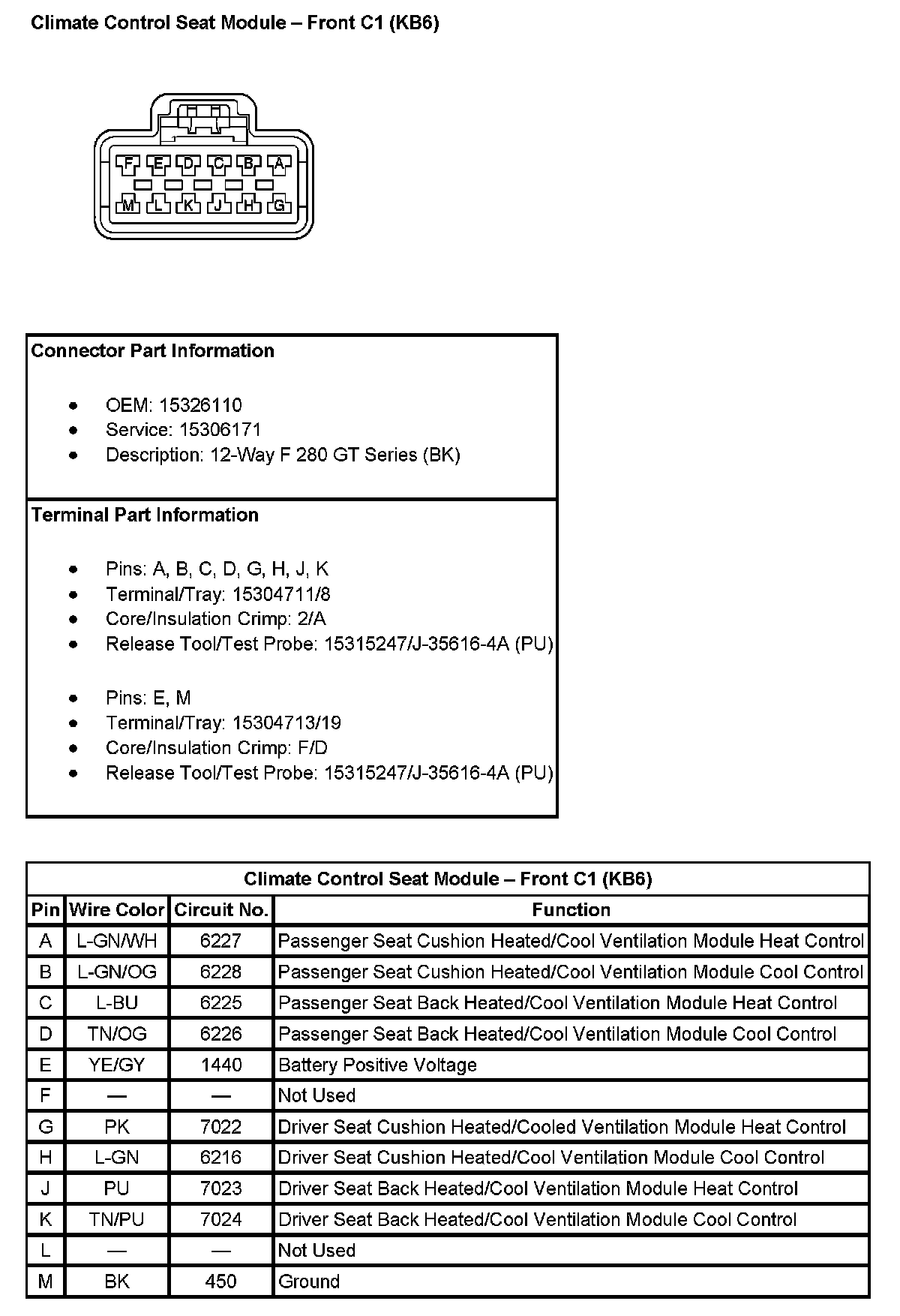

Climate Control Seat Module - Front C1 (With RPO Code KB6):

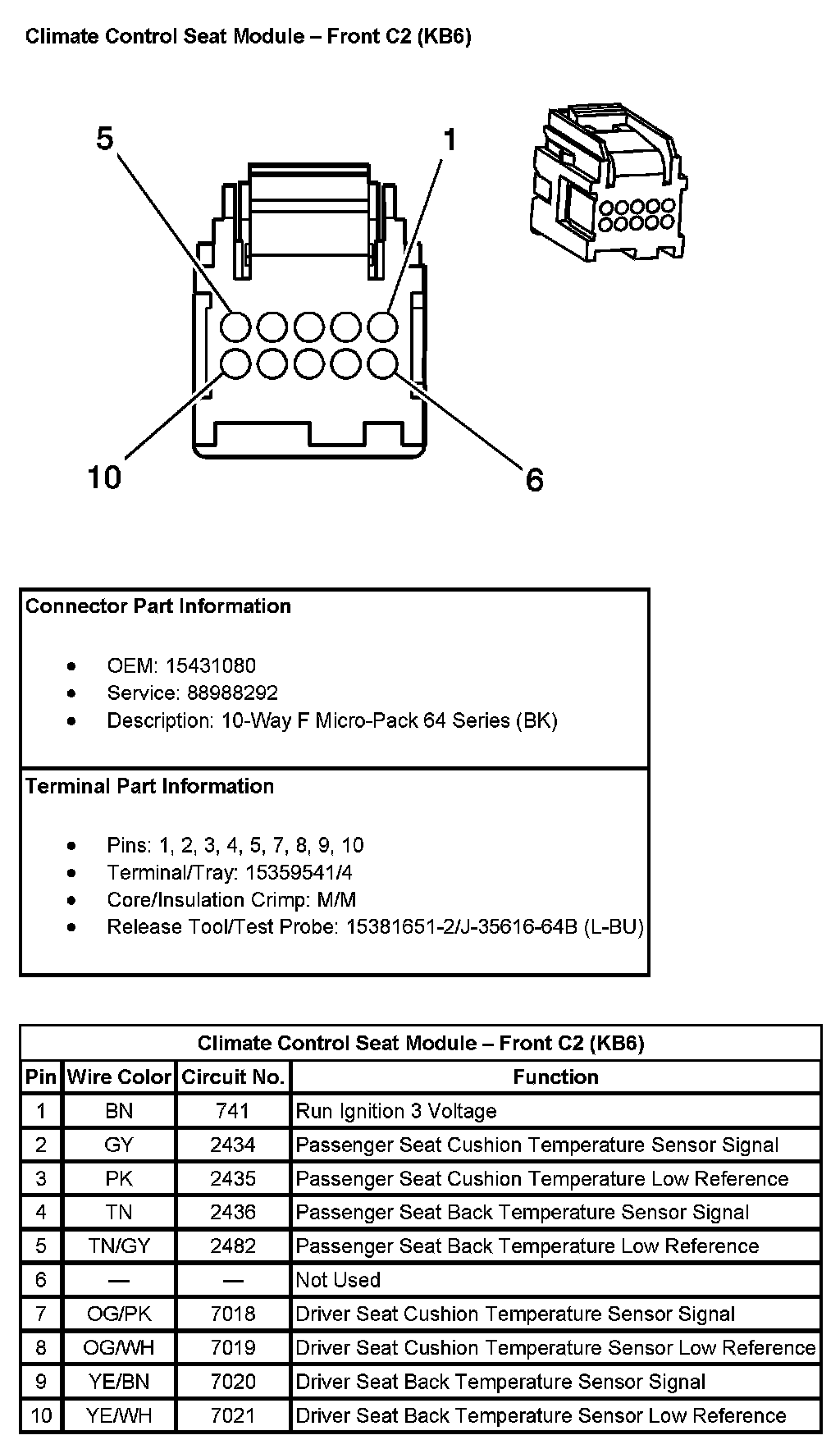

Climate Control Seat Module - Front C2 (With RPO Code KB6):

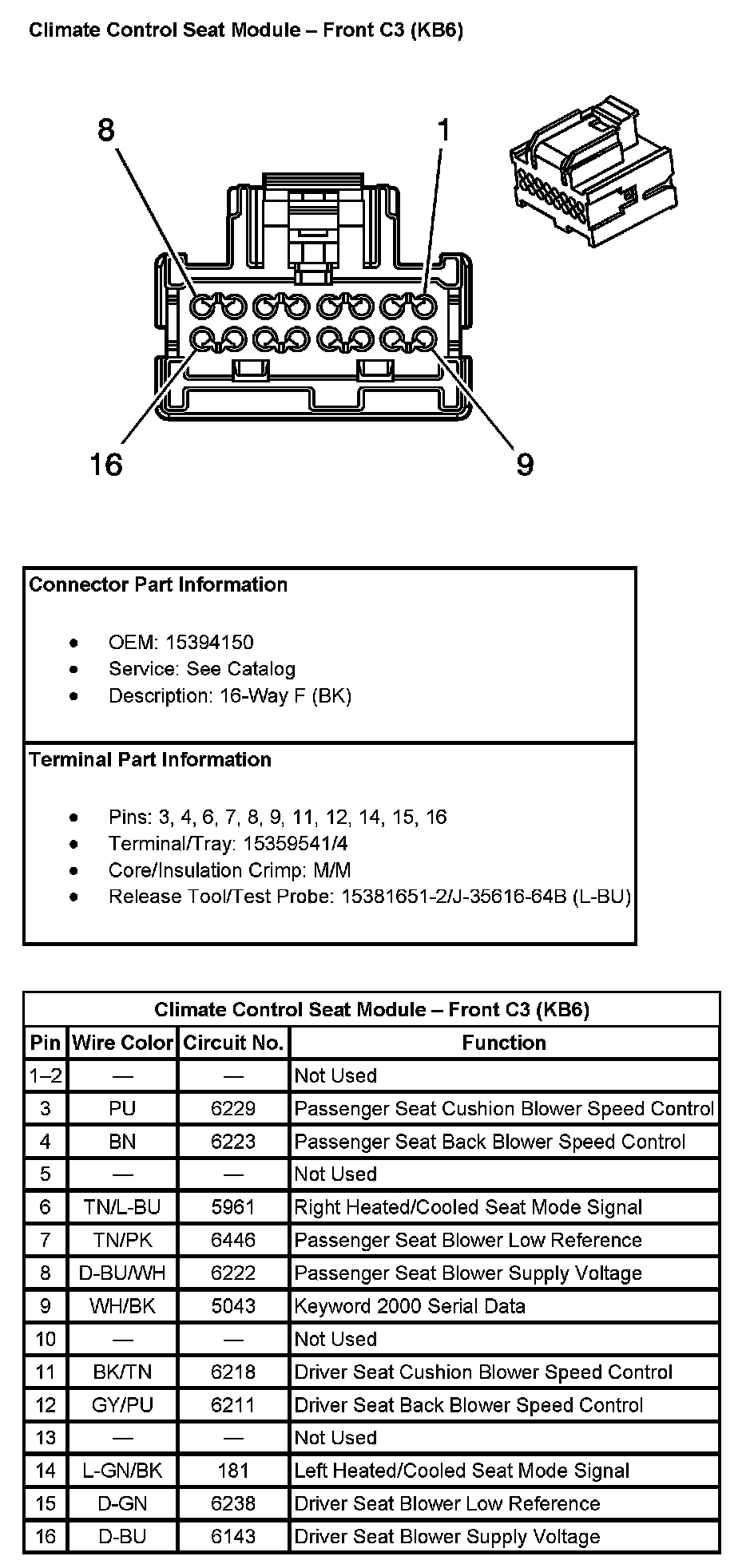

Climate Control Seat Module - Front C3 (With RPO Code KB6):
