Home >> Buick >> 2007 >> Lucerne V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Driver Door Module

Driver Door Module

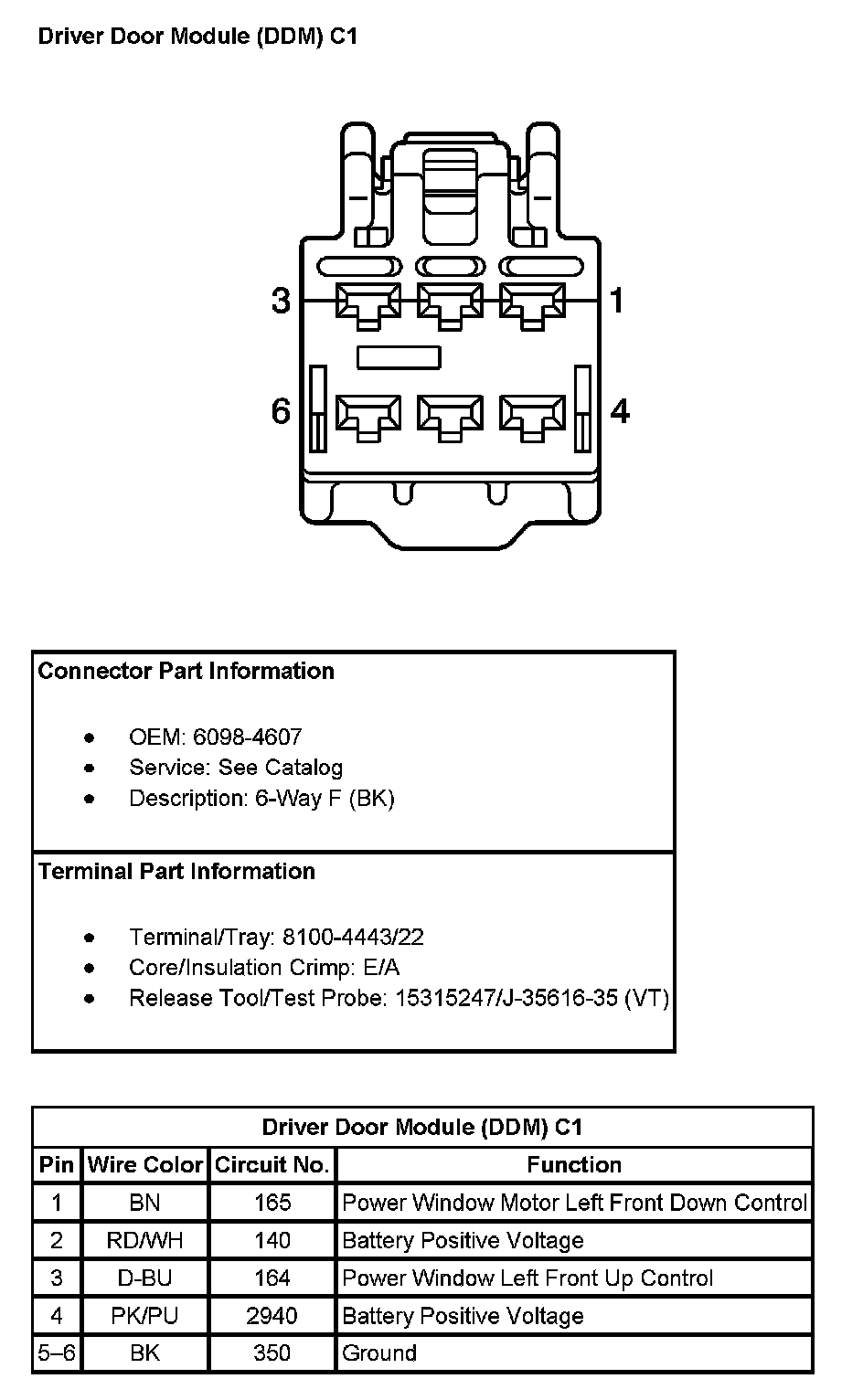

Driver Door Module (DDM) C1:

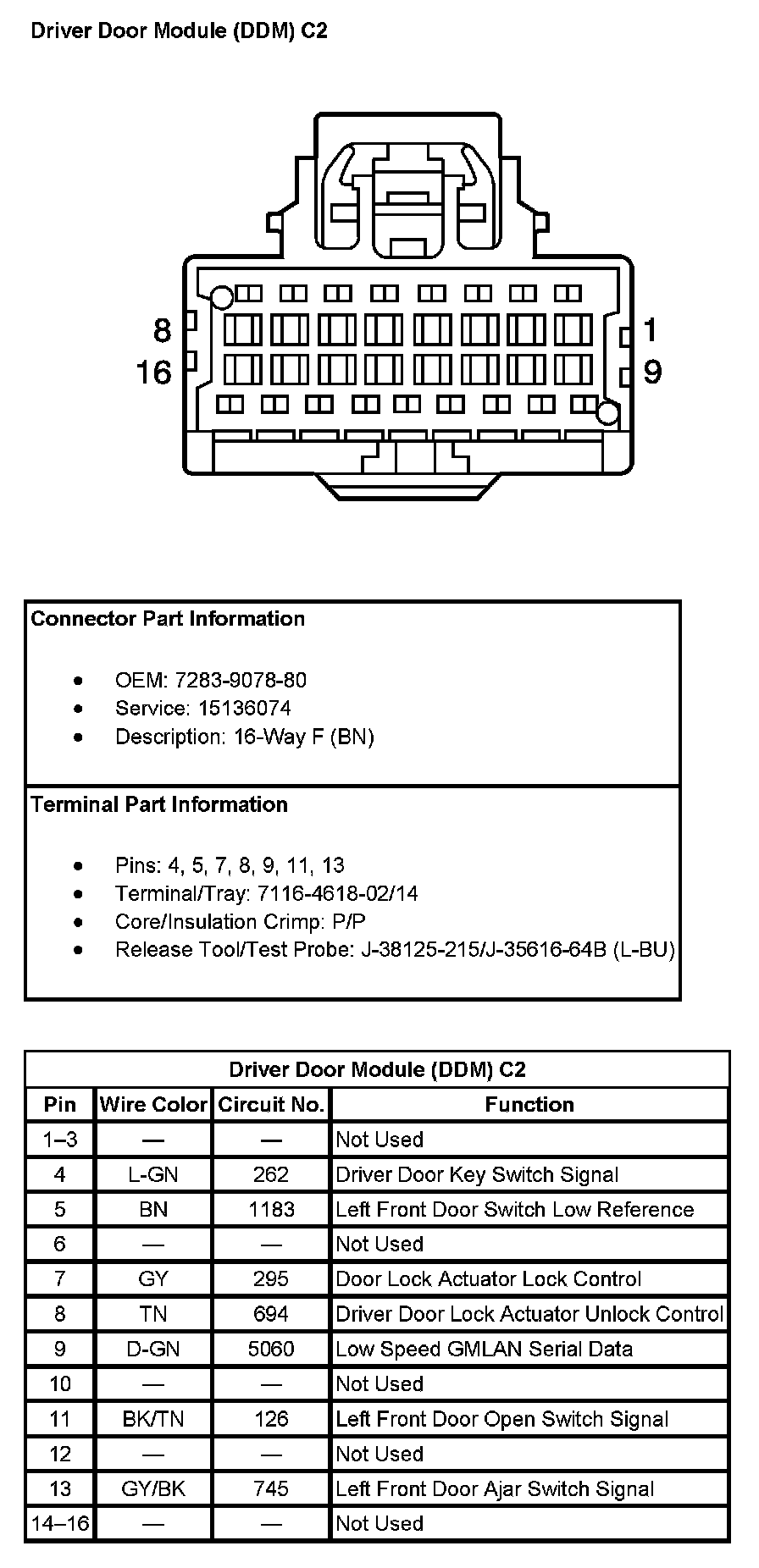

Driver Door Module (DDM) C2:

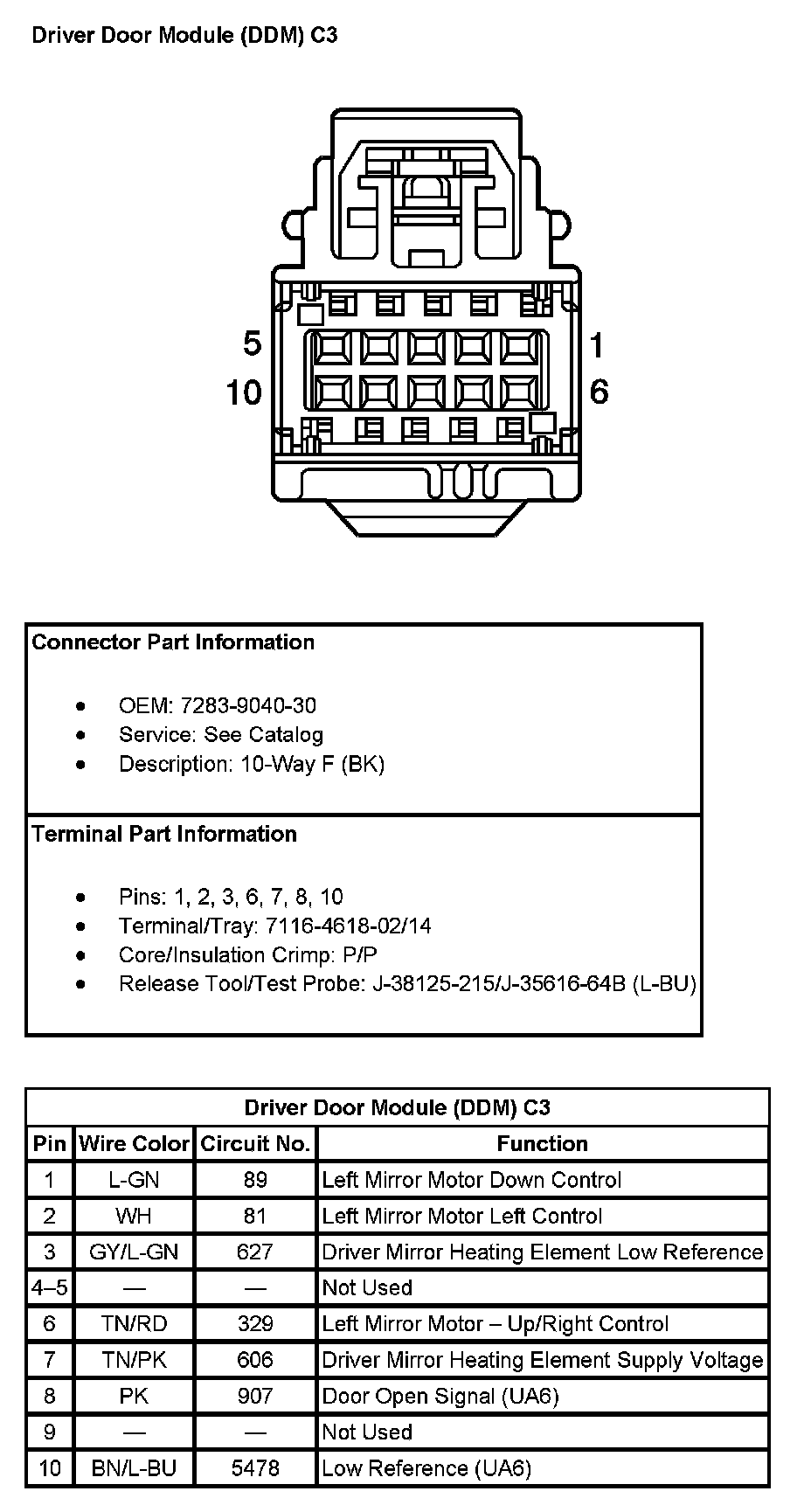

Driver Door Module (DDM) C3:

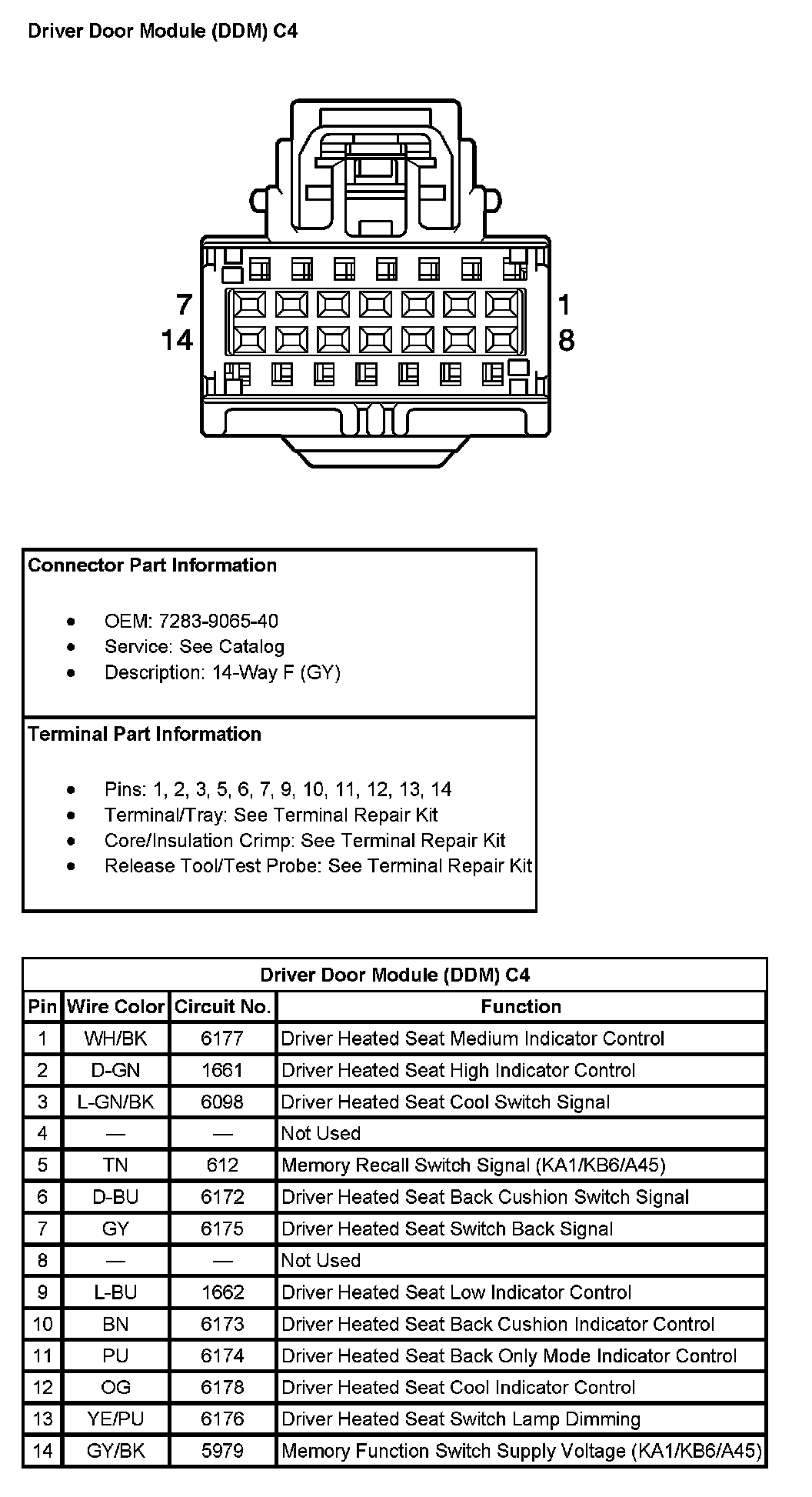

Driver Door Module (DDM) C4:

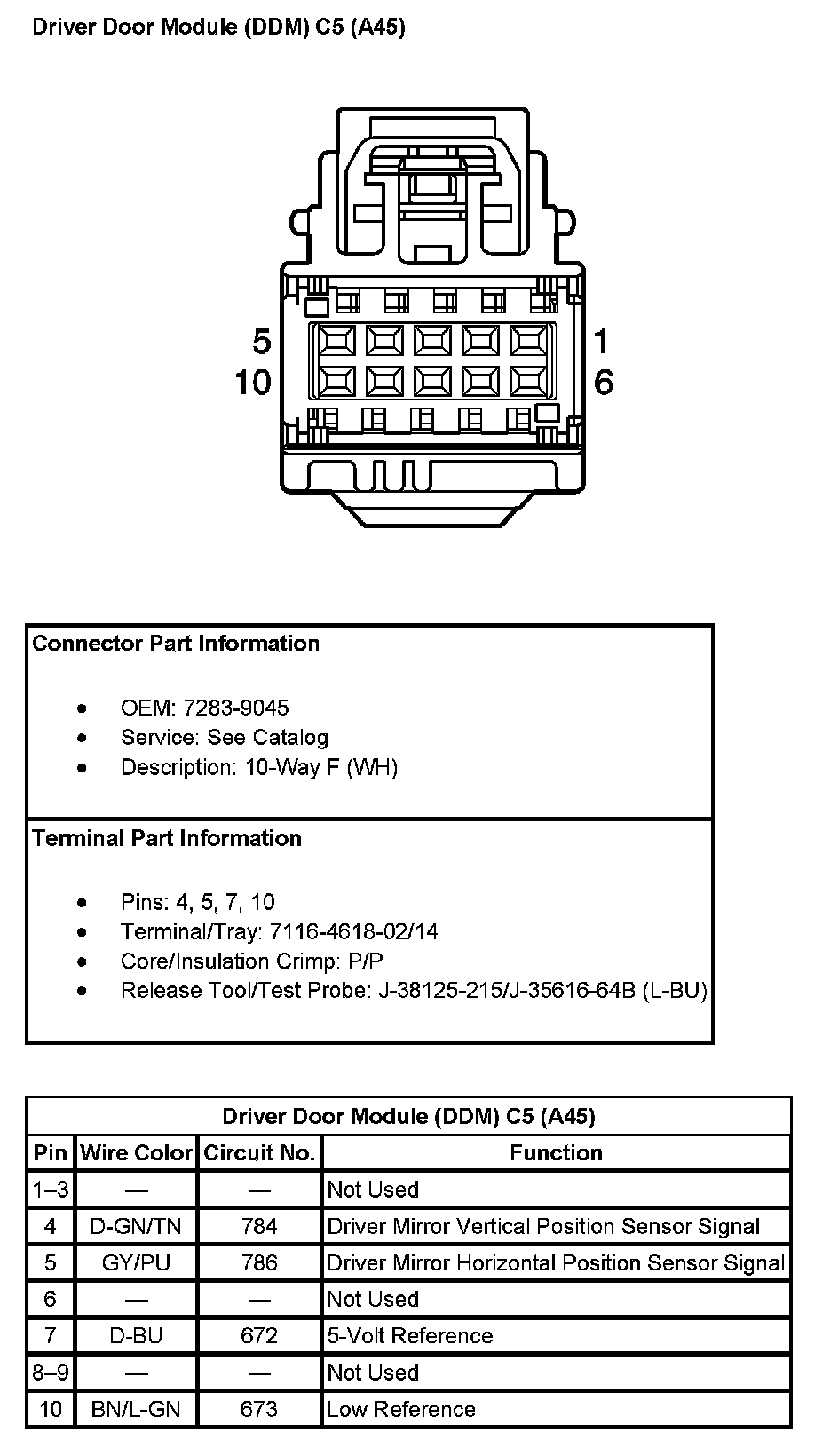

Driver Door Module (DDM) C5 (With RPO Code A45):
