Buick
>>
2007
>>
Lucerne V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Fluid Level Sensor/Switch
Brake Fluid Level Sensor/Switch

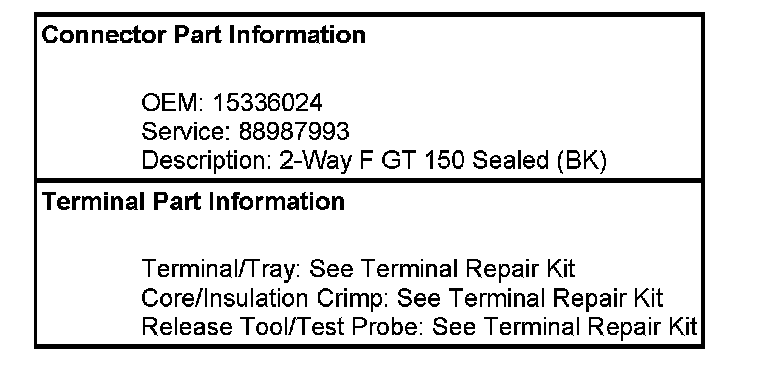

Hydraulic Brake Connector End Views

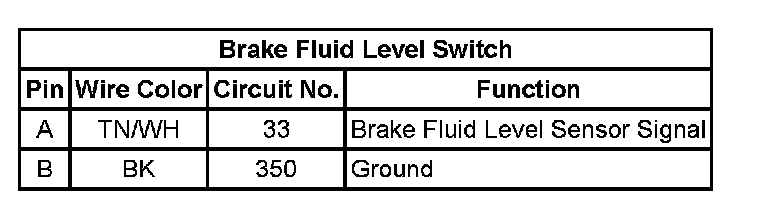

Brake Fluid Level Switch:
