Body Control Module (BCM) C7
Body Control Module (BCM) C7

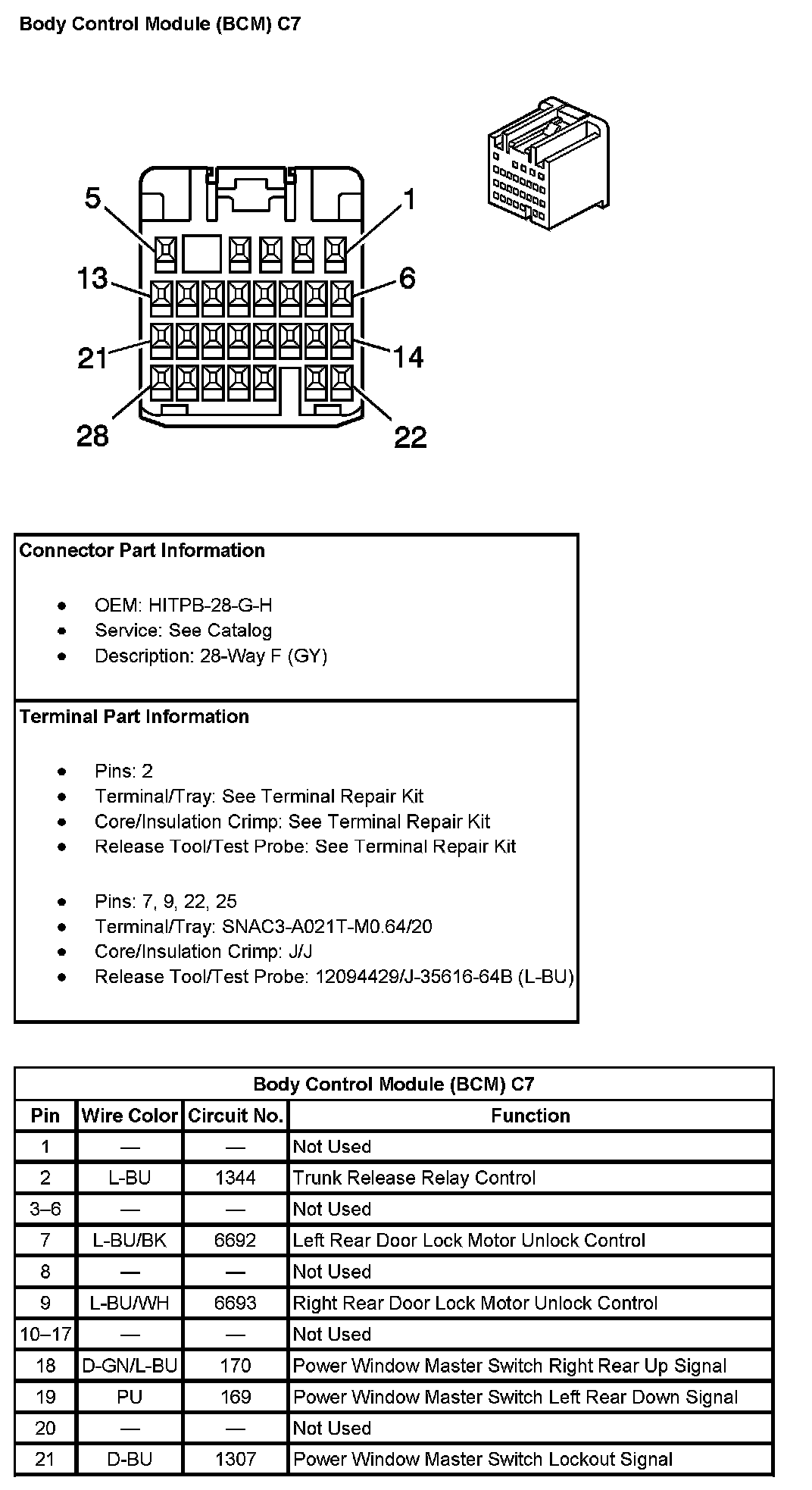

Body Control Module (BCM) C7 (Pin 1 To 21):
Body Control Module (BCM) C7 (Pin 22 To 28):
