Home >> Buick >> 2007 >> Lucerne V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) C1

Body Control Module (BCM) C1

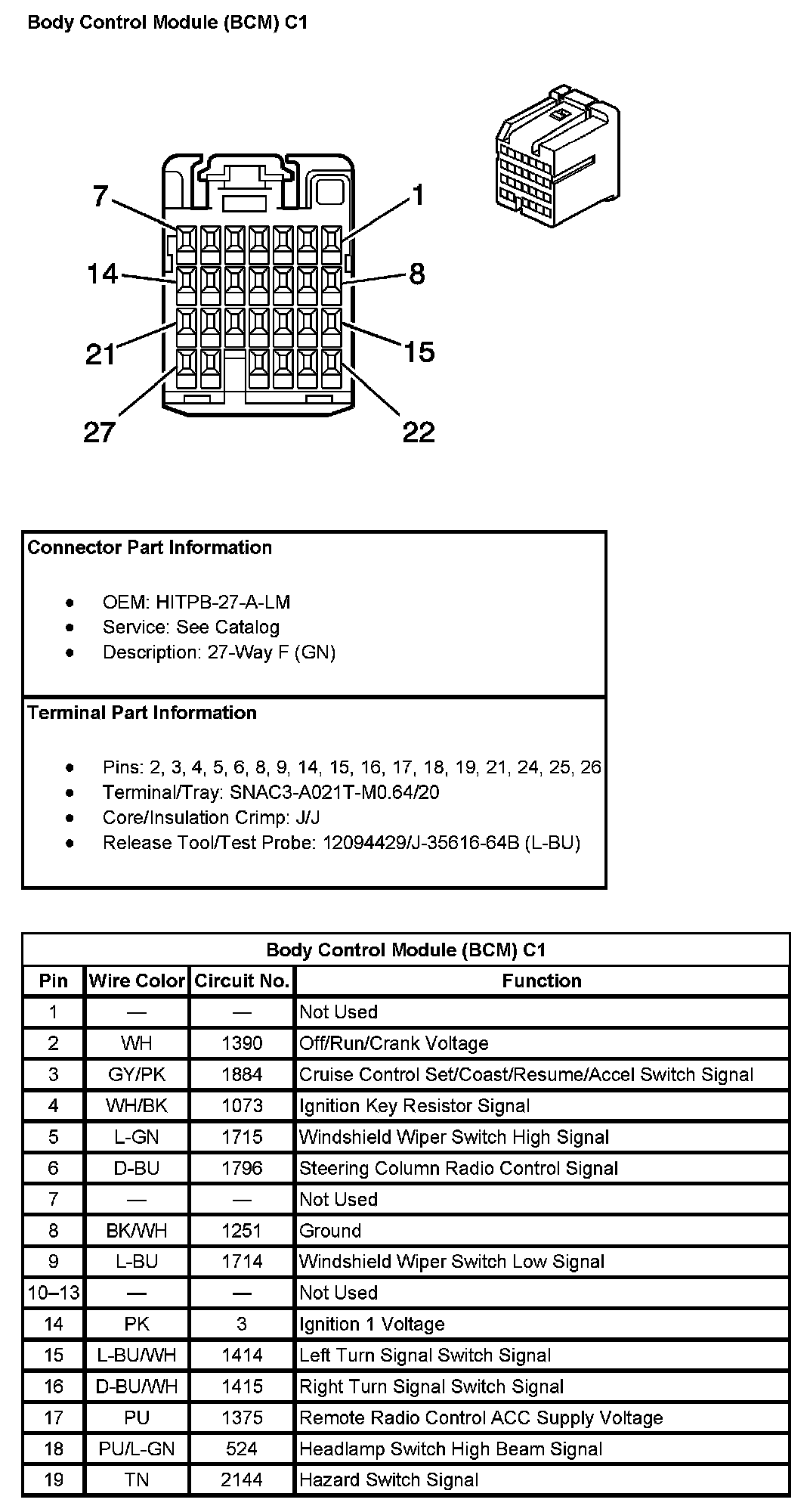

Body Control Module (BCM) C1:

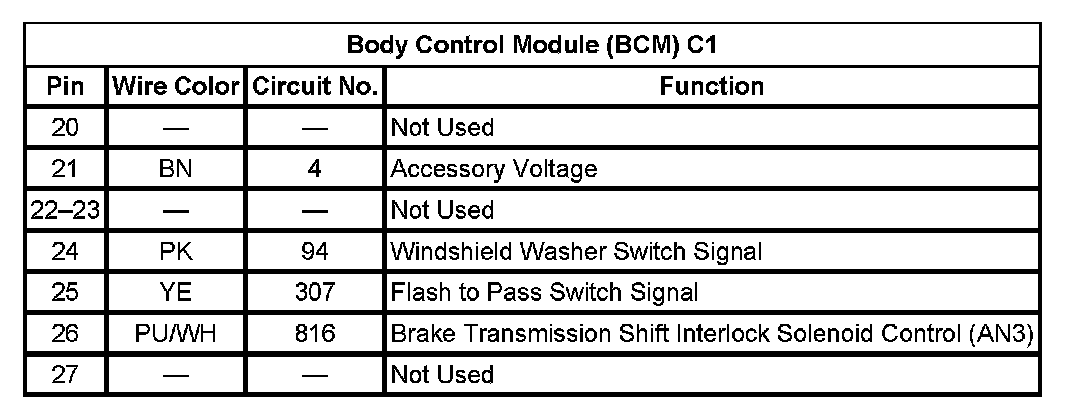

Body Control Module (BCM) C1 (Pin 20 To 27):
