Alarm Module, (Vehicle Antitheft)
Alarm Module, (Vehicle Antitheft)
Immobilizer Connector End Views

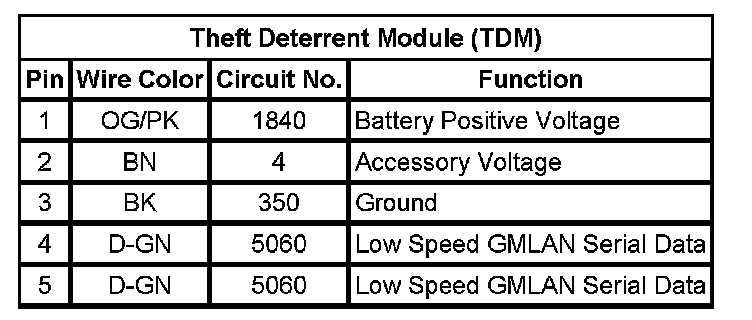

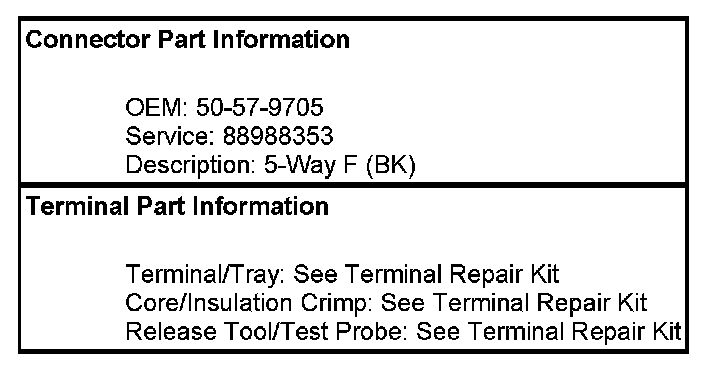

Theft Deterrent Module (TDM)
