Home >> Buick >> 2007 >> Lucerne V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

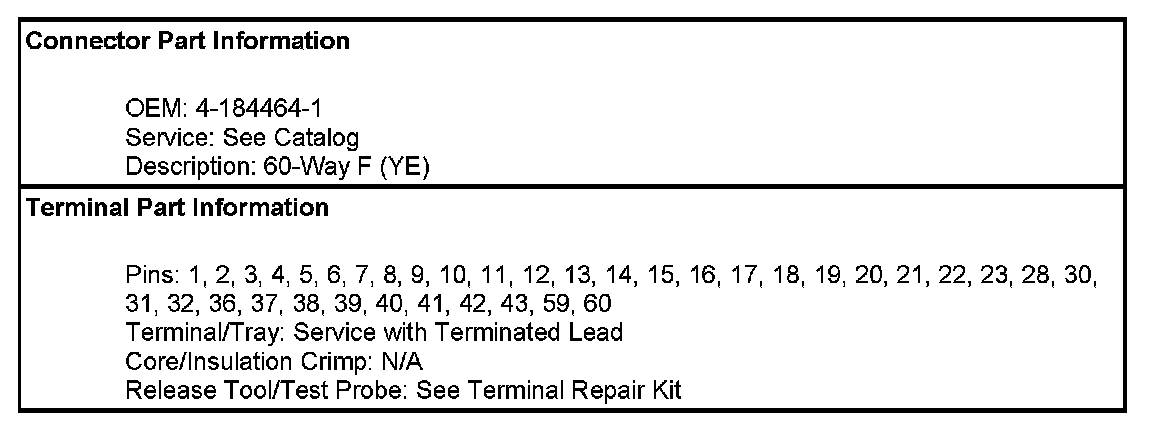

SIR Connector End Views

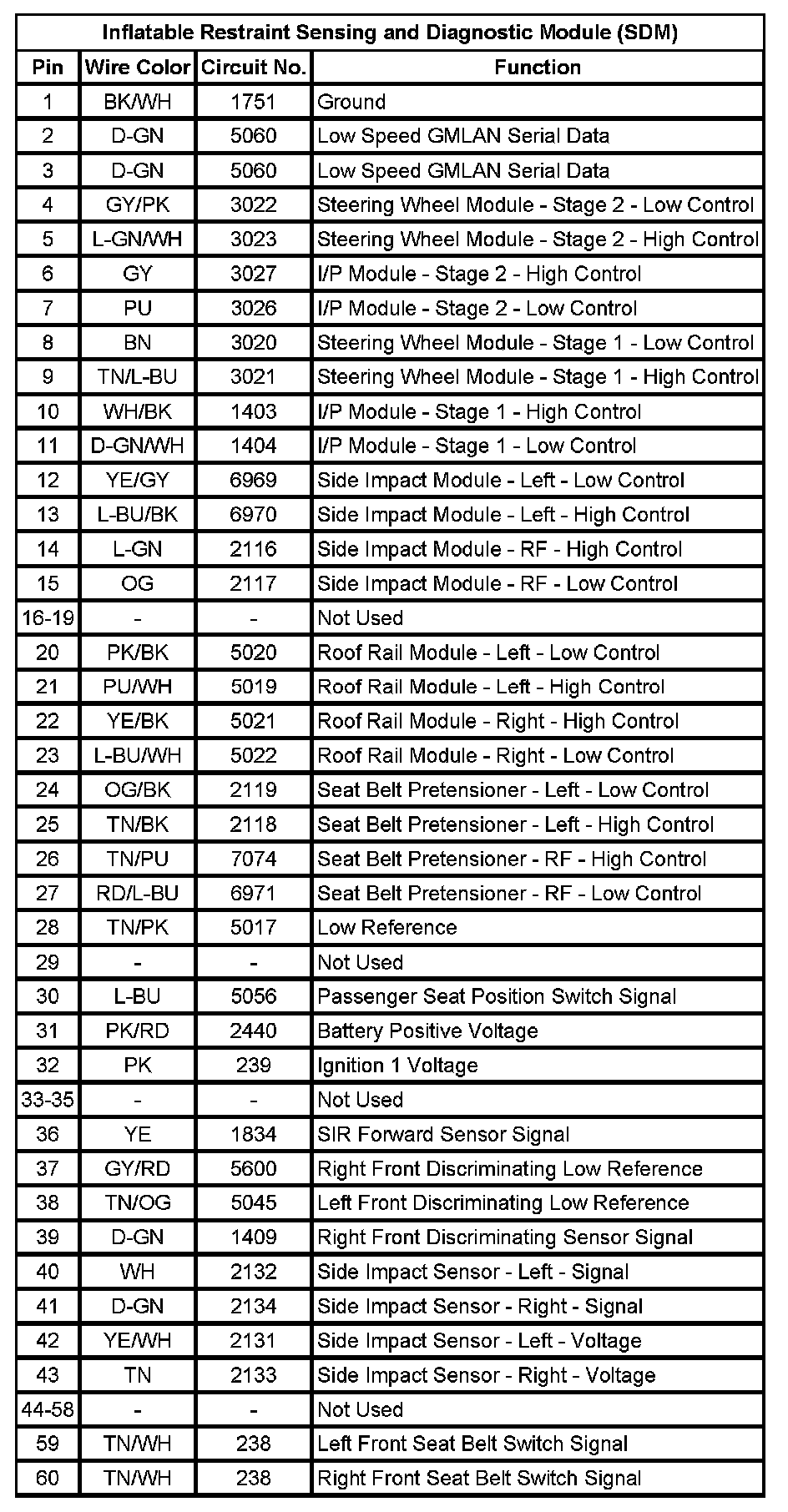

Inflatable Restraint Sensing and Diagnostic Module (SDM)
