Air Flow Meter/Sensor: Diagrams

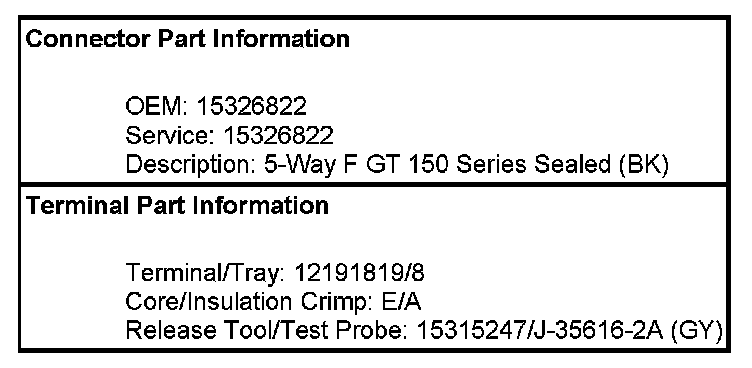

Engine Controls Connector End Views

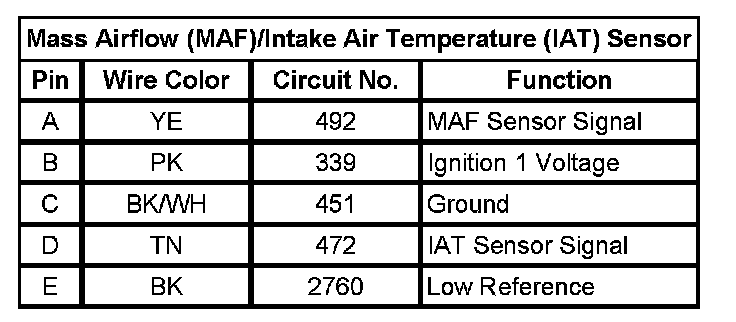

Mass Airflow (MAF)/Intake Air Temperature (IAT) Sensor
