Keyless Entry Module



Remote Function Connector End Views

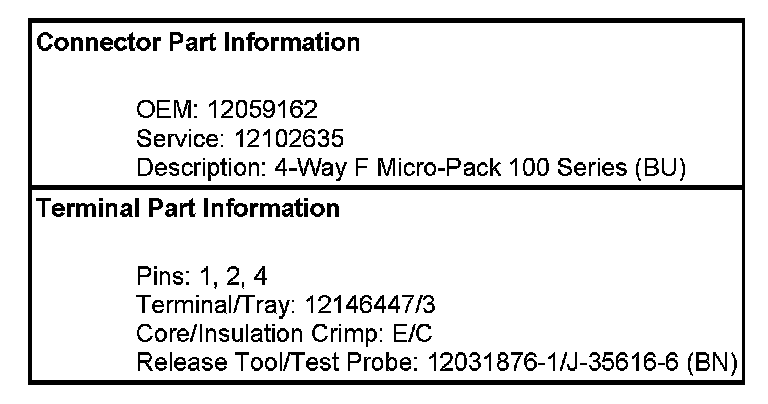

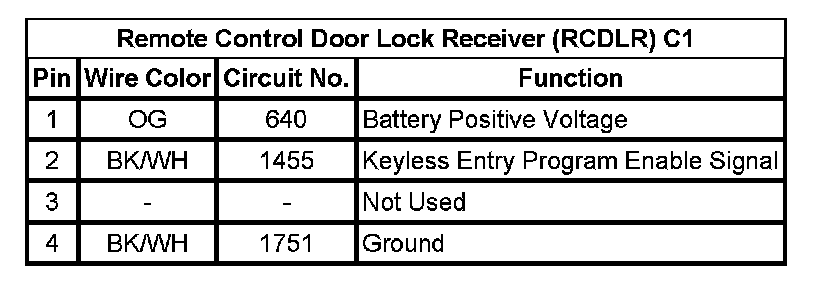

Remote Control Door Lock Receiver (RCDLR) C1

Tire Pressure Monitor (TPM) Module:

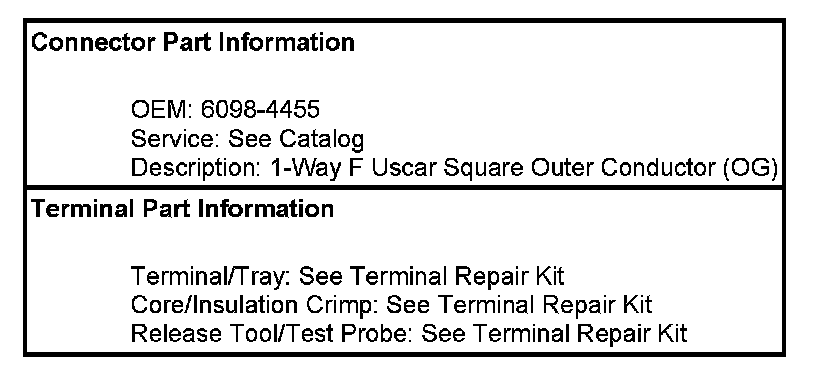

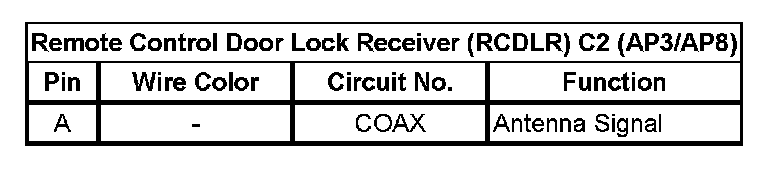

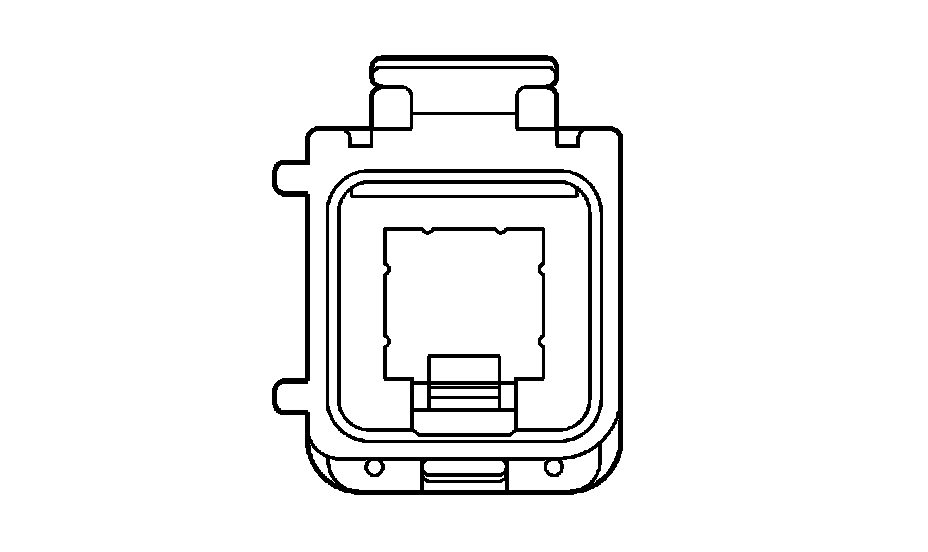

Remote Control Door Lock Receiver (RCDLR) C2 (AP3/AP8)
