Home >> Buick >> 2002 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Scan Tool Output Controls

Scan Tool Output Controls

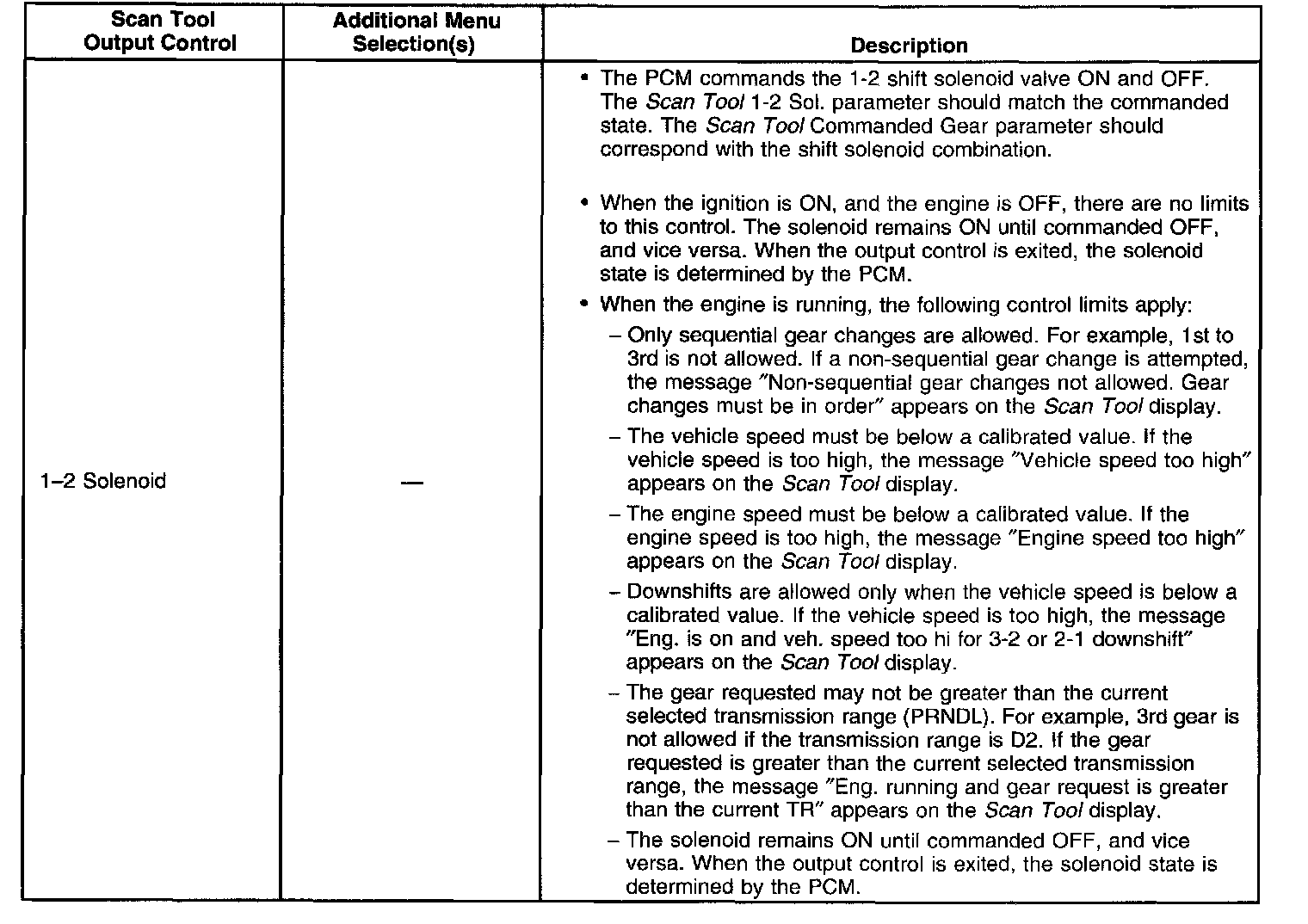

Scan Tool Output Controls Part 1 of 4

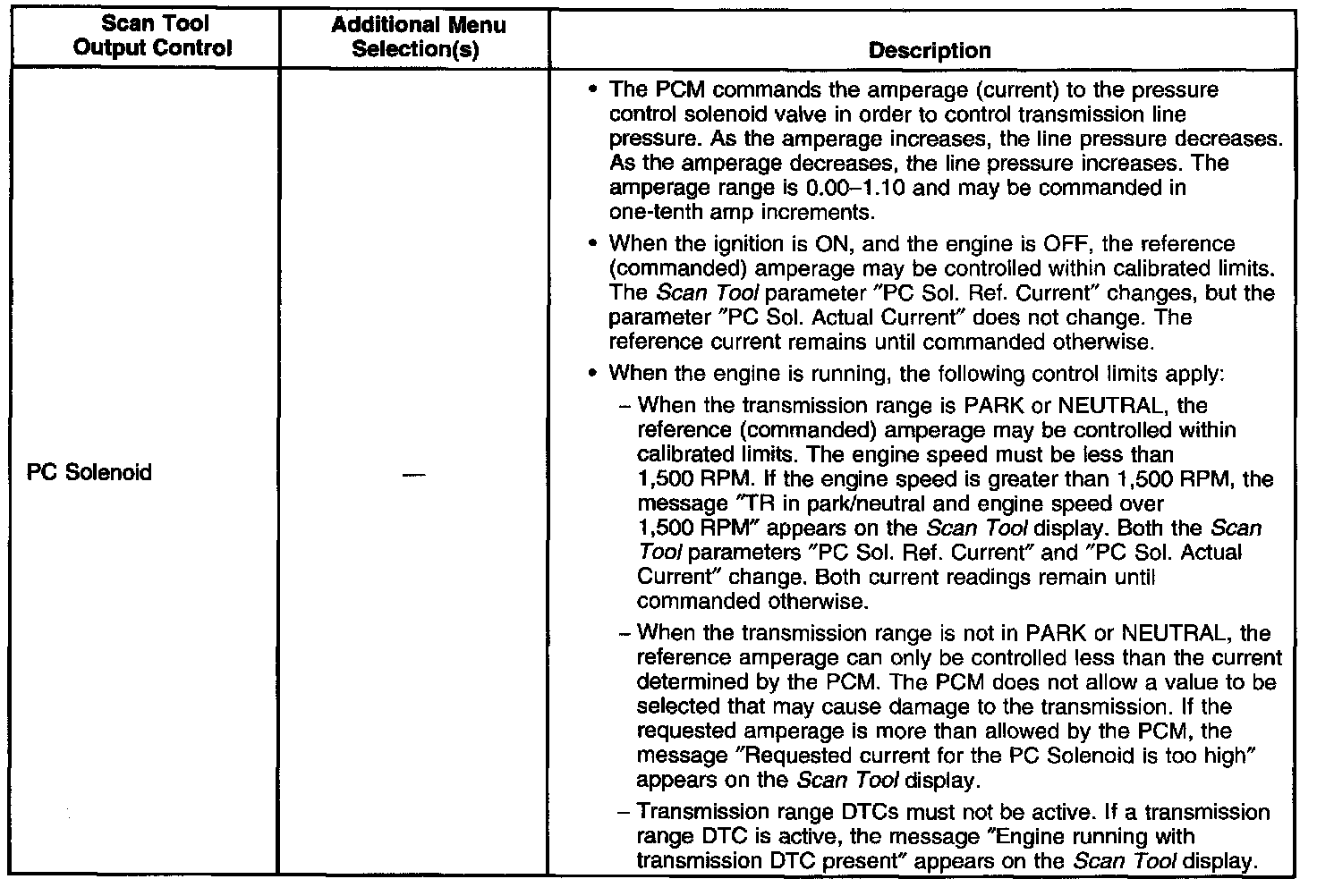

Scan Tool Output Controls Part 2 of 4

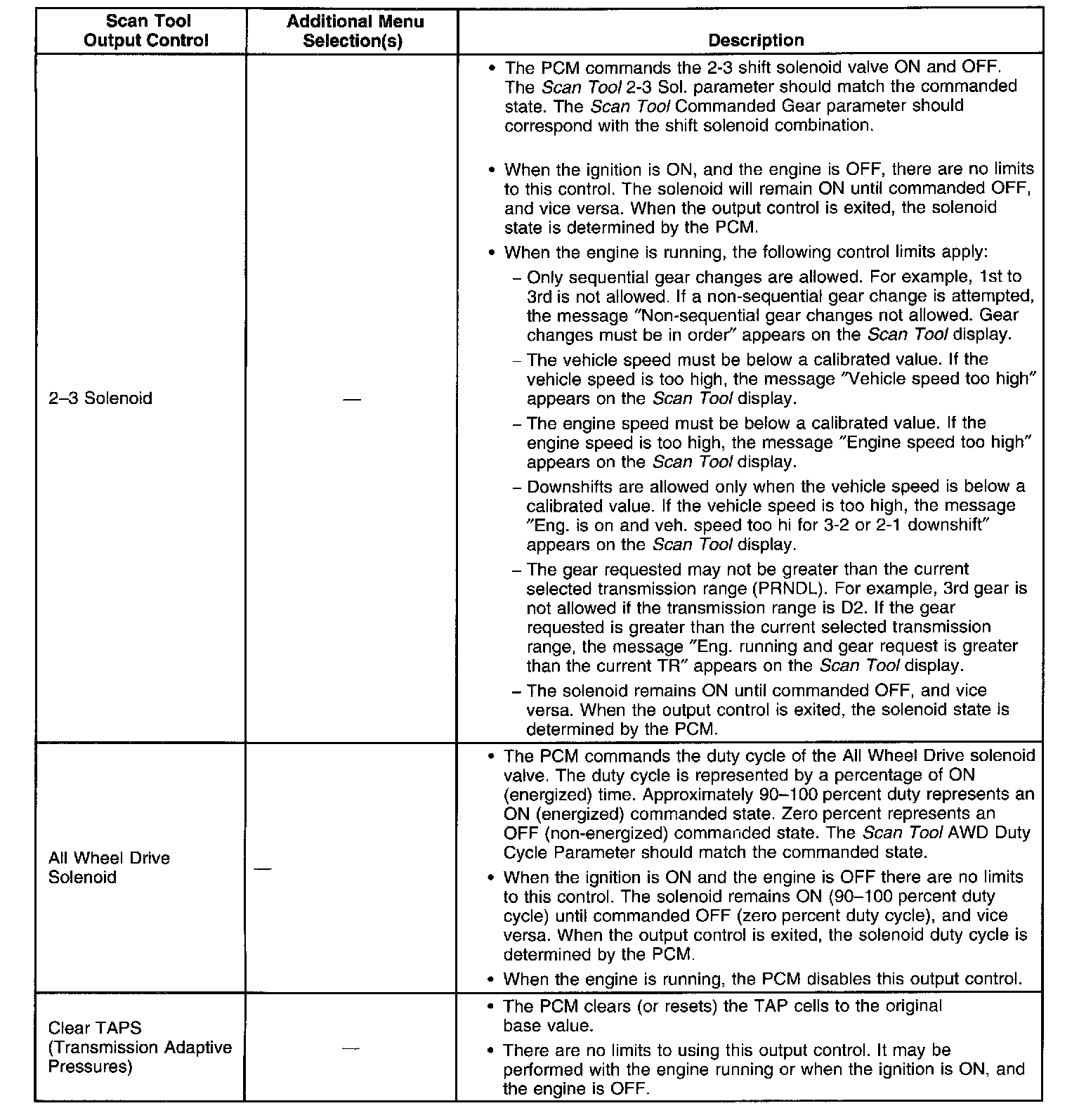

Scan Tool Output Controls Part 3 of 4

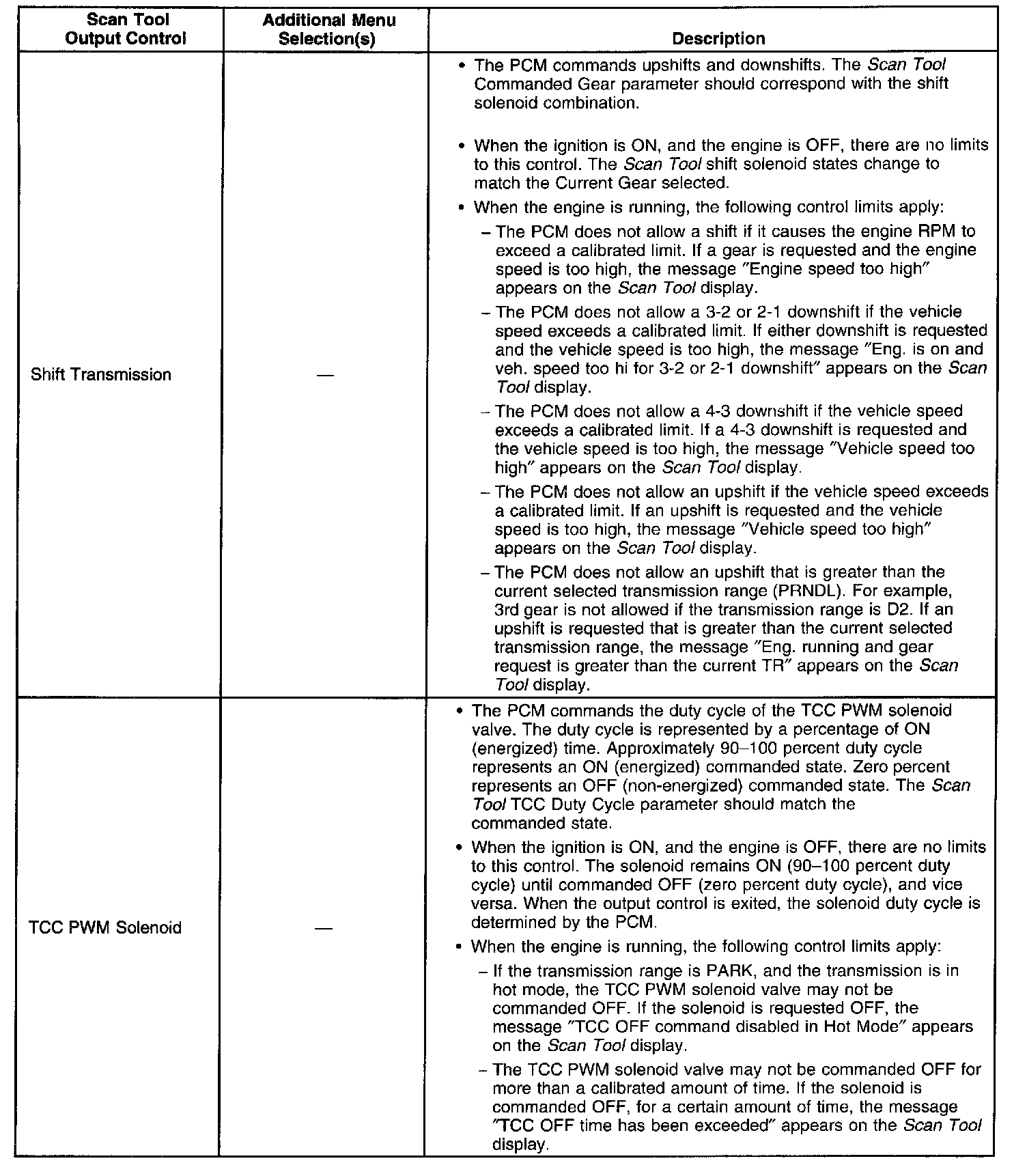

Scan Tool Output Controls Part 4 of 4
