Vehicle Communications Interface Module (VCIM)

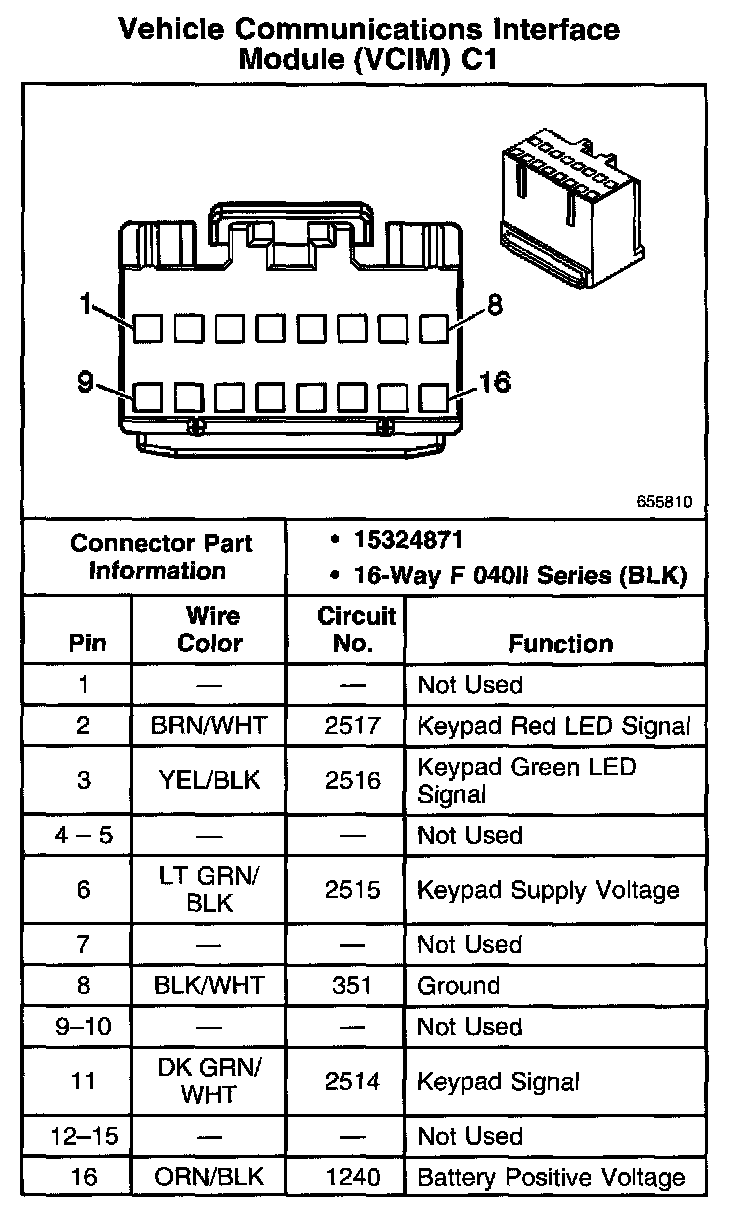

Vehicle Communications Interface Module (VCIM) C1:

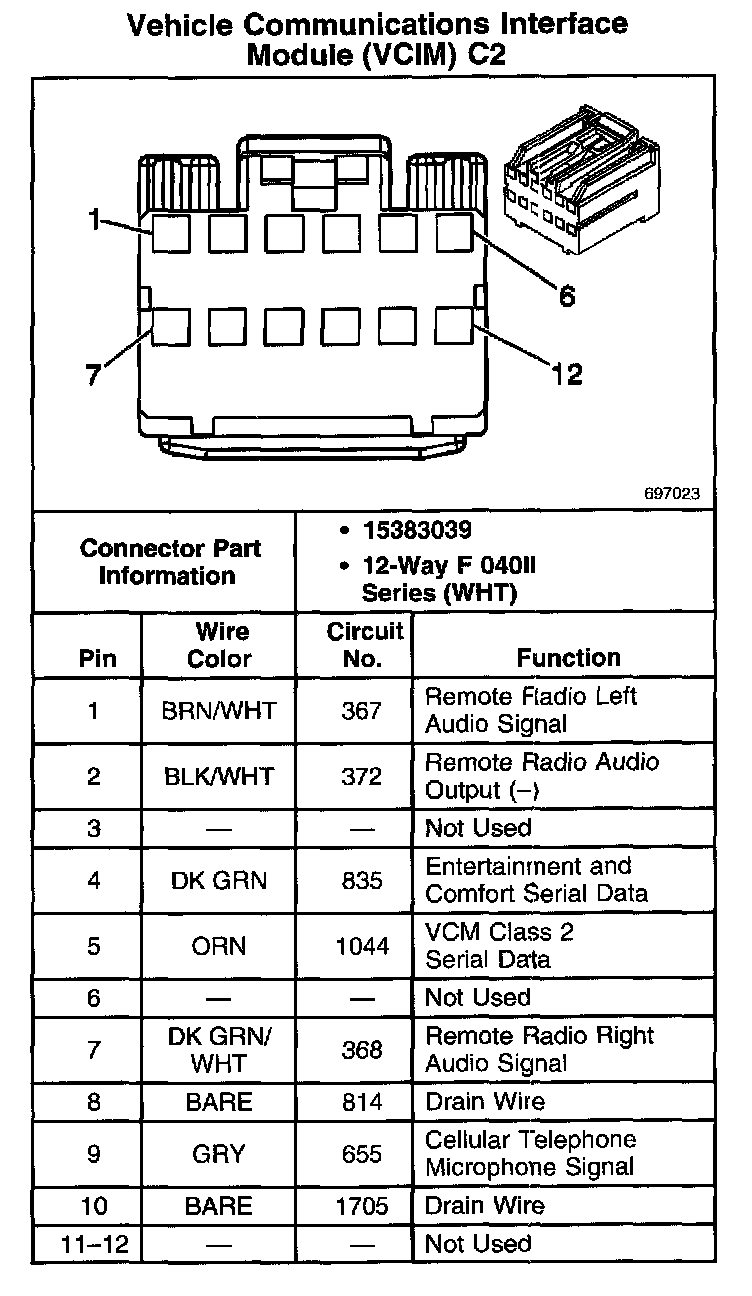

Vehicle Communications Interface Module (VCIM) C2:
