Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
C1
C1

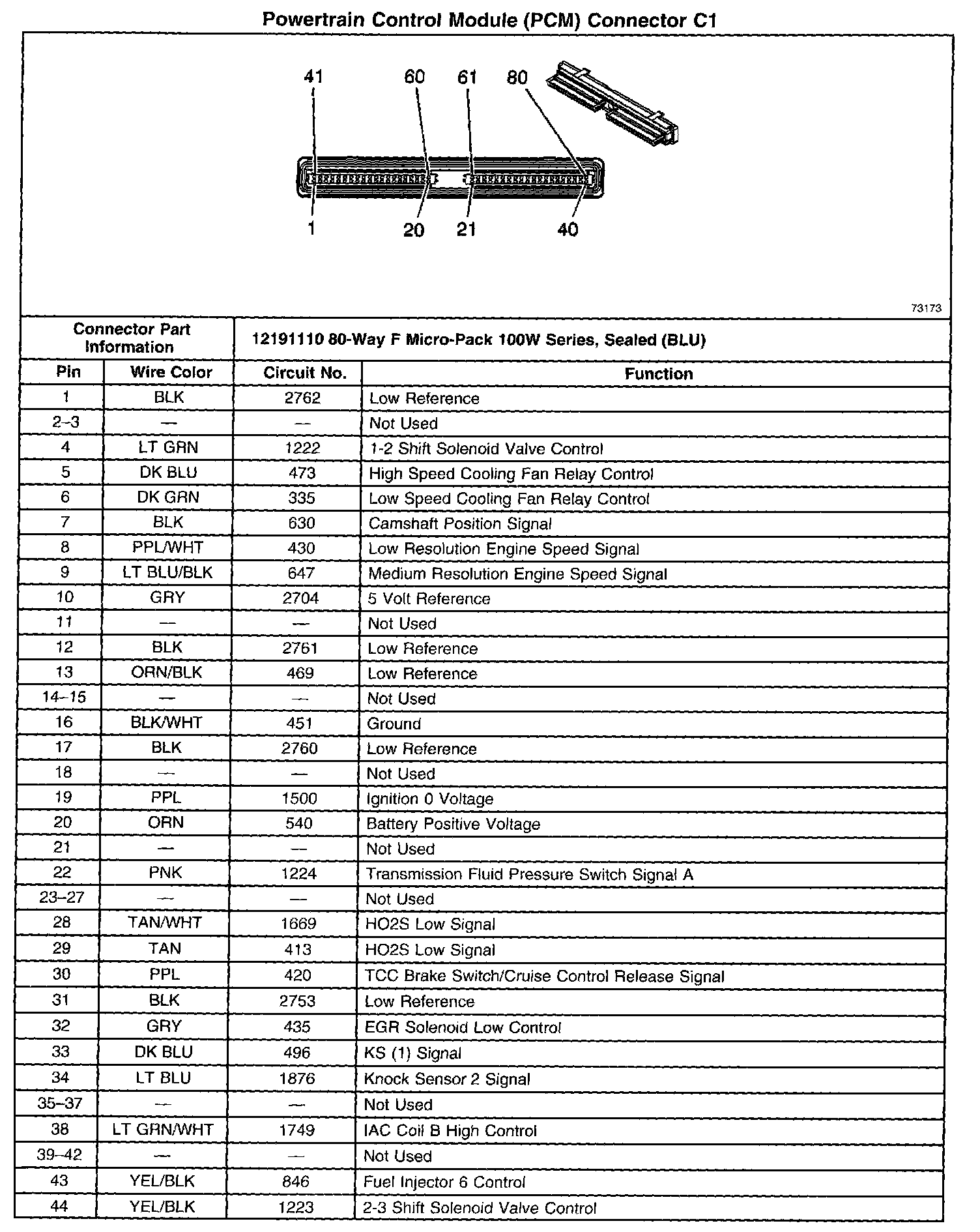

Powertrain Control Module (PCM) Connector C1 Part 1:

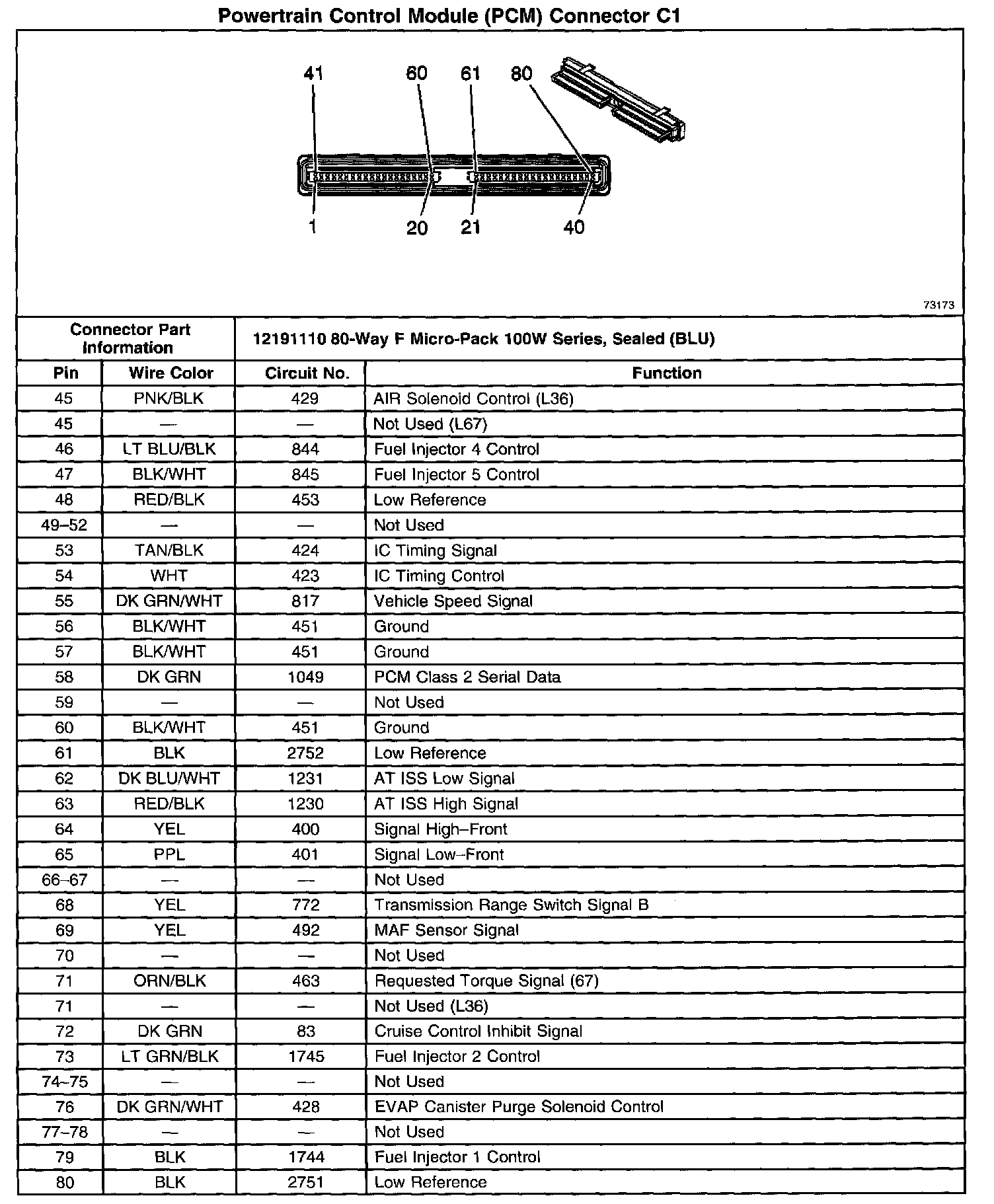

Powertrain Control Module (PCM) Connector C1 Part 2:
