Buick
>>
2002
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
Control Module HVAC

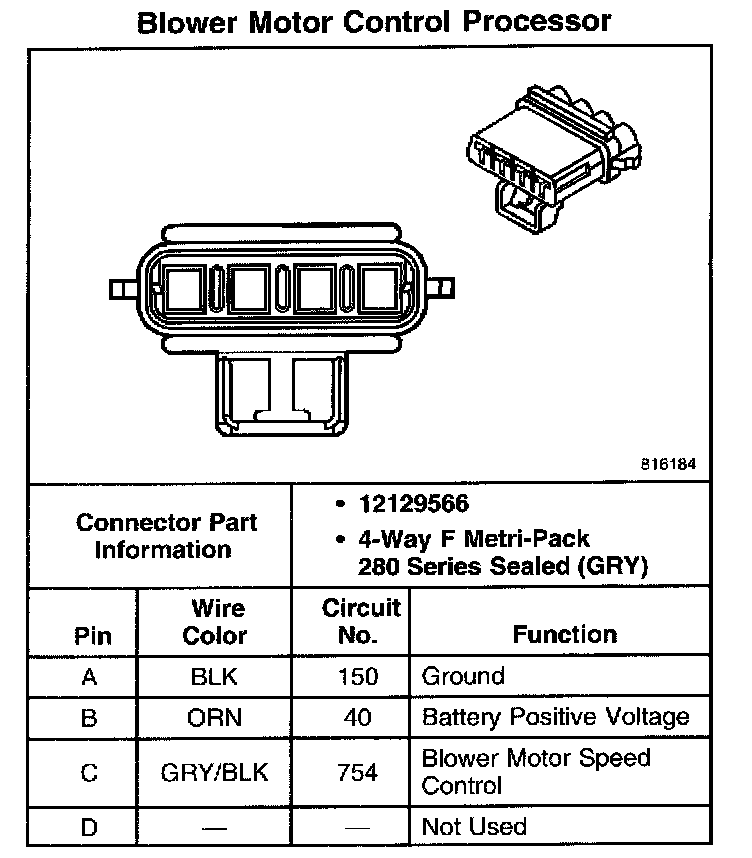

Blower Motor Control Processor - HVAC Systems - Automatic:
