Home >> Buick >> 2000 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams >> Turn Signal Inputs

Turn Signal Inputs

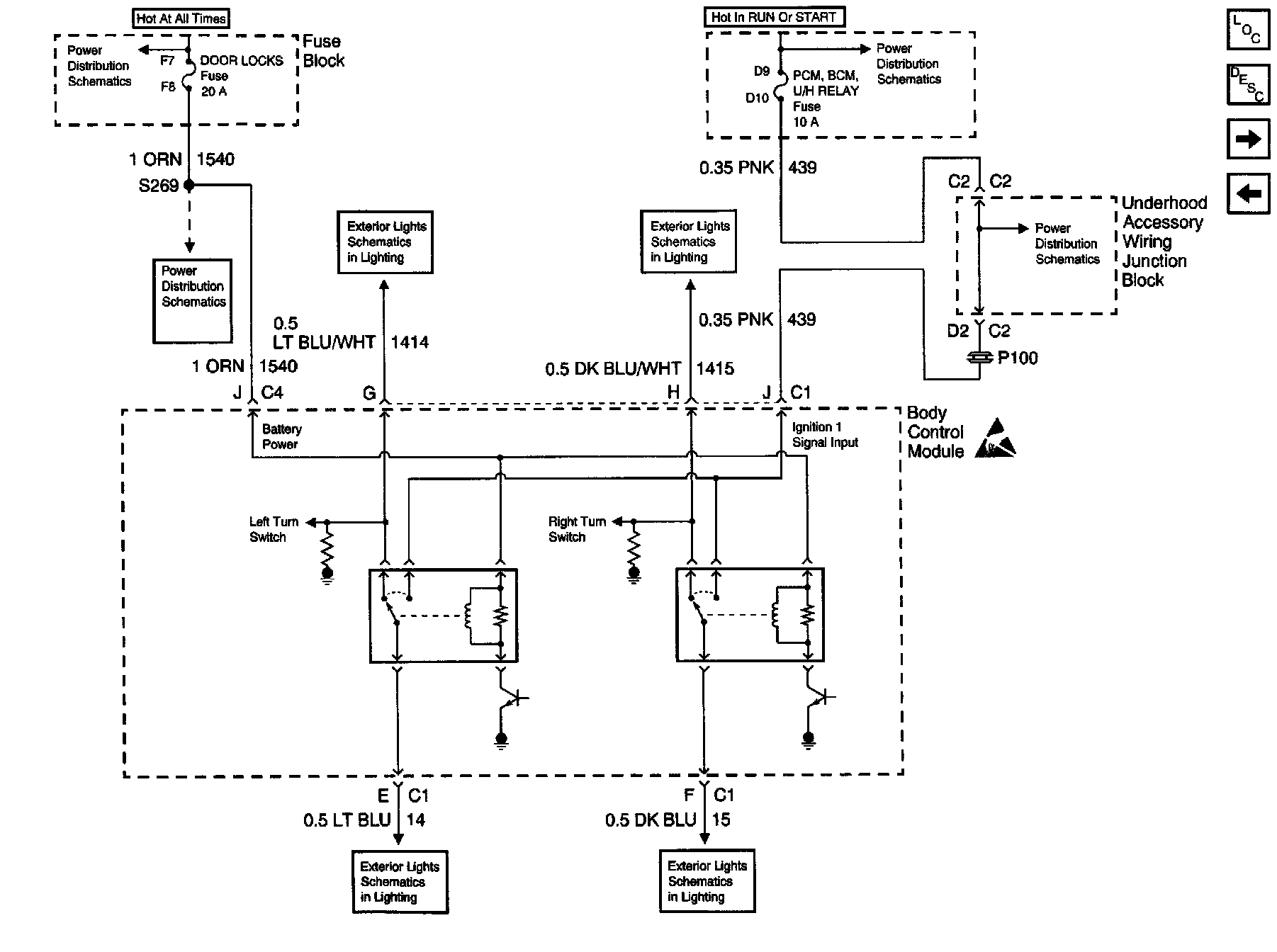

Body Control Module Schematics : Turn Signal Inputs:
