Ignition Control Module (ICM) Wiring Harness
Ignition Control Module (ICM) Wiring Harness

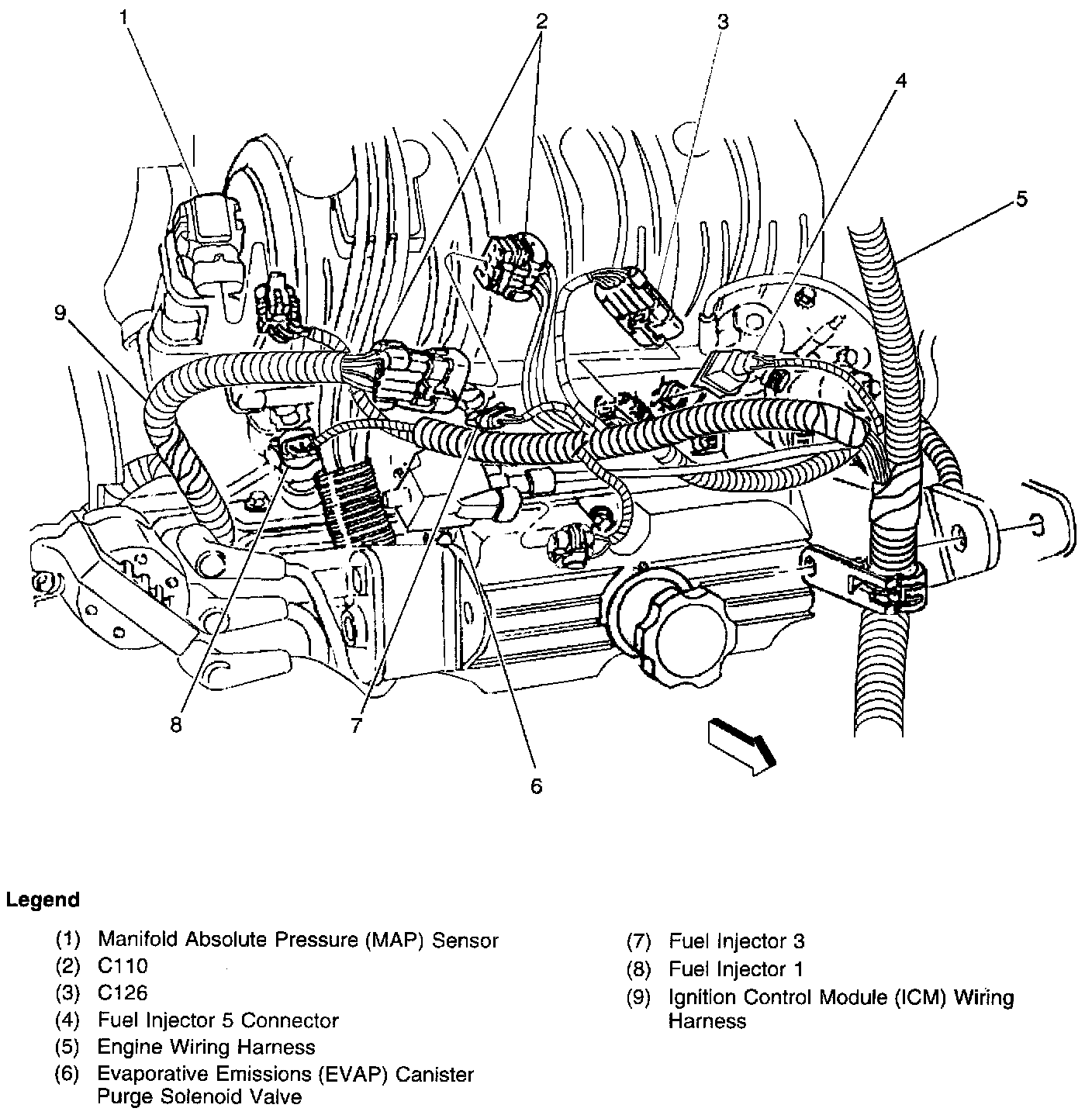

Locations View:

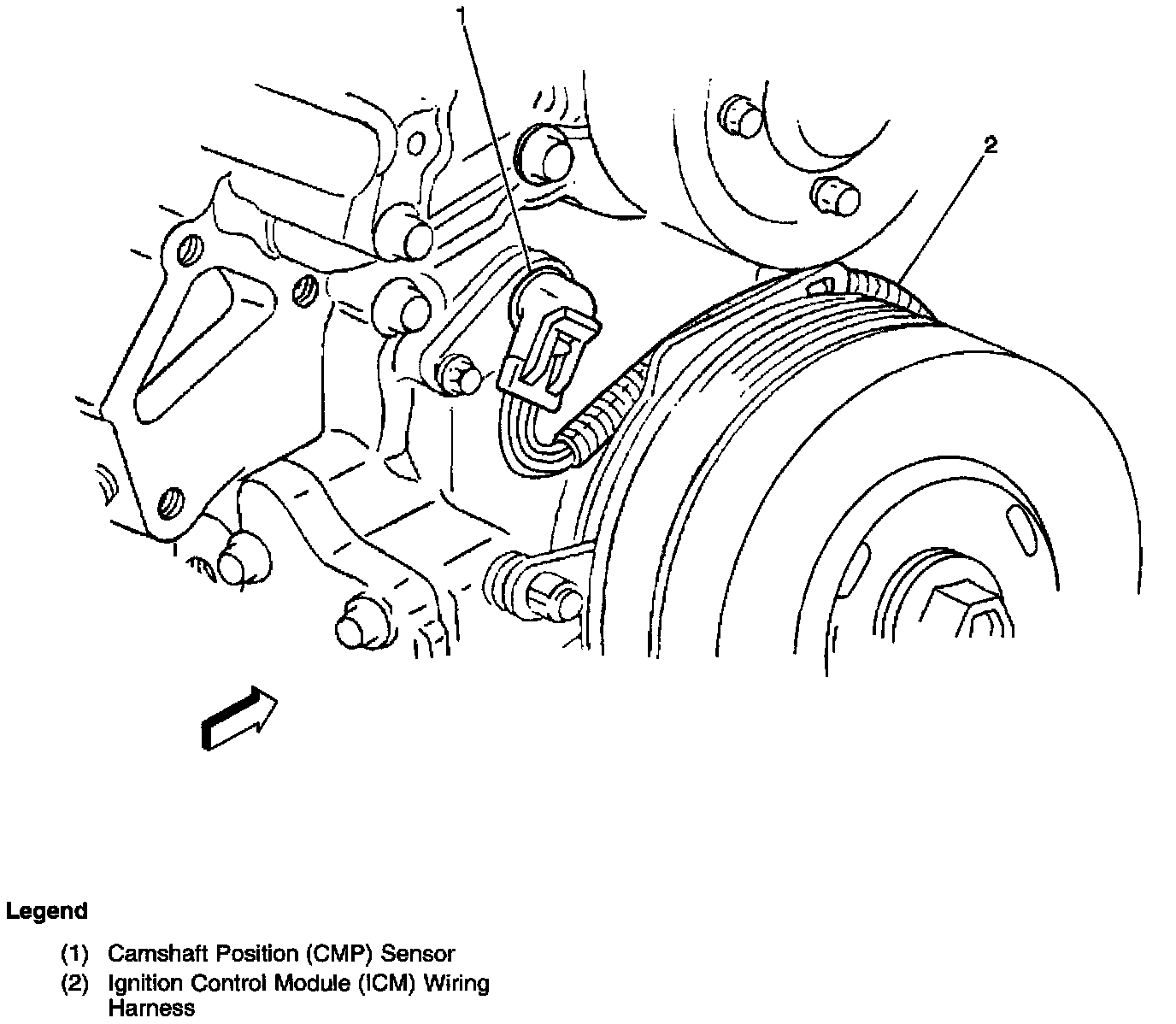

Locations View:
Locations View:
Locations View:
