lemon-mirror
:
Home
>>
Buick
>>
1990
>>
Regal V6-191 3.1L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
Computer Command Control - Port Fuel Injection
Computer Command Control - Port Fuel Injection

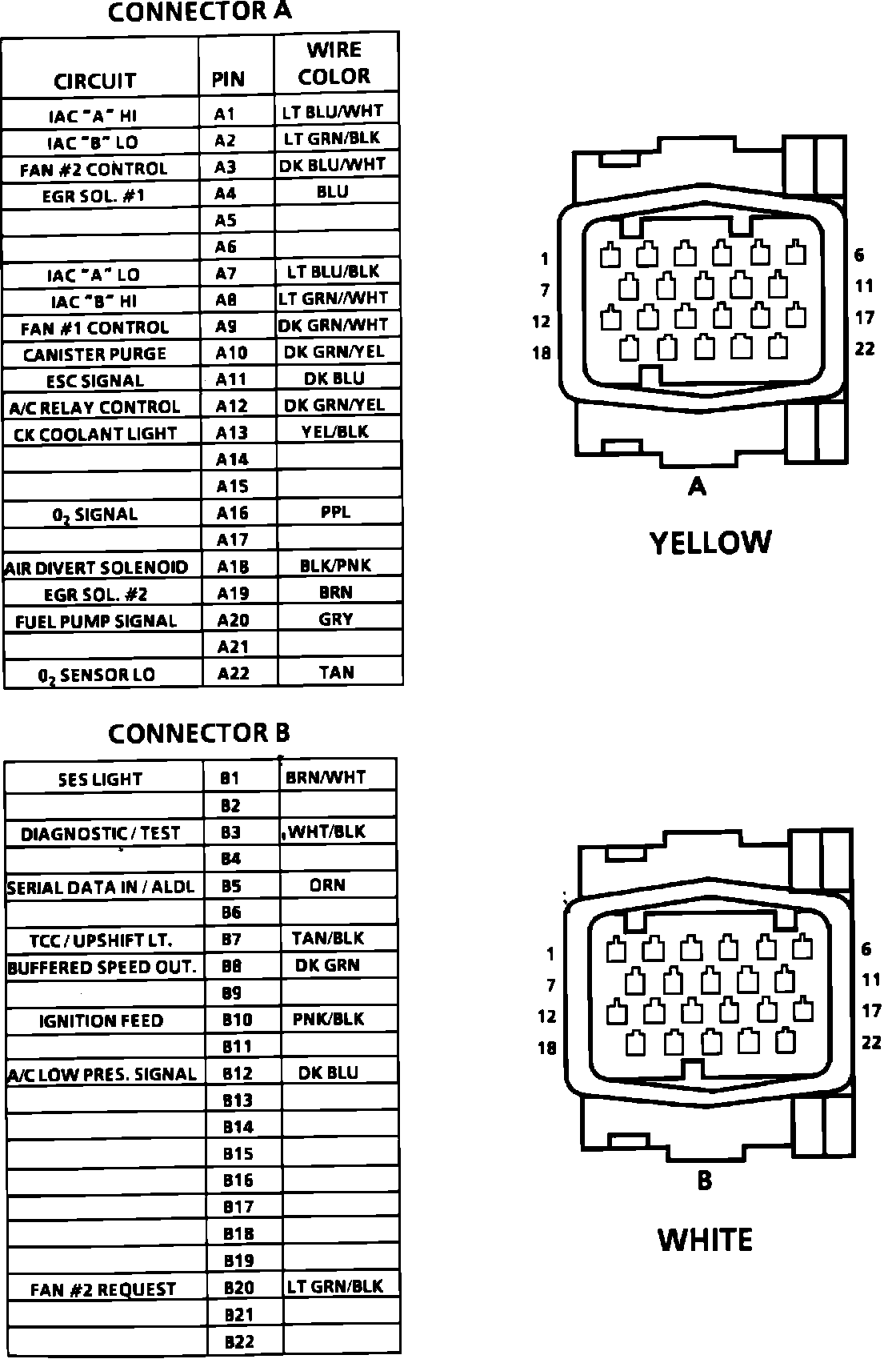

ECM Connector Terminal Identification (Part 1 Of 2):

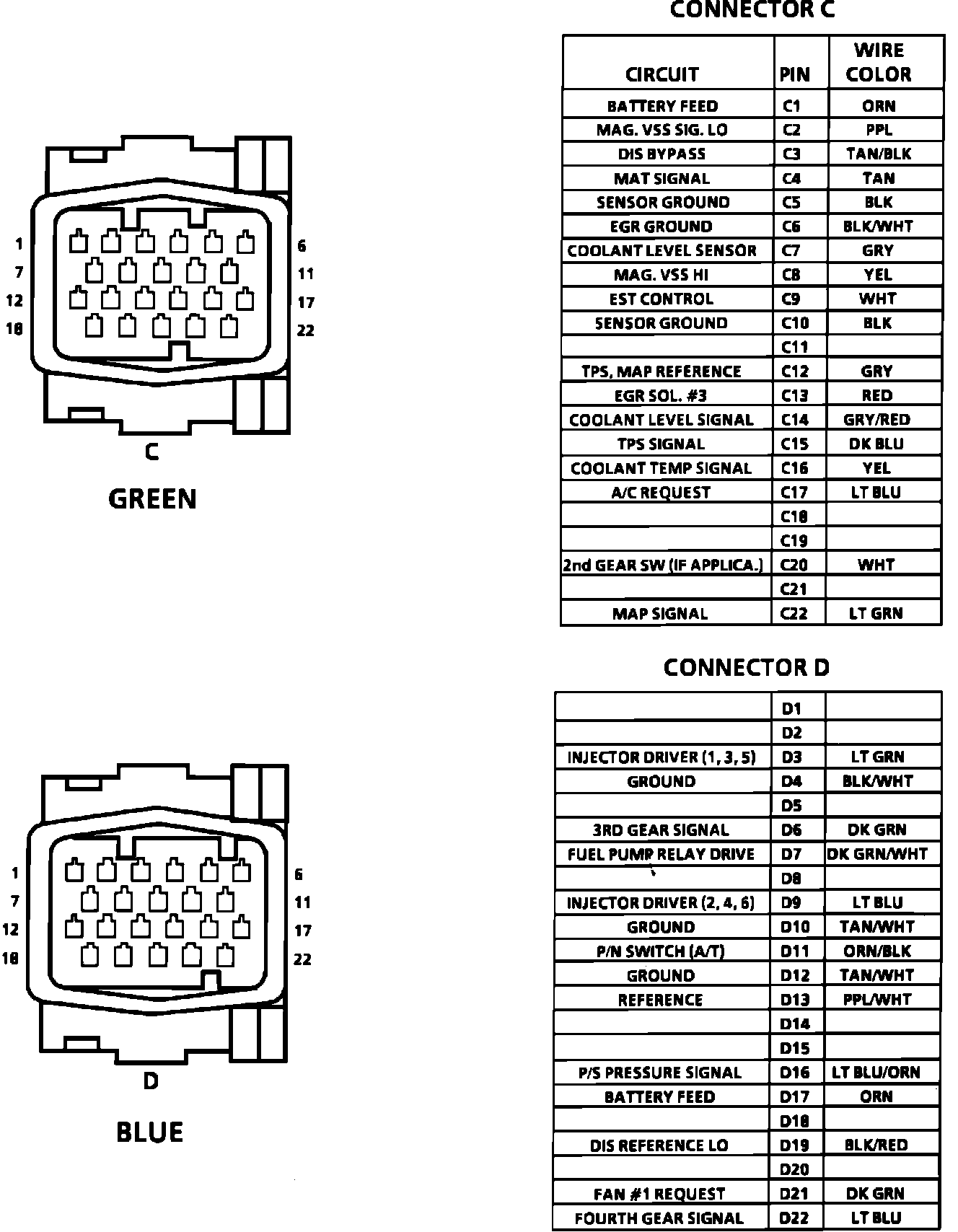

ECM Connector Terminal Identification (Part 2 Of 2):
