Home >> Buick >> 1984 >> Regal V6-252 4.1L >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Locations

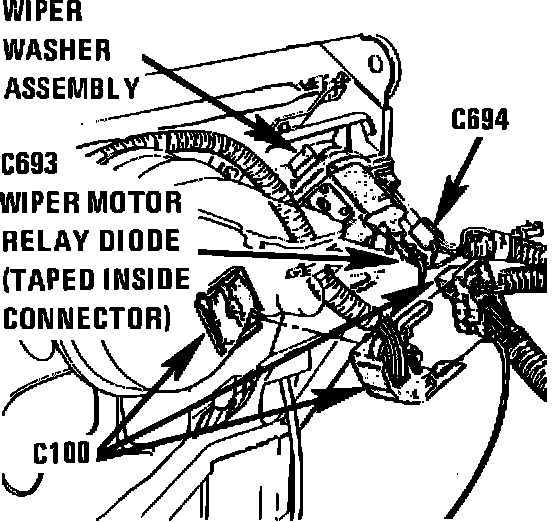

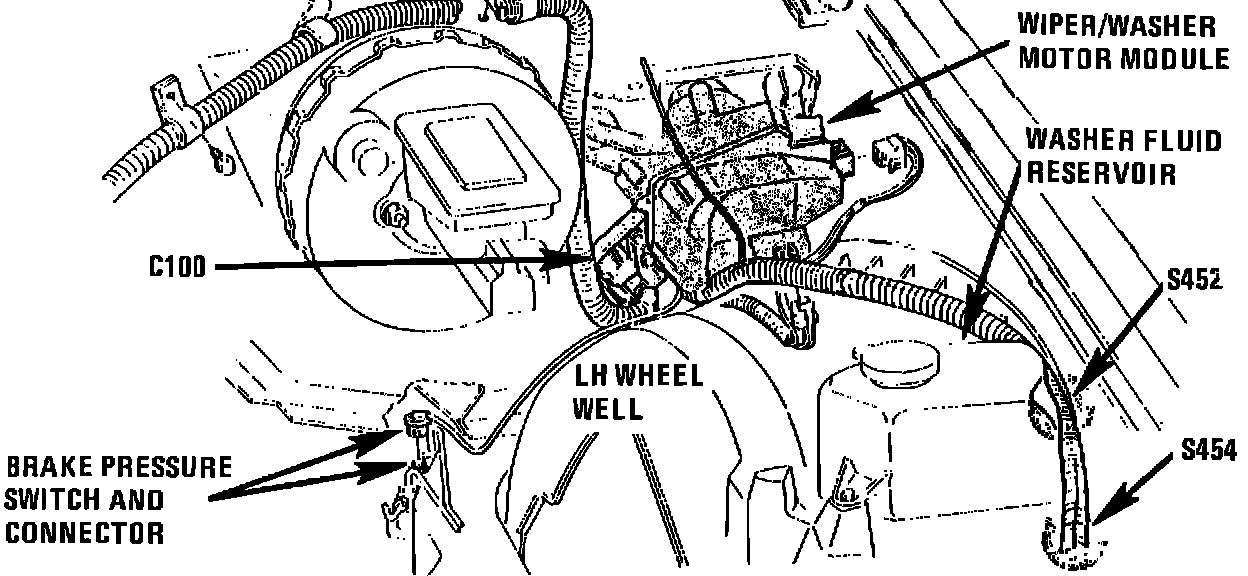

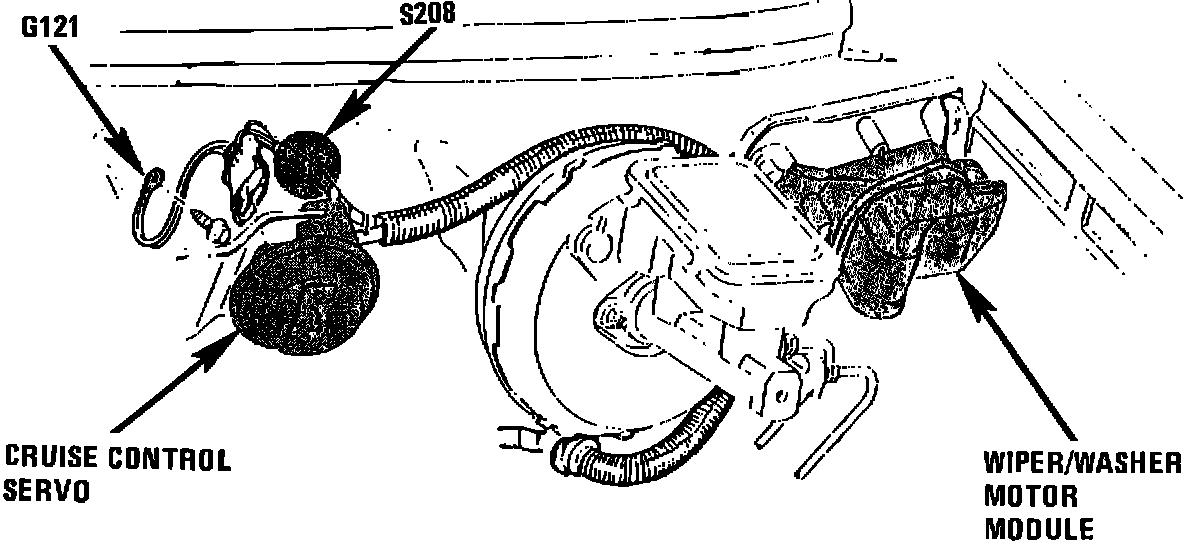

Wiper Control Module: Locations

LH Side Of Engine Cowl.:




On Engine Cowl, Near LH Corner

Applicable to: 1985 Regal

LH Rear Corner Of Engine Compartment.:




LH Side Of Engine Cowl.:




On Engine Cowl, Near LH Corner

Applicable to: Regal & 1981 Century
