Home >> Buick >> 1984 >> Regal V6-252 4.1L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations

Throttle Position Sensor: Locations

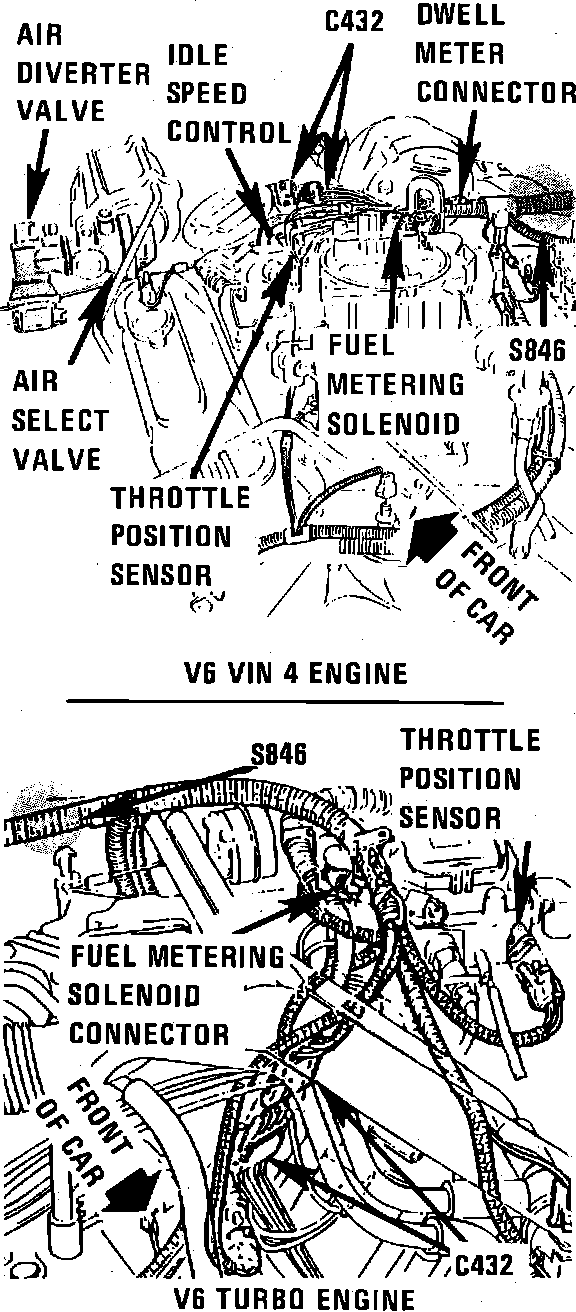

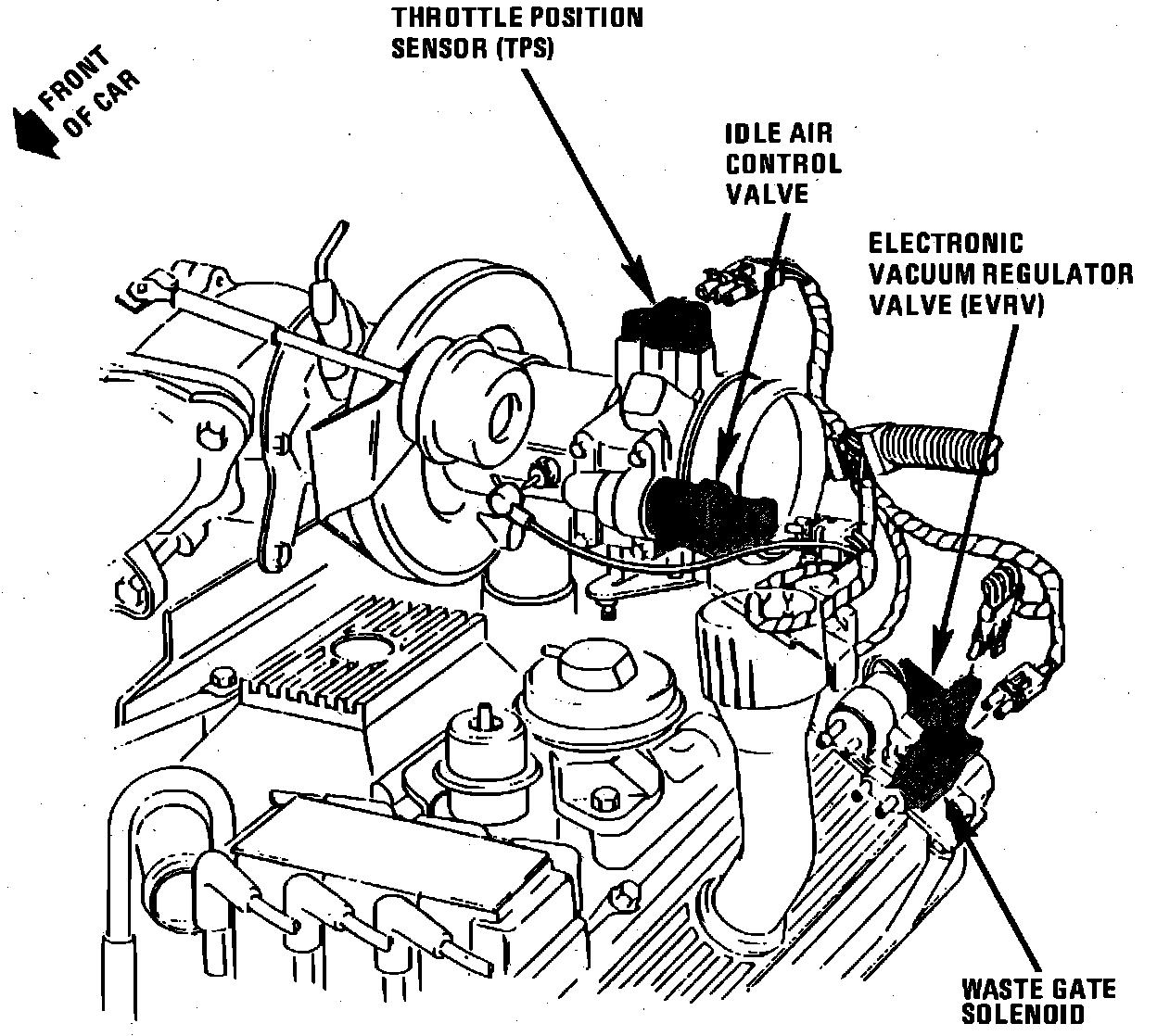

Top Rear Of V6 Turbo Engine.:




Rear Of Engine, Top Of Throttle Body

Applicable to: 1984 Regal

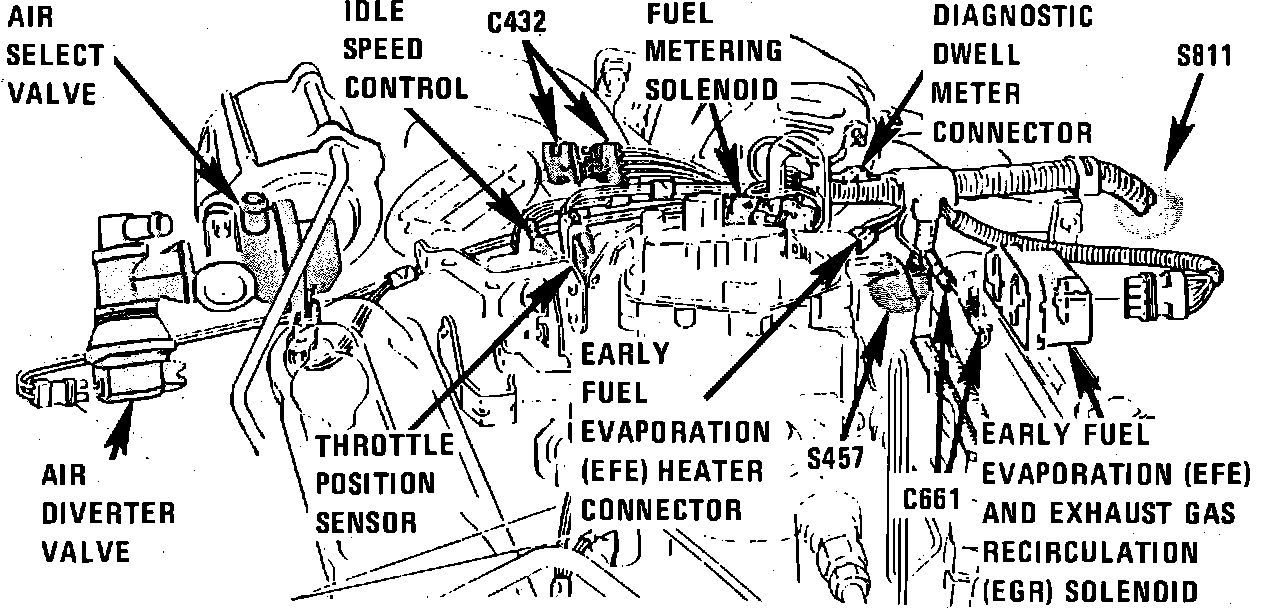

Top Of V6 Gasoline Engine.:




Top Of V6 Gasoline Engine.:




Rear Of Engine, Top Of Throttle Body

Applicable to: 1985 Regal
