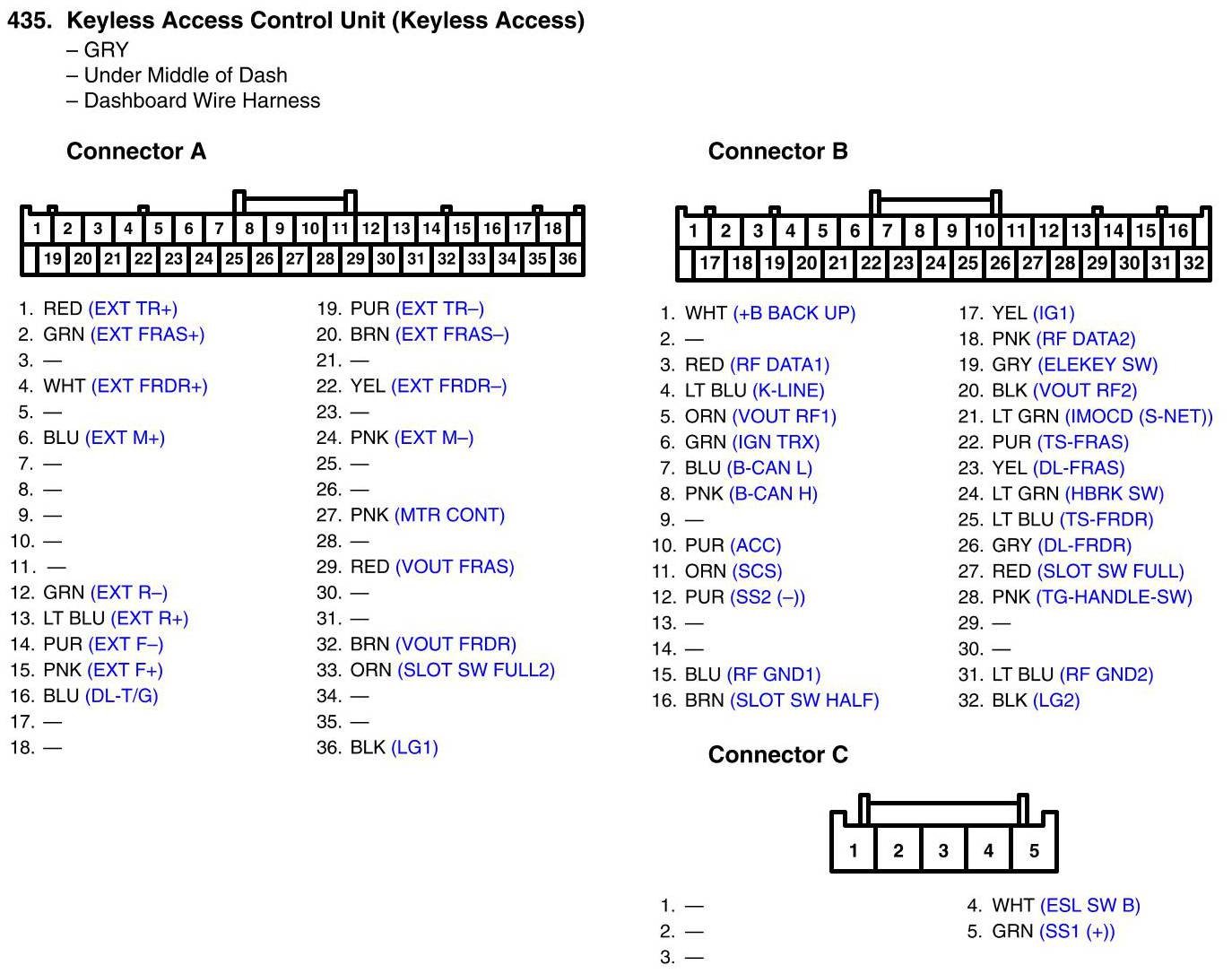

Keyless Access Control Unit Connector View (Keyless Access)
Keyless Access Control Unit Connector View (Keyless Access)
