Intake Manifold

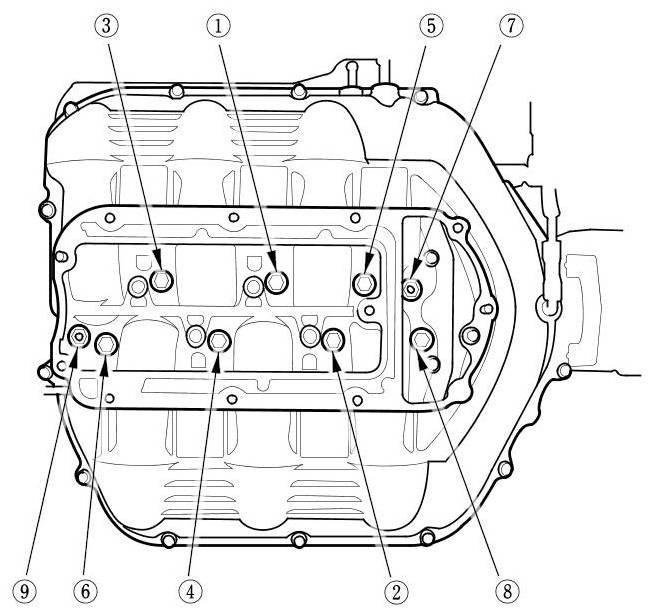

Intake Manifold Mounting Fasteners 22 Nm (2.2 kgf-m, 16 lbf-ft)
Tighten bolts and nuts sequentially in three steps





Injector Base Mounting Fasteners 22 Nm (2.2 kgf-m, 16 lbf-ft)
Tighten bolts/nuts (D) in a crisscross pattern in three steps, beginning with inner nuts
